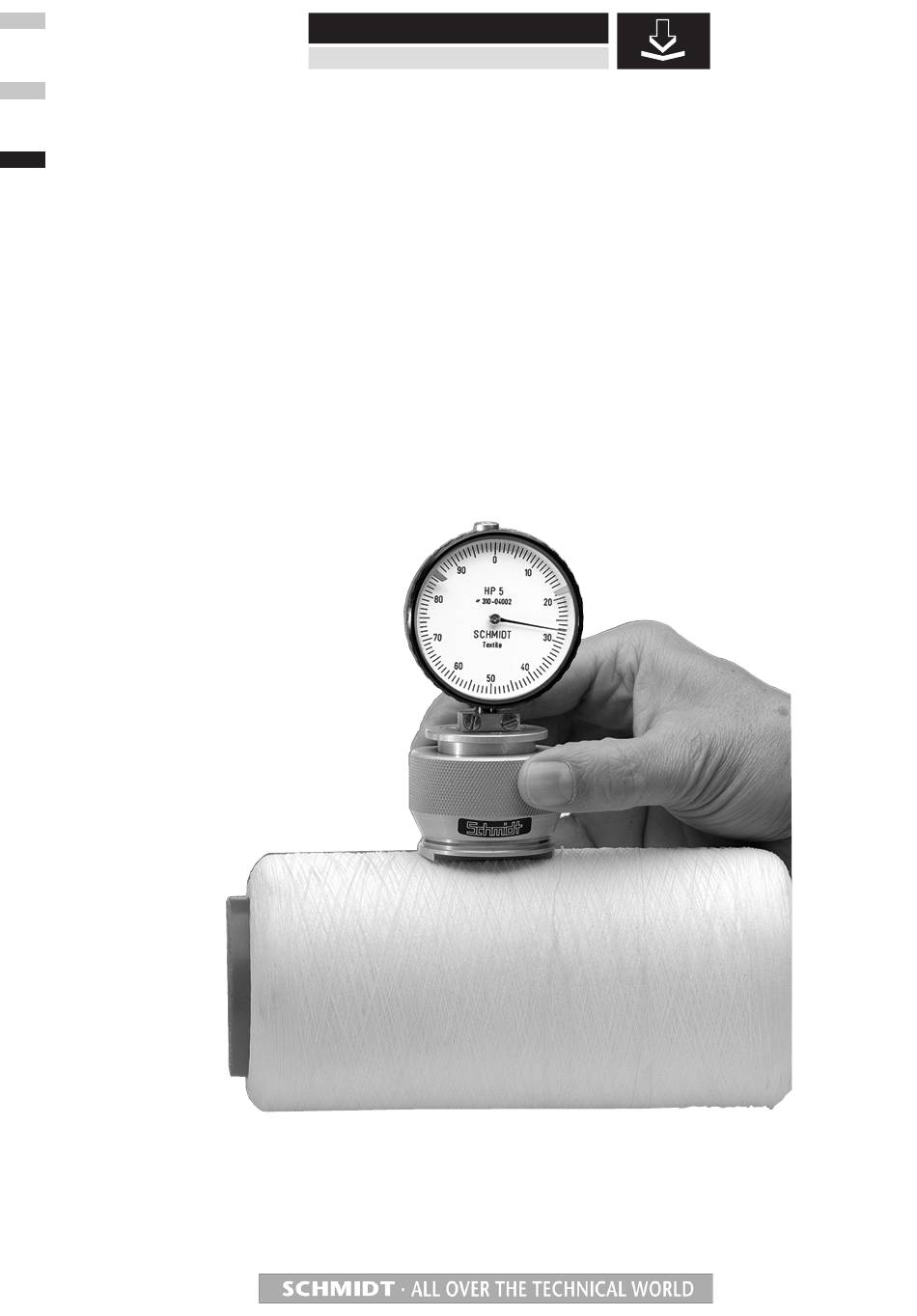

- Page 1 Durometer S C H M I D T c o n t r o l i n s t r u m e n t s Edition HP 05.3.E HP Series Model HP-2.5 Instruction Manual HP-5 HP-10 HP-2.5-F Valid as of: 01.02.2010 • Please keep the manual for future reference!
-
Page 2: Table Of Contents
Contents 1 Warranty and Liability ...................3 1.1 Notices within the Operating Instructions ............3 1.2 Responsibilities of the Operating Company .............3 1.3 Responsibilities of the Personnel ..............3 1.4 Informal Safety Measures.................4 1.5 Training of the Personnel .................4 1.6 Intended Use ....................4 1.7 Dangers in Handling the Device ...............4 1.8 Copyright ......................4 1.9 Declaration of Conformity .................4... -
Page 3: Warranty And Liability
Warranty: - SCHMIDT Durometers are warranted for 12 months. Parts subject to wear, electronic components and measuring springs are not covered by the warranty. No warranty or liability will be accepted for bodily injury or property damage resulting from one or several of the following causes: - Misuse or abuse of the device. -
Page 4: Informal Safety Measures
The device is intended exclusively to be used as a Durometer. Any other use or any use exceeding this intention will be regarded as misuse. Under no circumstances shall HANS SCHMIDT & Co GmbH be held liable for damage resulting from misuse. The intended use also includes: - Complying with all notices included in the Operating Instructions and observing all inspection and maintenance works. -
Page 5: Available Models
Available Models General information on textile durometers The principle used to measure the “firmness” or “hardness” of textile material is based on measuring the resistance force of the penetration of a ball sensor into a bobbin under a constant spring load. This principle is based on the Shore hardness test procedure. The display range of the textile durometers covers a range from 0 to 100 units, where 0 corresponds to the minimum and 100 to the maximum hardness value. -
Page 6: Delivery Includes
2.2 Delivery Includes Durometer Operating manual Specific Test Report 2.1 as per EN 10204 Carrying case 2.3 Unpacking Unpack the instrument and inspect it for any shipping damage. Notices of defect must be announced immediately, at the latest within 7 days on receipt of the goods. -
Page 7: Verification Of Calibration
Verification of Calibration You can test that the instrument is functional and undamaged by pressing the flat-bot- tomed models (“-F” models) against a smooth, level surface (such as glass or marble). When fully pressed down, the scale pointer should make one full turn on the scale, from zero to zero. -
Page 8: Verify Calibration Of Durometer Models: Hp-2.5-F, Hp-5-F And
3.3.2 Verify calibration of durometer models: HP-2.5-F, HP-5-F and HP-10-F (with flat base) - Press the durometer down on a glass plate (fig. 3.3.2). Do not move the spring-loaded outer shell. The scale pointer should make one full turn on the scale, from zero to zero. If the result of verification is positive, the durometer should show correct readings. -
Page 9: Optional Accessories
4 Optional Accessories Memory Pointer (Option Code M) The durometer is available with a memory pointer which can be ordered under option Memory pointer code M. The memory pointer moves with the scale pointer when a measurement is taken. However, when pressure on the outer shell is released, and the scale pointer returns to zero, the memory pointer remains in position, Knurled knob... -
Page 11: Service And Maintenance
7 Verification Intervals The question of finding the right frequency of calibration accuracy verification depends on several different factors: Operating time and load of the SCHMIDT hardness tester Tolerance band defined by the customer ... - Page 12 Yarn Package Durometer and Shore-A Durometer Sample Cutter Balance Moisture Meter Leak Tester Softometer More than 70 years - Worldwide - Hans Schmidt & Co GmbH Mailing address: Phone: e-mail: P. O. B. 1154 int. + 49 / (0)8638 / 9410-0 info@hans-schmidt.com...
