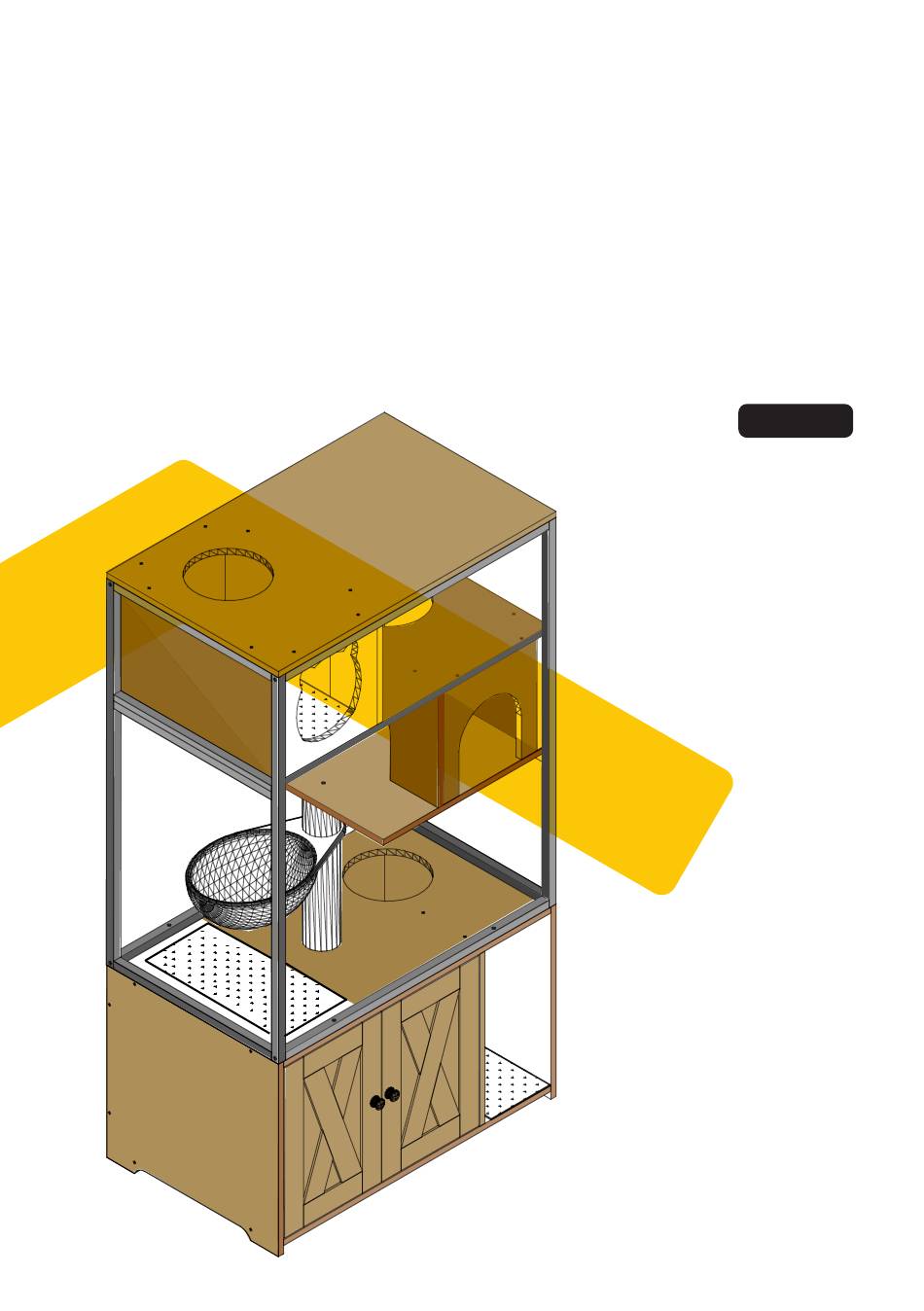

  • Page 1 INSTRUCTION MANUAL AIR 102...
  • Page 2 NOTICE Please retain these instructions for future reference. Firmly secure all bolts,screws and knobs before use. Reconfirm that all bolts,screws,and knobs are secure every 90 days. Fasten screws loosely during initial assembly. Do not fully tighten screws until the item is completely assembled. Do not use or store this item in the proximity of open flame or flammable/combustible chemicals.

  • Page 3: Tools Required

    TOOLS REQUIRED PHILLIPS DRILL 2PERSON APPROXIMATELY SCREWDRIVER (RECOMMENDED) ASSEMBLY 60MIN. ASSEMBLY HARDWARE M4.0x40mm Screw M5.0x30mm Bolt 22PCS+2spare 52PCS+2spare Expansion screw Rope 2PCS 2PCS Door roller Bolt 2PCS 4PCS Magnetic match Doorknob 2PCS (8pcs) (2pcs) (2pcs)
  • Page 4 HARDWARE Rubber mat Bung 4PCS 36PCS+2spare Iron bar...
  • Page 5 PARTS Bottom panel-bottom part Back panel-bottom part Left side panel-bottom part Divider panel-bottom part Right side panel-bottom Upper panel-bottom part part Left metal frame Right side door Left side door...
  • Page 6 PARTS Lower metal frame Upper metal frame Right metal frame 2PCS 2PCS Pillar Hammock Middle panel Large arch Side panel-middle part Back panel-middle part 2PCS 2PCS 2PCS...
  • Page 7 PARTS Front panel- top part Bottom panel- top part Small arch Top panel- top part 2PCS...

  • Page 8: Product Assembly

    PRODUCT ASSEMBLY ①  ，C2 by 2xP9 screws on each side. Screw the rubber mat to Part C1 ②  There are pre-drilled holes on the bottom. Insert 16xP10 bung to the pre-drilled holes on Part A and C1,C2. P.S. Bung is insert to the bigger hole, the smaller hole is for screws.
  • Page 9 PRODUCT ASSEMBLY ①  Attach Part A, B, and C1,C2 by 8xP2 screws. ②  P.S. Please loosen the screws a little so the Part E will attach easily on the following steps. Screw 2xP2 from the bottom of Part A.
  • Page 10 PRODUCT ASSEMBLY Attach Part D to Part A by 2xP2 from the bottom. Insert 4xP10 bung to the pre-drilled holes on Part E. P.S. Bung is insert to the bigger hole, the smaller hole is for screws.
  • Page 11 PRODUCT ASSEMBLY Attach Part E by 8xP2 screws. Attach 2xP8 to Part E (There are pre-drilled holes on Part E)
  • Page 12 PRODUCT ASSEMBLY ① Attach P7 to Part F & G. ② Attach 2xP8 to the back side of Part F & G (There are pre-drilled holes on Part F & G)
  • Page 13 PRODUCT ASSEMBLY Press down 4xP5 to the door corner.
  • Page 14 PRODUCT ASSEMBLY Attach Part H, I, J and K by 8xP2 bolts. Connect the metal frame with the bottom part by 4xP1 bolts on Part E.
  • Page 15 PRODUCT ASSEMBLY ① Connect Part L & M together by 1xP11. ② Attach the hammock by 2xP6 bolts. P 11...
  • Page 16 PRODUCT ASSEMBLY ① Insert 2xP10 bung to the pre-drilled holes on Part N. ② Attach Part P by 2xP2 screws. P 10 Attach Part O to Part N by 2xP2 screws from the bottom.
  • Page 17 PRODUCT ASSEMBLY ① Insert 2xP10 bung to the pre-drilled holes on Part N. ② Attach Part Q to Part N by 2xP2 screws from the bottom. P 10 ① Attach Part R to Part N by 2xP2 screws from the bottom. ②...
  • Page 18 PRODUCT ASSEMBLY Attach Part S by 8xP2 screws. Insert 4xP10 bung to the pre-drilled holes on Part S. P 10...
  • Page 19 PRODUCT ASSEMBLY Attach side panel Part P to Part S by 2xP2 screws from the bottom. Attach Part O & Q to Part S by 4xP2 screws from the bottom.
  • Page 20 PRODUCT ASSEMBLY Attach Part T to Part S by 2xP2 screws from the bottom. Put Part U on the bottom part and the middle part.
  • Page 21 PRODUCT ASSEMBLY ① Insert 4xP10 bung to the pre-drilled holes on Part V from the bottom. ② Attach Part V by 8xP2 screws. P 10...
  • Page 22 PRODUCT ASSEMBLY Fix the Part S & V by 4xP1 screws. Fix the Part S, V and N by 6xP1 screws on the other side.
  • Page 23 PRODUCT ASSEMBLY Fix on the wall using 2xP4 rope by 2xP3 screws if need. Finish...
  • Page 24 WARNING Manufacturer and seller expressly disclaim any and all liability for personal injury,property damage or loss,whether direct,indirect,or incidental,resulting from the incorrect attachment,improper use,inadequate miantenance,or neglect of this product.
