- Page 1 POWER & CONTROL CONNECT CONTROLLER INC1LED Connect Essential Thermostat Operating manual ......2 WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov Form No. 4445104362 3317885.000 2024-05-28...
-
Page 2: Table Of Contents
Related documents Connect Essential Thermostat Service center and dealer locations Find the operation Visit: www.dometic.com manual on-line in Please read these instructions carefully and follow all instructions, guidelines, and warnings included in Spanish at this product manual in order to ensure that you install, http://qr.dometic. -
Page 3: Intended Use
– CSA C22.1, Parts l & ll, Canadian Electrical • Use for purposes other than those described Code in this manual – CSA Z240 RV Series, Recreational Dometic reserves the right to change product Vehicles appearance and product specifications. 2.4 General safety messages 4 Technical data... -
Page 4: Operation

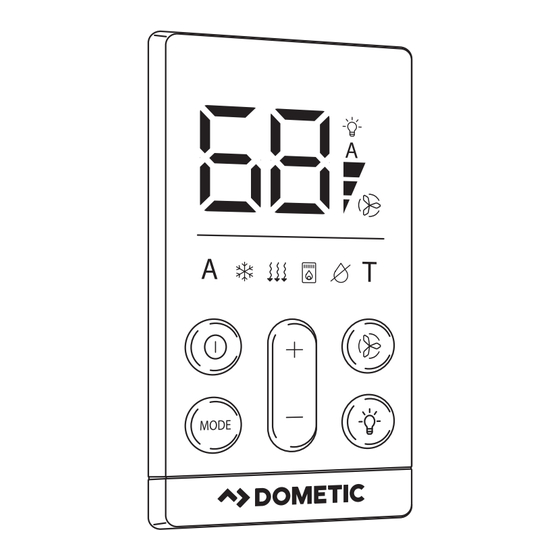

(if equipped) and the light on the interior of the air distribution box (ADB) or return INC1LED dimensions air grille (RAG) (if equipped). 4.8 in. (12 cm) 2.9 in. (7 cm) Mode Toggles between... - Page 5 Connect Essential Thermostat Operation 5.2.6 Selecting the mode Icon Name Function 1. Press and release the Mode button to cycle Cool Indicates the Cool through and select one of the following mode mode is active when modes: Auto, Cool, Ventilation (Fan Only), illuminated Heat, Dry, or Turbo.
- Page 6 Operation Connect Essential Thermostat 5.3 Understanding the mode options • Turbo: the fan operates continuously at maximum speed. The compressor cycles on This section explains the available mode and off. options. • Auto: the compressor and the fan cycle on 5.3.1 Auto mode and off.
-
Page 7: System Configuration
Connect Essential Thermostat System configuration • The fan will operate at maximum speed when • The compressor cycles on and off at the room temperature is above the setpoint approximate intervals of six minutes to extract temperature by more than 8 °F ±0.5 °F (5 °C moisture from the air while not changing ±0.3 °C). -
Page 8: Maintenance
Maintenance Connect Essential Thermostat 6.2.1 Checking the current configu- ration 1. Confirm the thermostat and AC are off. 2. Simultaneously press and hold the Mode button and the ( – ) button for three seconds. The LED display will show the ‘d1’, ‘d9’ selection that is stored in memory. -
Page 9: Error Codes
Connect Essential Thermostat Error codes 8 Error codes The following table describes error codes that may display under certain conditions for the active zone. Error Definition Recommended solution code There is a loss of communication Once the E1 error is displayed, no functions will be between the thermostat and the available except for the On/Off power button. -
Page 10: Troubleshooting
For a more permanent solution to high heat gain, accessories like the Dometic outdoor patio or window awnings reduce the effects of direct sunlight. During normal operation, this product is designed to remove a certain amount of moisture from the air, depending on the size of the space being conditioned. -
Page 11: Disposal
The underlying technical design and the products contained herein may be protected by design, patent or be patent pending. The trademarks mentioned in this manual belong to Dometic Sweden AB. All rights are reserved. - Page 12 YOUR LOCAL YOUR LOCAL YOUR LOCAL DEALER SUPPORT SALES OFFICE dometic.com/dealer dometic.com/contact dometic.com/sales-offices...
