LECTUS secure
Notice!
i
When mounting on or near metal, use a wall mount box to ensure an optimal read
performance.
Notice!
i
Use the supplied screws to ensure the correct fitting and to avoid damaging the reader or
the mounting plate.
To mount the reader:
1.
2.
3.
4.
5.
Bosch Security Systems B.V.
Determine an appropriate mounting position for the reader.

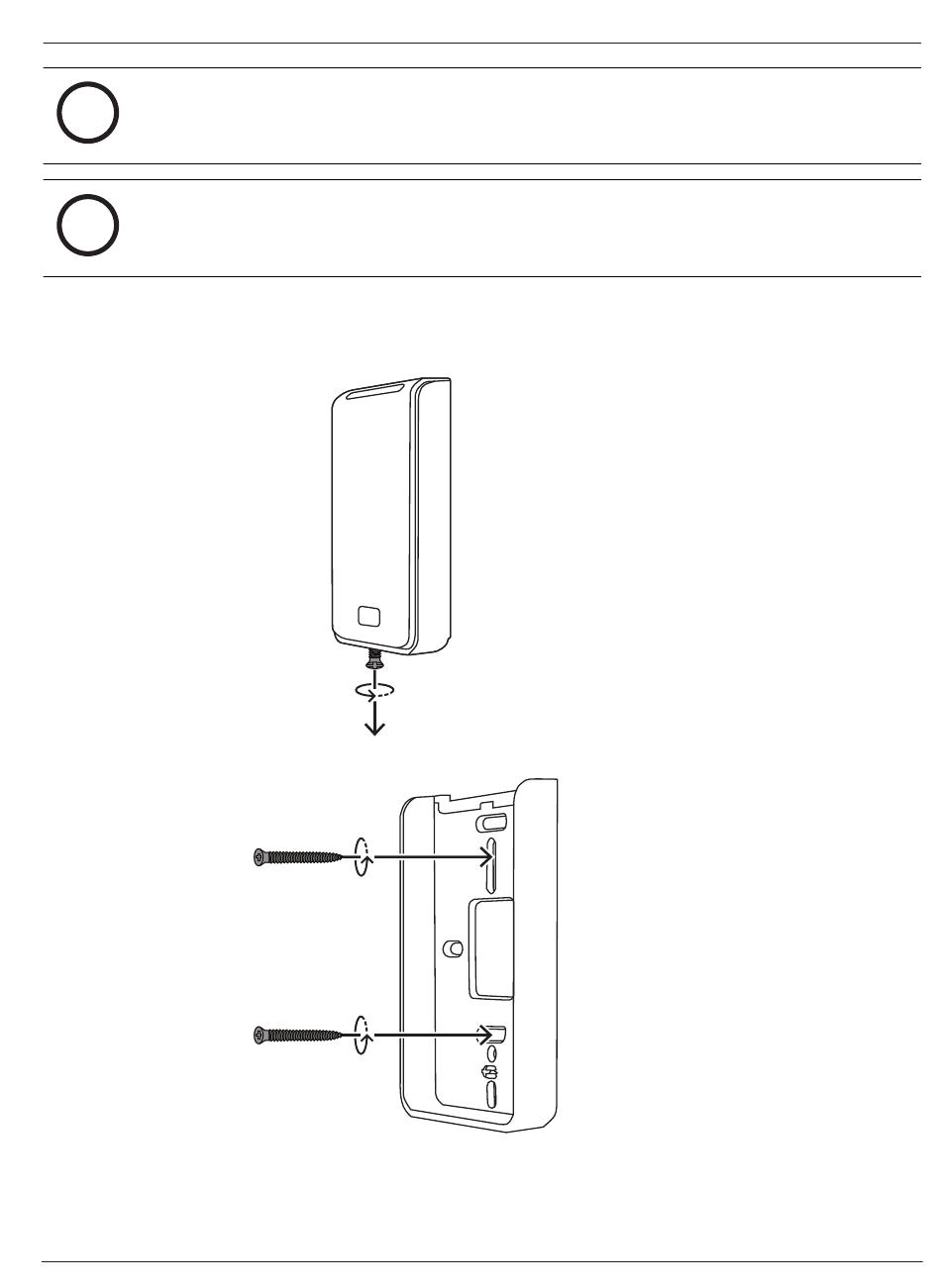

Unscrew the top cover. The screw is located at the bottom of the reader.
Use the supplied appropriate screws and drill the holes to mount the plate.
Plug in the terminals that were prepared in Assembly preparation, page 9.
Hook the upper part of the reader on the top of the mounting plate. Push the bottom of
the reader to the wall until it is inside the mounting plate.
