curt 59236-CW1121 Installation Manual

INSTALLATION MANUAL
Level of Difficulty
Moderate to hard (based on vehicle)
Electrical Ratings
Signal circuits 5.0-amps per side
Tail / Running Circuits 7.5-amps total
Check vehicle owner's manual or contact
the vehicle manufacturer for more information.
Wiring Location(s)
See page 2 for wiring location guide
Tools Required
Test light Utility knife
Electrical tape Wire crimper
Paper Wire stripper
Pen --
Testing Procedure
If testing with a test light, attach the ground
lead of the tester to the exposed ground
terminal of the 4-flat end. Activate the tow
vehicle left turn, right turn, tail and brake
lights one at a time. Probe the three
receptacles of the 4-flat end to confirm
proper functionality.
If testing with a trailer, mate the 4-flat with
the trailer and run the same test as the circuit
tester using the trailer lights. If a function
on the trailer lights does not work properly,
disconnect the trailer 4-flat, turn functions
on the vehicle off and recheck function
with a circuit tester. If functionality is good,
check the trailer for potential problems.
The short circuit, overload and thermal
protection of the taillight converter may
cause the trailer lamps to pulse on briefly
every two seconds. If this pulsing is seen
when testing with a trailer, this is an
indication that the lamp circuits exceed
the ratings of the product or there is a
wiring issue with the trailer.
Product Registration and Warranty
CURT Group stands behind our products
with industry-leading warranties. Provide
feedback and help us to improve our
products by registering your purchase at:
warranty.curtgroup.com/surveys
59236-INS-RE • PAGE 1
WARNING
Do not exceed product rating or tow vehicle lamp load rating, whichever is lower.
The battery connection must be fuse-protected, 15-amp max. Exceeding
the product rating can cause loss of warranty, overheating and potential fire.
Check for miscellaneous items that may be hidden behind or under
any surface before drilling to avoid damage and / or personal injury.

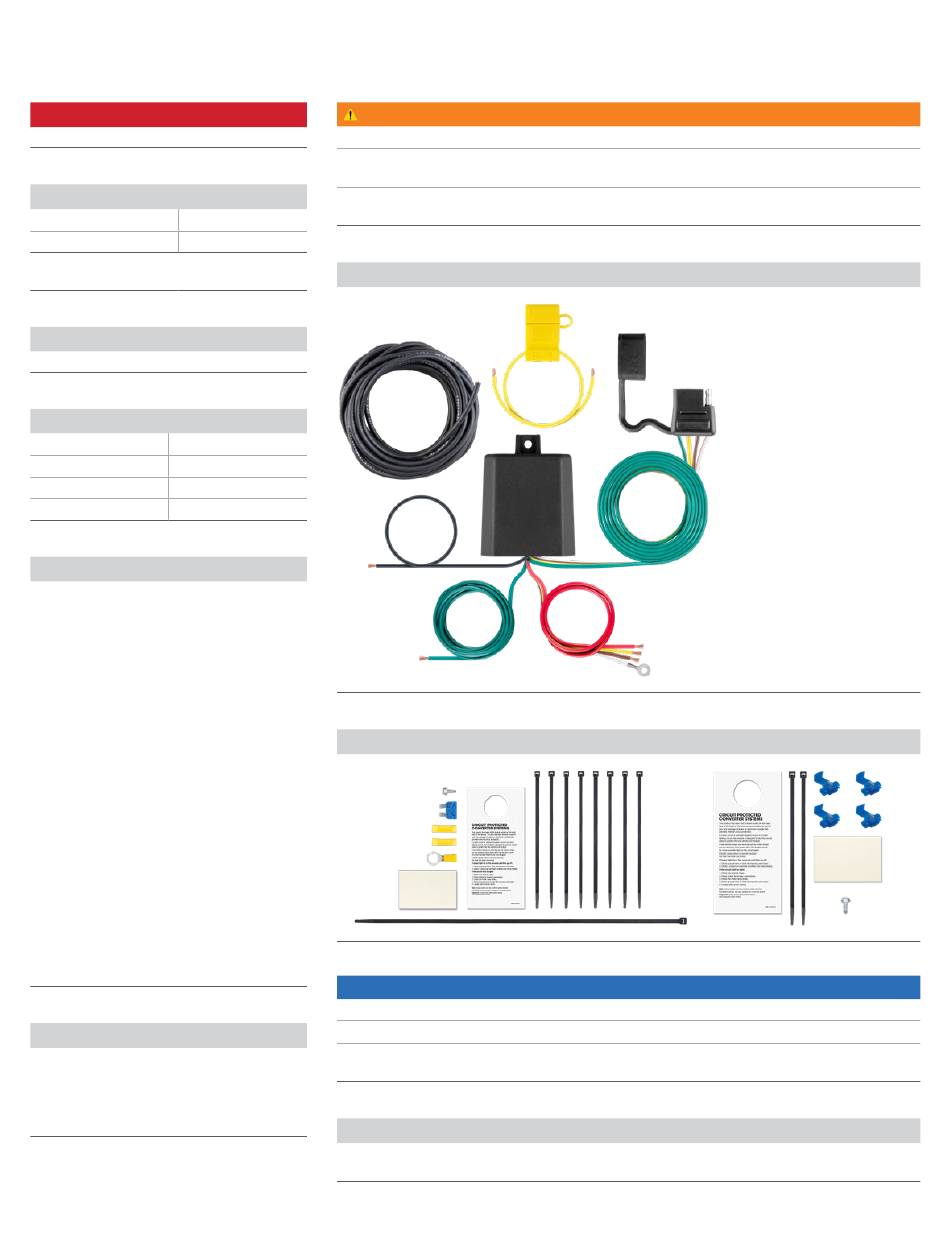

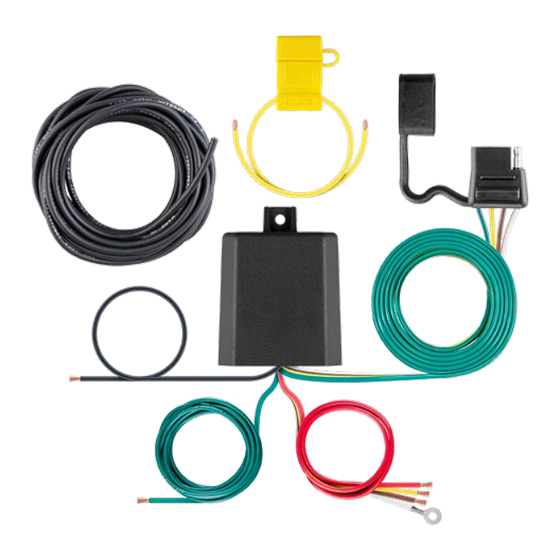

Product Photo
Hardware Photo
NOTICE
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
All steps must be followed to ensure the product will function properly. Once installed,
test for proper function by using a test light or connecting a properly wired trailer.
Maintenance
Periodic inspection of all wires and connections should be performed
to ensure there is no visible damage or loose connections.
