curt 57009 Installation Manual

INSTALLATION MANUAL
Level of Difficulty
Easy
Installation difficulty levels are based on time
and effort involved and may vary depending on
the installer level of expertise, condition of the
vehicle and proper tools and equipment.
Parts List
Item Qty Description
1 1 Repeater
2 1 Repeater mounting plate
3 1 Stem sensor tool
4 4 Stem sensors*
5 1 Lock nut wrench
6 4 Stem sensor 0-rings
7 4 Lock nuts for tire stems
8 1 USB charging cable
9 1 Pigtail charging cable
10 1 120V wall charger
11 4 Mounting screws
*Additional sensors can be
purchased (CURT part# 57011)
Tools Required
OneControl Auto app Wire stripper
®
Cordless / electric Appropriate
drill or screw gun electrical connectors
T-10 drive bit --
Product Registration and Warranty
CURT stands behind our products with
industry-leading warranties. To get
copies of the product warranties, register
your purchase or provide feedback,
visit: curtmfg.com/registration
CURTMFG.COM
• PRODUCT SUPPORT: 877.287.8634
WARNING
Failure to correctly follow the provided instructions may result in death, serious personal injury,
severe product and / or property damage, including voiding of the CURT limited warranty.
Only use the adapter supplied with this product. Use of unauthorized
adapter may cause fire, serious injury or product and property damage
Product contains lithium rechargeable battery. Do not dispose in trash.
Recycle or return to authorized dealer for disposal. Do not incinerate.
Only charge when temperature is between 50°F - 113°F (10°C - 45°C). Do not
operate charger if cord is damaged. Do not use if repeater is cracked or leaking.

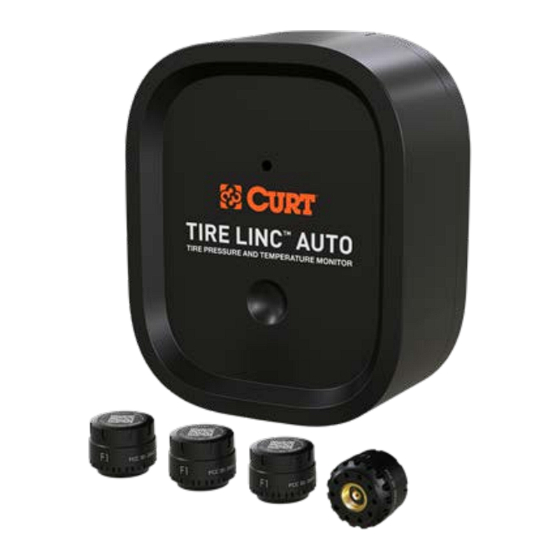

Product Photo
NOTICE
Visit www.curtmfg.com/part/57009 for a full-color copy of this
instruction manual, as well as helpful videos, guides and much more!
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
Images used in this document are for reference only when assembling,
installing and / or operating this product. Actual appearance
of provided and/or purchased parts and assemblies may differ.
The app is available on Apple App Store
and iPad and also on Google Play
®
Apple App Store , iPhone , and iPad
® ®
Apple Inc. Google Play and Android
™
Periodic inspection of the trailer hitch system should be performed to ensure
all mounting hardware remains tight and structural components are secure.
SAFETY INSTRUCTIONS
Safety glasses should be worn at all times while installing this product.
• 57009-INS-RA • 04/24/2023
for iPhone
® ®
for Android users.
™ ™
are registered trademarks of
®
are trademarks of Google Inc.
™
• CCD-0007417 • ECN10754 •
57009
PAGE 1
