YEARS: 2012-PRESENT
MAKE:
WARNING: NEVER EXCEED YOUR VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY
WEIGHT CARRYING:
INSTALLATION TIME:
THE
INSTALL TIME LISTED IS FOR PROFESSIONAL
INSTALLERS. IF YOU ARE HESITANT TO UNDERTAKE
THIS TASK ON YOUR OWN, CONTACT AN AUTHORIZED
CURT INSTALLER FOR ADDITIONAL ASSISTANCE.
INSTALLATION REQUIRES:
TORQUE
RATCHET
WRENCH
10mm
13mm
10"
SOCKET
SOCKET
EXTENSION
TAPE
MASKING
MEASURE
TAPE
SILICONE
CUT-OFF
CAULK
WHEEL
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE ALL FASTENERS ARE TIGHT AND ALL STRUCTURAL COMPONENTS ARE SOUND
CURT Manufacturing LLC. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, Curt Manufacturing LLC. may repair or replace
the product at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of this product voids the warranty. Curt Manufacturing LLC.'s liability is limited to repair or replacement
of products found to be defective, and specifically excludes liability for incidental or consequential loss or damage.
For more information log onto www.curtmfg.com, & for helpful towing tips log onto www.hitchinfo.com
11232

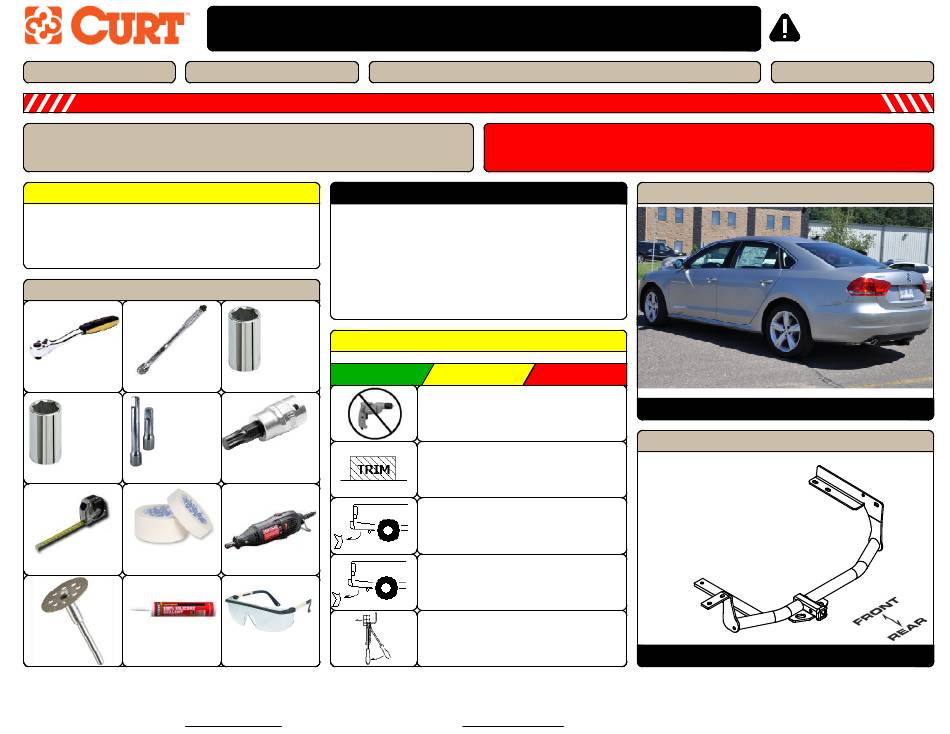

INSTALLATION INSTRUCTIONS
MODEL: PASSAT (GASOLINE) EXCEPT 3.6L W/ DUEL EXHAUST
VOLKSWAGEN
TRAILER WEIGHT:
LBS.
2,000
TONGUE WEIGHT:
200
LBS.
45
MIN.
INSTALLATION TIPS:
1. BEFORE YOU BEGIN INSTALLATION, READ ALL
INSTRUCTIONS THOROUGHLY.
2. TO EASE INSTALLATION, 2 PEOPLE MAY BE
REQUIRED.
3. USING PROPER TOOLS WILL GREATLY IMPROVE
THE QUALITY OF THE INSTALL AND REDUCE THE
TIME REQUIRED.
4. NEED HELP OR HAVE SOME QUESTIONS?
CALL TECHNICAL SUPPORT AT 800.798.0813
3/4"
11/16"
LEVEL OF DIFFICULTY:
EASY
SOCKET
TORXBIT
25
SOCKET
PART REMOVAL
ROTARY TOOL
PART REMOVAL
SAFETY
GLASSES
WARNING:
WE RECOMMEND THE USE OF 18050 STABILIZING STRAPS FOR ALL NON-TRAILER
(WHEEL-LESS) LOADS. PLEASE SEE THE CURT CATALOG OR VISIT US ONLINE AT
WWW.CURTMFG.COM FOR FURTHER INFORMATION.
MODERATE
MODERATE
CHALLENGING
- NO DRILLING REQUIRED
- UNDERBODY PANEL
TRIMMING REQUIRED
- REMOVE DRAIN PLUG
- TEMPORARILY REMOVE
SPARE TIRE
- LOWER EXHAUST
Safety glasses should be
worn at all times while
installing this product .
STYLE:
VEHICLE PHOTO:
REPRESENTATIVE PHOTO

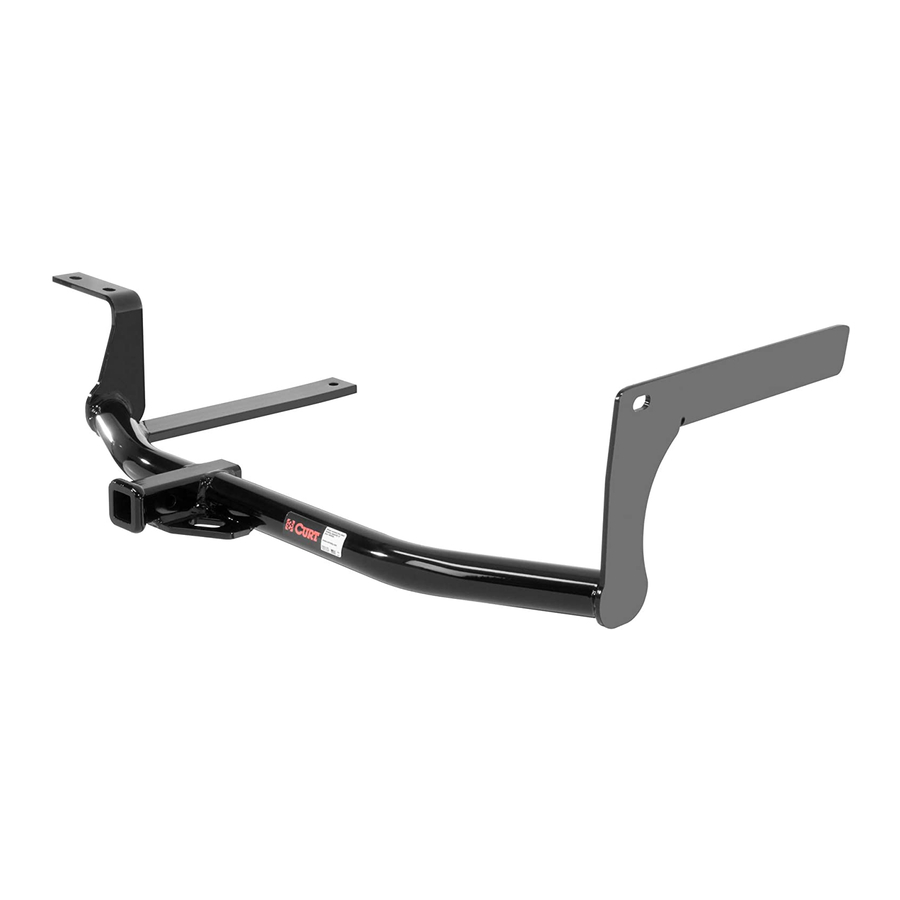

HITCH ILLUSTRATION:
MAKE SURE YOUR HITCH MATCHES
SEDAN
11/26/2012
