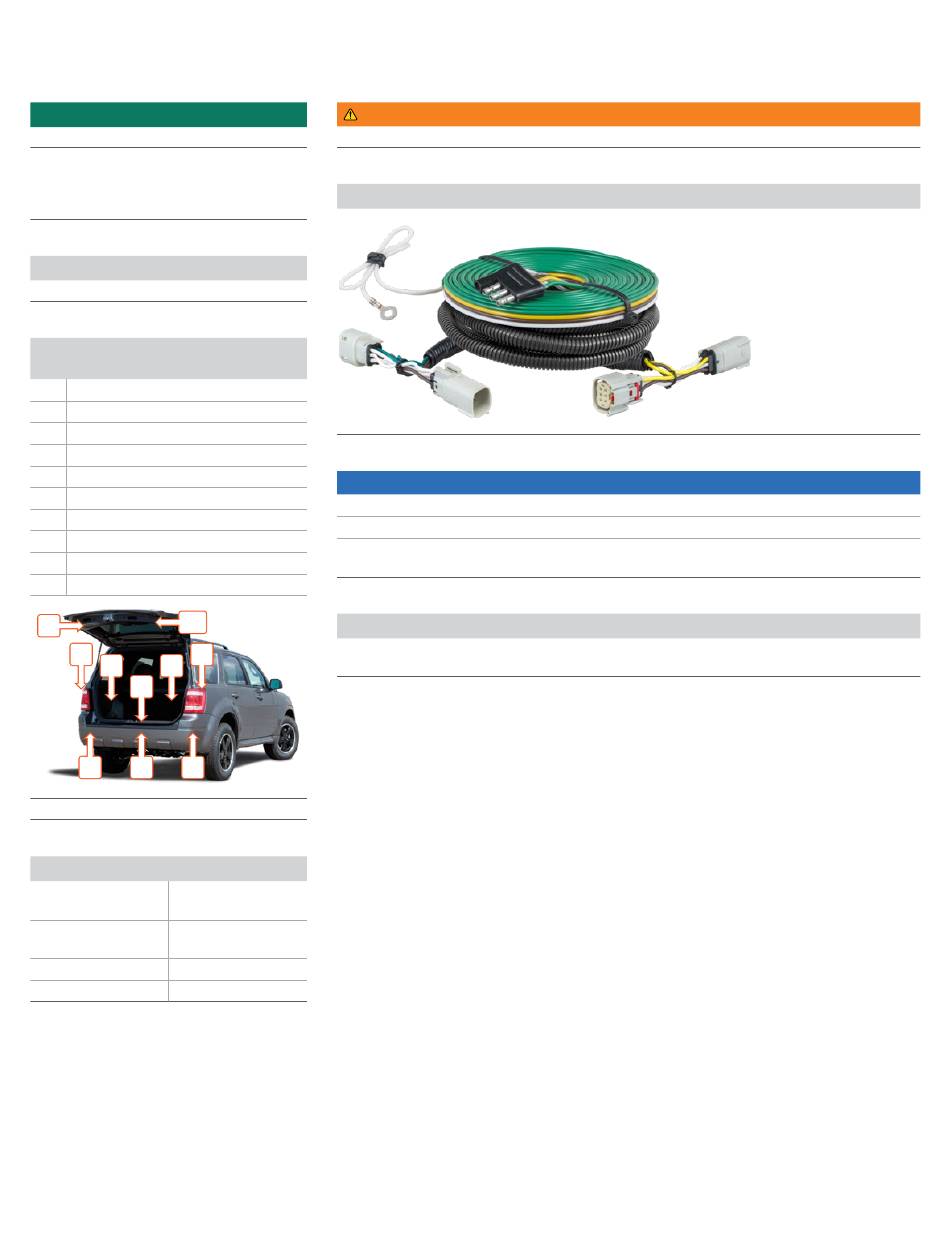

INSTALLATION MANUAL
Level of Difficulty
Easy
Installation difficulty levels are based on time
and effort involved and may vary depending on
the installer level of expertise, condition of the
vehicle and proper tools and equipment.
Wiring Location(s)
S1 and S2
Wiring Location Guide*
for SUVs and Vans (S)
S1
Behind driver side taillight housing
S2
Behind passenger side taillight housing
S3
Behind driver side rear access panel
S4
Behind passenger side rear access panel
S5
Behind driver side rear bumper
S6
Behind center of rear bumper
S7
Behind passenger side rear bumper
S8
Under rear floor panel
S9
Behind driver side rear access panel
S10 Behind passenger side rear access panel
S10
S9
S1
S2
S3
S4
S8
S5
S6
S7
* Representative vehicle shown
Tools Required
Ratchet
Panel trim
removal tool
Socket, 10mm
Small flathead
screwdriver
Socket extension
Phillips screwdriver
Fishwire
Wire cutter
58996-INS-RA
•
03/03/2022
•
WARNING
Do not exceed product rating or tow vehicle lamp load rating, whichever is lower.

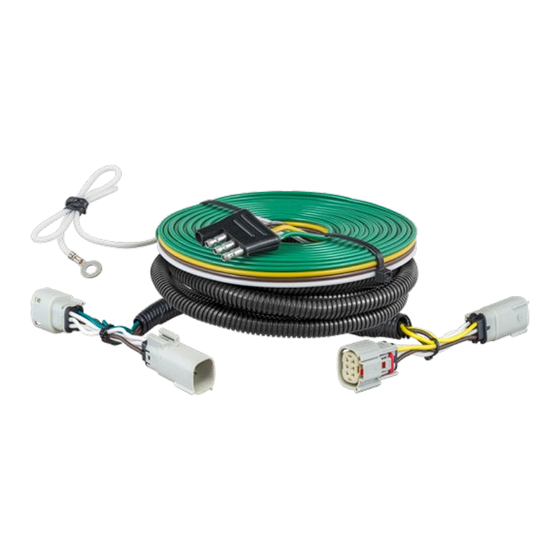

Product Photo
NOTICE
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
All steps must be followed to ensure the product will function properly. Once installed,
test for proper function by using a test light or connecting a properly wired trailer.
Maintenance
Periodic inspection of all wires and connections should be performed
to ensure there is no visible damage or loose connections.
ECN9239
•
PAGE 1 OF 6
Advertisement
Related Manuals for curt 58992
Summary of Contents for curt 58992
- Page 1 INSTALLATION MANUAL Level of Difficulty WARNING Do not exceed product rating or tow vehicle lamp load rating, whichever is lower. Easy Installation difficulty levels are based on time and effort involved and may vary depending on the installer level of expertise, condition of the Product Photo vehicle and proper tools and equipment.
- Page 2 Step 1 Locate the vehicle battery in the engine compartment on the driver side and disconnect the negative battery terminal. Be sure to fasten this wire down and away from the battery while completing the installation process. Step 2 Fully open the tailgate and raise the glass. Use a 10mm socket to remove four bolts, two on each side, securing the taillight trim in place.
- Page 3 Step 5 Locate the taillight housing and separate the connectors, taking care not to damage the locking tabs. Repeat this on the other side of the vehicle. Step 6 Starting on the driver side, locate the side of the harness with the yellow wire. From underneath the vehicle between the rear tire and the rear bumper, route the wire up between the body and rear bumper (being sure to stay...
- Page 4 Step 7 Route the green wire over the vehicle frame on both sides of the vehicle over to the passenger side. Zip tie as needed to the rear bumper. Repeat step 6 using the green wire. Step 8 Locate a grounding point such as an existing screw or bolt in the frame of the vehicle or drill a 3/32"pilot hole.
- Page 5 Step 9 Route the 4-flat along the top of the driver-side frame rail to just behind the driver-side front tire. Loosely secure any excess wire so that it is not drooping or dangling and tighten later. Step 10 How to Fishwire A) Fish wire is a way to push or pull an electrical wire through a blind hole.
- Page 6 Step 11 Pull the 4-flat up between the inner and outer fender and route the 4-flat along the driver-side inner fender and to the front of the vehicle. Secure any excess wire so that it is not drooping or dangling, but not so tight that it causes unnecessary strain to the wire which could lead to breakage over time.
