curt 52109 Installation Manual

INSTALLATION MANUAL
Level of Difficulty
Easy
Installation difficulty levels are based on time
and effort involved and may vary depending on
the installer level of expertise, condition of the
vehicle and proper tools and equipment.
Wiring Location(s)
P3 and P4
Wiring Location Guide*
for Passenger Cars (P)
P1 Behind driver side taillight
housing, outside of trunk
P2 Behind passenger side taillight
housing, outside of trunk
P3 Behind driver side taillight
housing, inside of trunk
P4 Behind passenger side taillight
housing, inside of trunk
P5 Behind driver side rear bumper
P6 Behind center of rear bumper
P7 Behind passenger side rear bumper
P1 P3 P4 P2
P5 P6 P7
* Representative vehicle shown
Tools Required
Ratchet Wire cutter
Socket, 10mm Wire crimp
Panel trim --
removal tool
52109-INS-RA • 01/08/2024 •
WARNING
Do not exceed product rating or tow vehicle lamp load rating, whichever is lower.
Be sure not to lay tools a crossed the positive (typically noted with red covers or a
red '+' symbol). This can cause a ground to short causing sparks and / or electrical shocks.

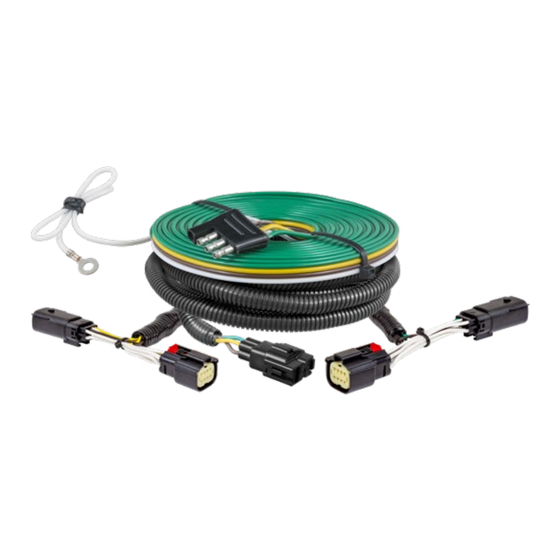

Product Photo
Hardware Photo
NOTICE
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
All steps must be followed to ensure the product will function properly. Once installed,
test for proper function by using a test light or connecting a properly wired trailer.
Maintenance
Periodic inspection of all wires and connections should be performed
to ensure there is no visible damage or loose connections.
ECN11450 • PAGE 1 OF 6
