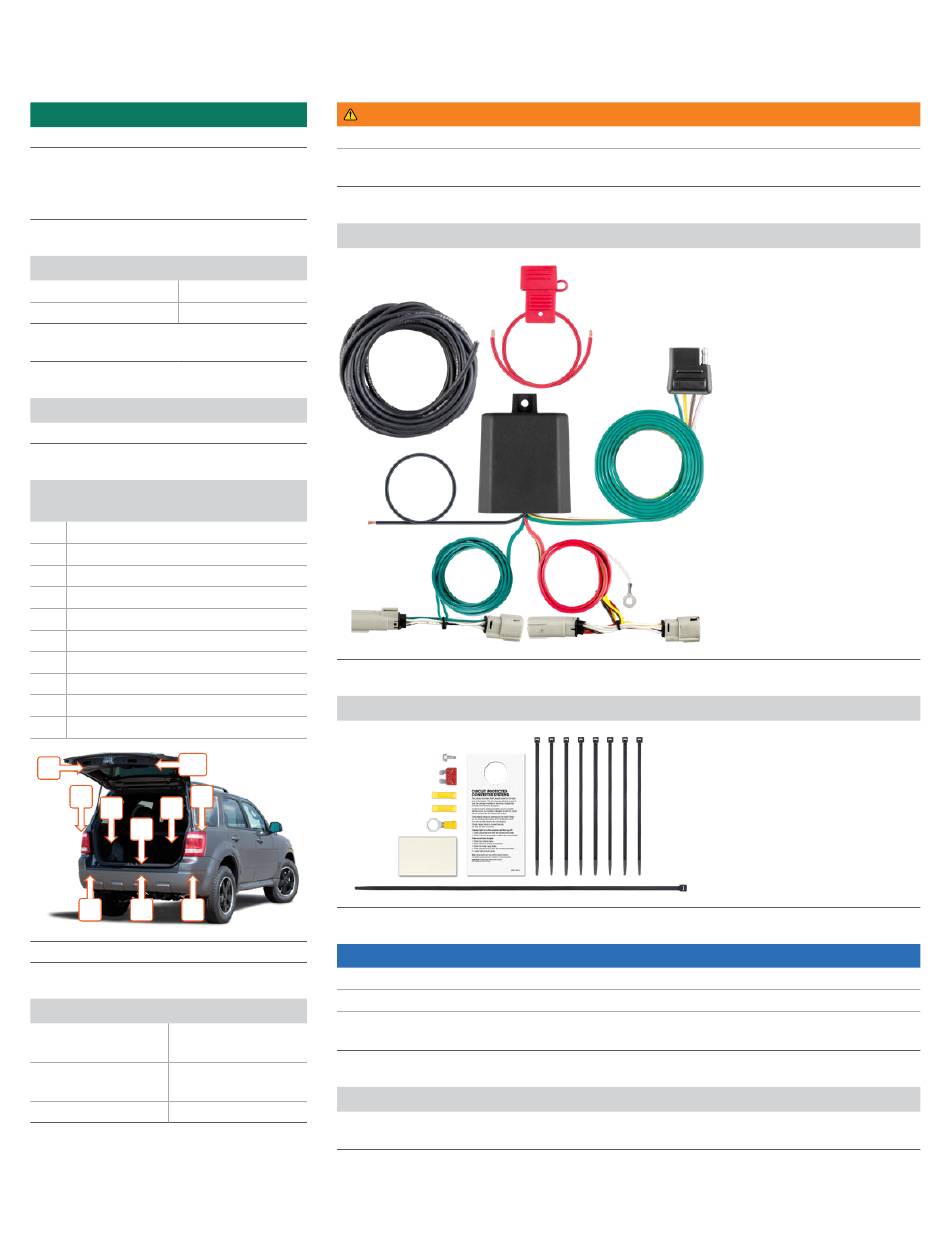

INSTALLATION MANUAL

Level of Difficulty

Easy
Installation difficulty levels are based on time
and effort involved and may vary depending on
the installer level of expertise, condition of the
vehicle and proper tools and equipment.

Electrical Ratings

Signal circuits
3.0-amps per side
Tail / Running Circuits
6.0-amps total
Check vehicle owner's manual or contact
the vehicle manufacturer for more information.

Wiring Location(s)

S1 and S2
Wiring Location Guide*
for SUVs and Vans (S)
S1
Behind driver side taillight housing
S2
Behind passenger side taillight housing
S3
Behind driver side rear access panel
S4
Behind passenger side rear access panel
S5
Behind driver side rear bumper
S6
Behind center of rear bumper
S7
Behind passenger side rear bumper
S8
Under rear floor panel
S9
Behind driver side rear access panel
S10 Behind passenger side rear access panel
S10
S9
S1
S2
S3
S4
S8
S5
S6
S7
* Representative vehicle shown

Tools Required

Ratchet
Panel trim
removal tool
Socket, 10mm
Small flathead
screwdriver
Socket extension
Phillips screwdriver
56471-INS-RA
02/22/2022
WARNING
Do not exceed product rating or tow vehicle lamp load rating, whichever is lower.
The battery connection must be fuse-protected, 10-amp max. Exceeding
the product rating can cause loss of warranty, overheating and potential fire.

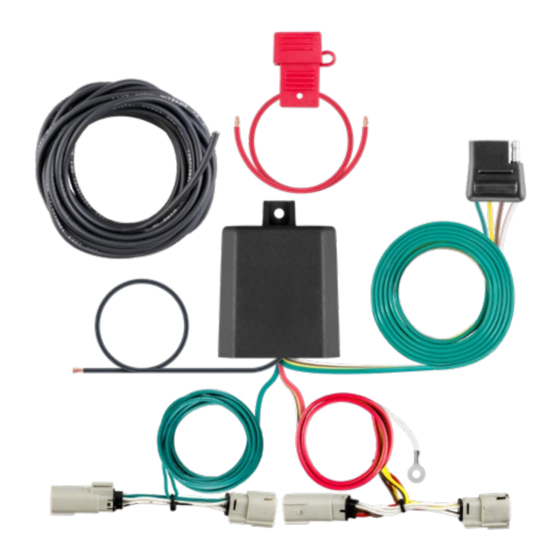

Product Photo
Hardware Photo
NOTICE
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
All steps must be followed to ensure the product will function properly. Once installed,
test for proper function by using a test light or connecting a properly wired trailer.

Maintenance

Periodic inspection of all wires and connections should be performed
to ensure there is no visible damage or loose connections.
ECN9237
PAGE 1 OF 6
