YEARS: 2019-CURRENT
MAKE:
WARNING: NEVER EXCEED YOUR VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY
For more information log onto www.curtmfg.com & for helpful towing tips log onto www.hitchinfo.com
WEIGHT CARRYING:
PRO INSTALL TIME:
NOVICE INSTALL TIME:
IF YOU ARE HESITANT TO UNDERTAKE
THIS TASK ON YOUR OWN, CONTACT AN AUTHORIZED
CURT INSTALLER FOR ADDITIONAL ASSISTANCE.
INSTALLATION REQUIRES:
DIE GRINDER
RATCHET
6"
SOCKET
SCREW
EXTENSION
DRIVER
SAFETY
JACK STANDS
GLASSES
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE ALL FASTENERS ARE TIGHT AND ALL STRUCTURAL COMPONENTS ARE SOUND
CURT Manufacturing LLC. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective,
CURT Manufacturing LLC. may repair or replace the product at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of this product
SCAN FOR
voids the warranty. CURT Manufacturing LLC.'s liability is limited to repair or replacement of products found to be defective, and specifically excludes liability for incidental or consequential loss or damage.
MORE INFO
For more information log onto www.curtmfg.com
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C.Regulation V-5 and SAE J684.
13409

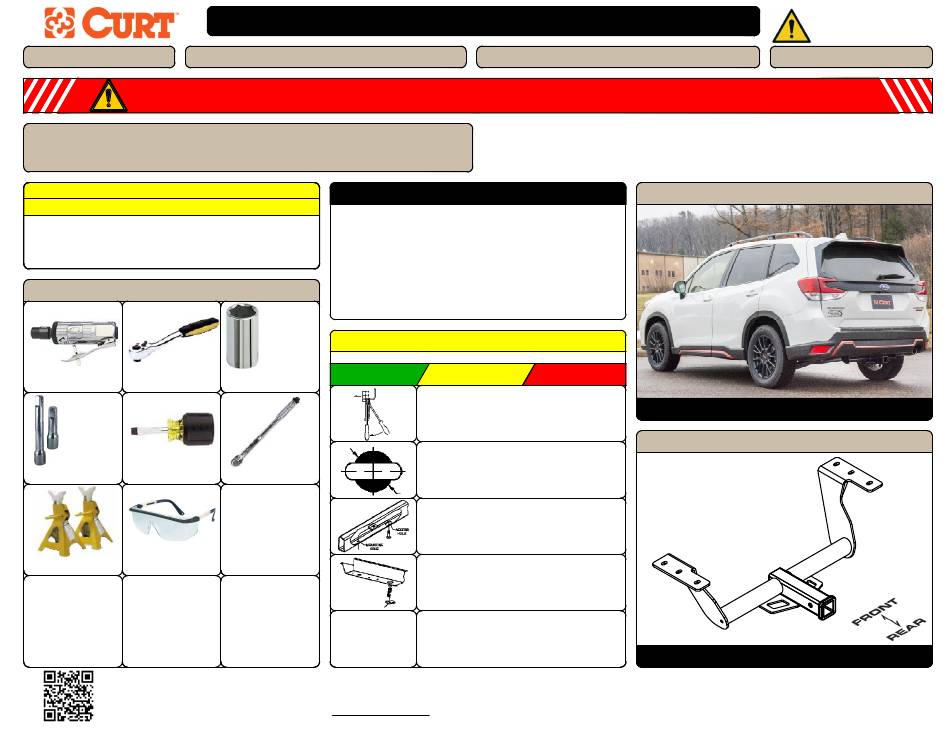

INSTALLATION INSTRUCTIONS
SUBARU
TRAILER WEIGHT:
LBS.
3500
TONGUE WEIGHT:
525
LBS.
30
MIN.
INSTALLATION TIPS:
60 MIN.
1. BEFORE YOU BEGIN INSTALLATION, READ ALL
INSTRUCTIONS THOROUGHLY.
2. TO EASE INSTALLATION, 2 PEOPLE MAY BE
REQUIRED.
3. USING PROPER TOOLS WILL GREATLY IMPROVE
THE QUALITY OF THE INSTALL AND REDUCE THE
TIME REQUIRED.
4. NEED HELP OR HAVE SOME QUESTIONS?
CALL TECHNICAL SUPPORT AT 800.798.0813
10mm
3/4"
LEVEL OF DIFFICULTY:
EASY
SOCKET
TORQUE
WRENCH
MODEL: FORESTER
MODERATE
MODERATE
CHALLENGING
RUBBER ISOLATOR
REMOVAL
HOLE ENLARGEMENT
FISHWIRE
REVERSE FISHWIRE
Safety glasses should be
worn at all times while
installing this product .
STYLE:
VEHICLE PHOTO:
REPRESENTATIVE PHOTO

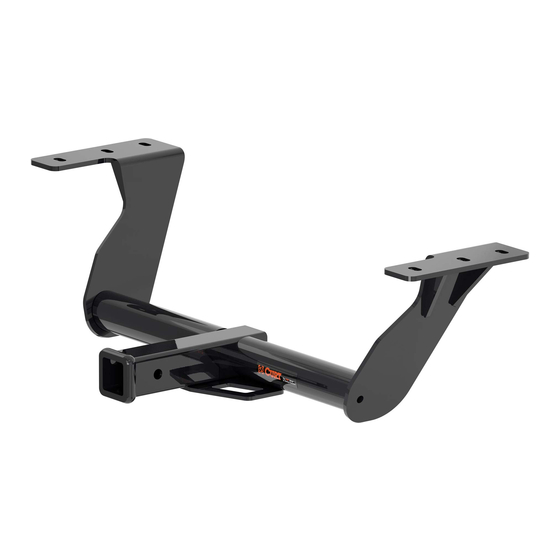

HITCH ILLUSTRATION:
MAKE SURE YOUR HITCH MATCHES
SUV
1/10/2019
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for curt 13409
Summary of Contents for curt 13409
- Page 1 PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE ALL FASTENERS ARE TIGHT AND ALL STRUCTURAL COMPONENTS ARE SOUND CURT Manufacturing LLC. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT Manufacturing LLC.
-
Page 2: Installation Walkthrough
INSTALLATION WALKTHROUGH: 1. Remove (2) exhaust hangers from the passenger side Parts List muffler and (1) exhaust hanger from the center front of ITEM PART NUMBER DESCRIPTION 1/2-13 x 1 3/4, GR8 CARRIAGE BOLT vehicle for single exhaust vehicles, dual exhaust will remove CM-SP10 .250 x 1.00 x 2.50"... - Page 3 INSTALLATION WALKTHROUGH: 3. Remove (3) hole plugs from each frame rail to expose 5. Raise hitch into place and secure hitch to frame, mounting holes. Return plugs to customer. Enlarge the using the 1/2" hardware provided. Torque all center hole on each frame rail to about 1 1/8" to allow the hardware to 110 ft-lbs.
- Page 5 CURT Manufacturing LLC., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. Scan If the product is found to be defective, CURT Manufacturing LLC., may repair or replace the product, at their option, when the product is returned, prepaid, for more with proof of purchase.
