Owner's Guide and Installation Manual
Attach sales receipt to this card and retain as your proof of purchase
DATE OF PURCHASE:
MODEL NUMBER:
To register your fixture, please visit our website www.montecarlofans.com

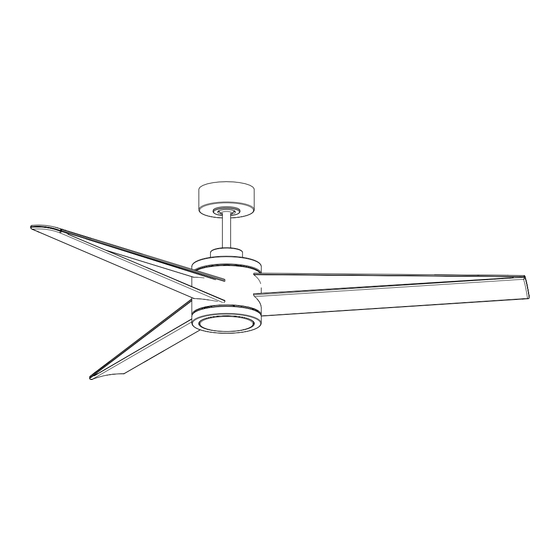

3AMR60XXXD Series Fan
cETL Model NO. : 3AMR60(X)
RETAILER NAME:
RETAILER ADDRESS:
6.6 kgs
14.52 lbs
Total fan weight with light

Advertisement

loading
Need help?

Need help?

Do you have a question about the Armstrong 3AMR60RZWD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Monte Carlo Fan Company Armstrong 3AMR60RZWD

  • Page 1 Owner’s Guide and Installation Manual 3AMR60XXXD Series Fan cETL Model NO. : 3AMR60(X) Attach sales receipt to this card and retain as your proof of purchase DATE OF PURCHASE: RETAILER NAME: RETAILER ADDRESS: MODEL NUMBER: To register your fixture, please visit our website www.montecarlofans.com 6.6 kgs 14.52 lbs Total fan weight with light...
  • Page 2: Cautions And Warnings

    Cautions and Warnings WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING READ AND SAVE THESE INSTRUCTIONS Installation work and electrical wiring must be done by qualified person(s) in accordance with applicable codes and standards (ANSI/NFPA 70), including fire-rated construction.
  • Page 3 Mounting bracket Before you begin installing the fan, Switch Before installing this fan make sure the Use metal outlet box suitable for fan power off at Service panel and lock outlet box is properly installed to the support and use only the screws provided service disconnecting means to prevent house structure.
  • Page 4 Inserted nut Bracket Align the holes on blade with the screw Flip the fan body with blades over and Align the holes on blade with the screw insert the other blades (the blades with holes on the bracket inside fan housing holes on the bracket inside fan housing inserted nuts) into the other slots on the and partially install the blades with set...
  • Page 5 Lead wire Downrod Safety cable Canopy Yoke Downrod Canopy Canopy bottom cap Yoke cover Set screw Yoke Screwdriver Cross Canopy bottom Yoke cover Place downrod over canopy, canopy Partially loosen downrod set screws from Thread lead wires and safety cable from bottom cap and yoke cover.
  • Page 6 Wall Switch Black (Live) Power source White (Neutral) Blue (For Light) Ground/Green White (For Light) Red (Motor 1) Purple (Motor 2) Gray (Motor 3) Green/Ground Receiver Black (AC IN L) White (AC IN N) Make wiring connections using wire connectors provided as indicated above. Partially loosen one and remove one Red from fan to Red from remote marked Motor 1.
  • Page 7 Install LED Light Kit Light pan LED light fixture Reinstall the screw removed in step 22. Remove 3 preassembled screw from the Connect white wire from fan to white wire Tighten all screws securely. light pan. Save screws for later use. from LED light fixture and then connect black (or blue) wire from fan to blue (or black) wire from LED light kit.
  • Page 8: Transmitter Operation

    REMOTE CONTROL SETTING and OPERATION Transmitter Operation Remove the battery cover from the remote control transmitter and install battery, battery provided. Replace the cover. Note: Use 2 1.5V/AAA battery. Note: If not using for long period of time, remove battery to prevent damage to remote transmitter, and store the remote transmitter away from excess heat or humidity.
  • Page 9 The buttons on the remote control transmitter control the fan speed and light as follows. Fan speed 1 = minimum speed 2 = low speed 3 = medium low speed 4 = medium speed 5 = medium high speed 6 = high speed This button turns the fan off.
  • Page 10: Troubleshooting

    Troubleshooting or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, installation, please call our Customer Service Center at the number printed on your parts list insert sheet. Warning and lock the service panel to prevent the power from being switched back on accidentally. If the service panel cannot be locked to prevent the power from being switched on accidentally, securely fasten a warning sign to the service panel.
  • Page 11 Oct.2018 Jun.2019 mounting bracket Feb.2020 branding Aug.2022 Remove MC logo Apr.2024 remove ES mark...
