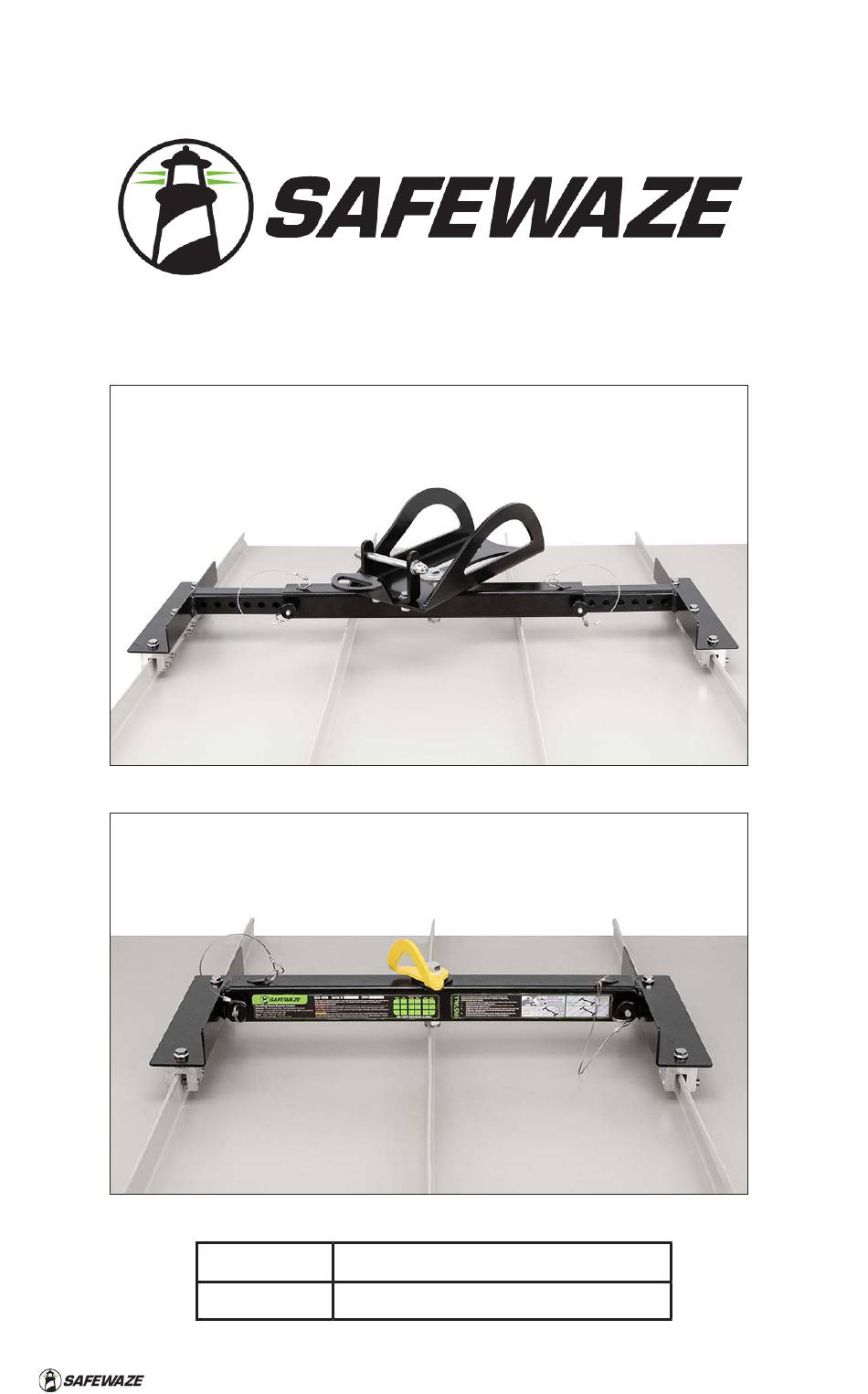

- Page 1 Standing Seam Swivel Anchors Manual 023-4095 023-4096 OSHA 1926.502, 1910.140, 1910.66 Standing Seam SRL Swivel Anchor 023-4095 Standing Seam Swivel Anchor 023-4096 V4. 2024 Copyright Safewaze: 220-00108...
- Page 2 Read and understand instructions before using equipment! Do not throw away instructions! Always verify the latest revision of the Safewaze Manual is being utilized. Visit the Safewaze website, or contact Customer Service, for updated manuals. IMPORTANT: • Please refer to this manual for essential instructions on the use, care, or suitability of this equipment for your application.
- Page 3 Women who are pregnant and individuals considered minors must not use any Safewaze equipment. • Do not alter or misuse equipment. Only Safewaze, or entities authorized in writing by Safewaze, may make repairs to Safewaze fall protection equipment.
-
Page 4: Table Of Contents
Compatibility of Connectors ► ► 11.0 Making Connections ► ► 12.0 Installation of Standing Seam Anchor ► ► 13.0 Inspection ► ► 14.0 Maintenance ► ► 15.0 Labels ► ► 16.0 Annual Inspection Form ► ► V4. 2024 Copyright Safewaze: 220-00108... -
Page 5: Introduction
Both anchors are designed for installation on a sloped or flat standing seam roof with seam spacing from 24 to 40 inches (101.6 cm). The 023-4095 Standing Seam SRL Swivel Anchor acts as an anchorage connector for fall protection equipment and can be used with energy absorbing lanyards, Self-Retracting Lifelines (SRLs), Vertical Lifelines (VLLs), and Horizontal Lifelines (HLLs). -
Page 6: Rescue Plan
(2267.9 kg) per user attached. Or, anchorages for attachment should be designed, installed, and used as part of a complete PFAS which maintains a safety factor of at least two and is under the supervision of a Qualified Person. V4. 2024 Copyright Safewaze: 220-00108... -
Page 7: Allowed Anchorage Applications
• Fall Clearance: Fall Clearance (FC) is the total combined values of the Rope Elongation, Lanyard Length, Deceleration Distance, Harness Stretch, Height of Worker, and Safety Factor. Safewaze uses a 2 ft. Safety Factor. The Safety Factor includes fall arrester slippage. Refer to the chosen PFAS system product manual when calculating fall clearance. -
Page 8: Product Specifications
PFAS used. For these applications, the allowable attachment points to the harness are Dorsal, Front/Sternal, and Shoulder D-rings. 023-4095 is suitable for use with SRL-Ps and Horizontal Lifelines. 023-4096 is NOT suitable for use with Horizontal Lifelines. ►... - Page 9 Note: Numbers used in these examples are based on ZERO offset and setback with the anchor directly overhead or below, to represent an in-line Fall Clearance calculation. Consult with a Competent Person when working in different scenarios and when using non-Safewaze equipment. 6' FREE FALL LANYARD (OVERHEAD) EXAMPLE...
- Page 10 REFER TO MANUAL FOR PUBLISHED ARREST DISTANCES PER ANSI 1.5' Z359.14-2021 CLASS 2 2021 HARNESS STRETCH 1.5' 18" MAX. PER ANSI Z359.11-2021 HEIGHT OF WORKER WORKING SURFACE TO DORSAL D-RING SAFETY FACTOR SWING FALL DROP DISTANCE V4. 2024 Copyright Safewaze: 220-00108...
-
Page 11: Compatibility Of Connectors
► ► 10.0 COMPATIBILITY OF CONNECTORS • Safewaze equipment is designed for, and tested with, associated Safewaze components or systems. If substitutions or replacements are made, ensure all components meet the applicable ANSI requirements. Read and follow manufacturer’s instructions for all components and subsystems in your PFAS. Not following this guidance may jeopardize compatibility of equipment and possibly affect the safety and reliability of the system. -
Page 12: Making Connections
Ensure all connectors are fully closed and locked. Safewaze connectors (hooks, carabiners, and D-rings) are designed to be used only as specified in each product’s manual. See Figure 3 for examples of inappropriate connections. - Page 13 C: If installing more than one anchor, the anchor must be installed at least two panel section widths away from any other installed anchor. D: If installing more than one anchor, the anchor must be installed at least four panel section lengths away from any other installed anchor. V4. 2024 Copyright Safewaze: 220-00108...
- Page 14 Note: Both setscrews must be installed in a clamp and all clamps must be utilized. The adjustable legs can slide between 24'' to 40''. Center the middle of the anchor between the chosen seams. V4. 2024 Copyright Safewaze: 220-00108...
- Page 15 SRL-P, the connection point of the chosen fall protection device attaches to the yellow D-ring of the anchor. The energy absorbing side of the device attaches to the dorsal D-ring of the user's PFAS harness. V4. 2024 Copyright Safewaze: 220-00108...
-
Page 16: Inspection
2. Ensure the S-5-U clamps and setscrews, adjustable leg detent pins, and all hardware are present. 3. Confirm the bolts are tight on the center of the d-ring and swivel cradle (023-4095) freely swivels 360 degrees. 4. Re-torque the S-5-U clamps (Table 2). V4. 2024 Copyright Safewaze: 220-00108... - Page 17 FIGURE 5: 023-4095 COMPONENT INSPECTION FIGURE 6: 023-4096 COMPONENT INSPECTION Crossarm Adjustable Legs S-5-U Clamps Detent Pins Swivel Cradle (023-4095) Captive Eye (023-4096) V4. 2024 Copyright Safewaze: 220-00108...
-
Page 18: Maintenance
► ► 14.0 MAINTENANCE Repairs: Only Safewaze, or entities authorized in writing by Safewaze, may make repairs to Safewaze fall protection equipment. Cleaning: The anchor can be cleaned with water and mild soap. The user should remove all dirt, possible corrosives, and contaminants from the system prior to, and after, each use. -
Page 19: Labels
Anchors with visible damage, or those Min. Breaking Strength: 3,600 lbs. / 16kN subject to fall arrest forces, must be removed from service immediately. Prior to the attachment of 023-4095, a Competent Person must Place pins when Setscrews are... -
Page 20: Annual Inspection Form
INSPECTION LOG ANNUAL FORM Inspection Inspector: Pass/Fail: Comments/ Date: Corrective Action: Address: 225 Wilshire Ave SW, Concord, NC 28025 Phone: (800) 230-0319 Fax: 704-262-9051 Email: info@safewaze.com Website: safewaze.com V4. 2024 Copyright Safewaze: 220-00108...
