Elongation: 8% at 1,800 lbs.
MANUAL-ROPEVERT
No.
FS700-581200
FS700-58600
FS700-100GA
FS700-25GA
FS700-50GA
FS700-75GA
FS700-100
FS700-100-HH
FS700-100-TT
FS700-150
FS700-150-HH
FS700-200
FS700-200-HH
FS700-25
FS700-250
FS700-25-HH
FS700-25-TT
FS700-30
FS700-300
FS700-30-HH
FS700-30-TT
FS700-350-HH
FS700-400
FS700-50
FS700-50-HH
FS700-50-NB
FS700-60-TT
FS700-75
FS700-75-HH
FS700-100GA-3E
FS700-150GA-3E
FS700-25GA-3E
FS700-50GA-3E
FS700-75GA-3E
This manual is intended to meet the manufacturer's instructions as
required by ANSI Z359.15-2014 and should be used as part
of an employee training program as required by OSHA.
Do not throw away these instructions!
Read and understand these instructions before using equipment!
V1.0 2022 Copyright Safewaze

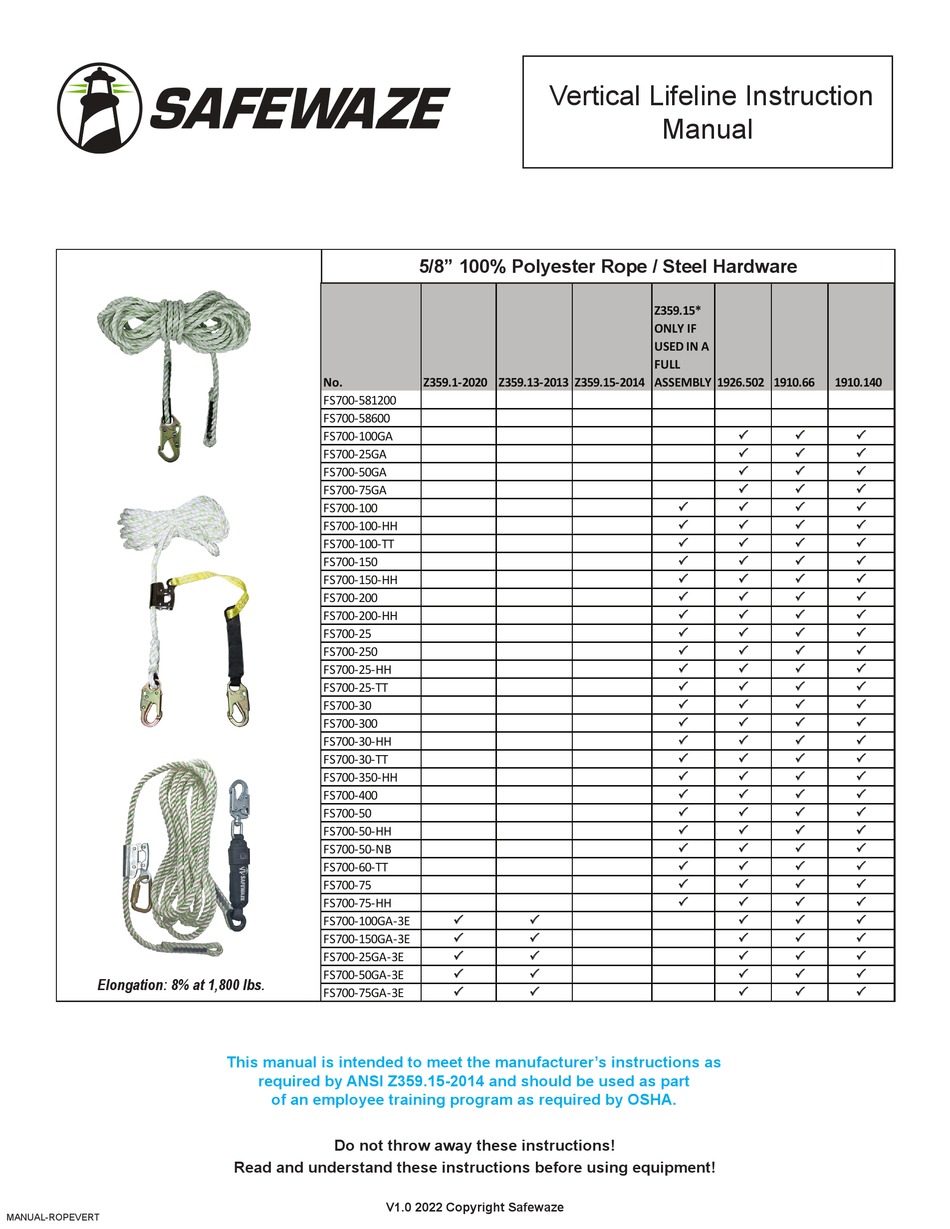

Vertical Lifeline Instruction
5/8" 100% Polyester Rope / Steel Hardware
Z359.1-2020 Z359.13-2013 Z359.15-2014
Manual
Z359.15*
ONLY IF
USED IN A
FULL
ASSEMBLY 1926.502 1910.66
1910.140
Advertisement
Table of Contents
Related Manuals for SafeWaze Z359.1-2020
Summary of Contents for SafeWaze Z359.1-2020
- Page 1 Vertical Lifeline Instruction Manual 5/8” 100% Polyester Rope / Steel Hardware Z359.15* ONLY IF USED IN A FULL Z359.1-2020 Z359.13-2013 Z359.15-2014 ASSEMBLY 1926.502 1910.66 1910.140 FS700-581200 FS700-58600 FS700-100GA FS700-25GA FS700-50GA FS700-75GA ...
- Page 2 5/8” Copolymer Rope / Steel Hardware Z359.15* ONLY IF USED IN A FULL Z359.1-2020 Z359.13-2013 Z359.15-2014 ASSEMBLY 1926.502 1910.66 1910.140 018-7003 018-7004 FS-RTZ700-100 FS-RTZ700-150 FS-RTZ700-200 ...
-
Page 3: Table Of Contents
16.0 MAINTENANCE, CLEANING, & STORAGE ......... 12 17.0 SAFETY INFORMATION ..............12-13 18.0 LABELING ..................... 13 User Information Date of First Use: Serial#: Trainer: User: Do not throw away these instructions! Read and understand these instructions before using equipment! Page 3 V1.0 2022 Copyright Safewaze... -
Page 4: Introduction
They can be used in conjunction with an HLL system where the VLL is connected to the Horizontal Lifeline and used in a vertical orientation as authorized. Roof structures must have a minimum 2/12 pitch for use of a Safewaze Vertical Rope Lifeline. Do not use on a flat roof unless use is for Fall Restraint purposes only. -
Page 5: Product Specific Applications
7.0 PRODUCT SPECIFIC APPLICATIONS Personal Fall Arrest: Safewaze Vertical Lifelines can be used as part of a complete Personal Fall Arrest System (PFAS) for a maximum of one user. Only one user may be connected to a VLL. Only one fall arrester is to be attached to the VLL at any given time. Avoid sharp and/or abrasive edges. If contact with an abrasive surface is unavoidable, proper rope protection must be used. -
Page 6: Compatibility Of Connectors
NOTE: Large snap hooks must not be connected to objects which will result in a load on the gate if the hook twists or rotates. Hooks supplied with Safewaze VLLs comply with ANSI Z359.12 and are equipped with a 3,600 lbs. (16 kN) gate. Check the marking on your snap hook to verify its compatibility. -
Page 7: Components
12.0 ROPE GRABS Safewaze rope grabs are designed to work with specific rope sizes and types. All grabs are equipped with an “UP” Arrow, which indicates the proper orientation of the grab to the Vertical Rope Lifeline (See Figure 6). Some models are also equipped with an anti-inversion feature which prevents the grab from being installed upside down. - Page 8 Lift the ring up to retract the cam Close the gate, and retighten the Rotate the safety lever all the way down. assembly, and place the rope into the knurled locking knob. rope channel. OPERATION Page 8 V1.0 2022 Copyright Safewaze...
- Page 9 Proper function of the SW-EX8000 can be tested by again pulling up on the connector, and then rapidly pulling downward to ensure the grab locks onto the rope and stops. Figure 11 illustrates proper installation of the SW-EX8000. FIGURE 10 - SW-EX8000 ORIENTATION FOR INSTALL Connection Slot EASY MOVE 100kg “UP” Arrow REST Blocking Wheel Page 9 V1.0 2022 Copyright Safewaze...
- Page 10 VLL is equipped with a stitched termination, or appropriately tied knot, to prevent the grab from traveling off the VLL. FIGURE 13 - 021-7014 ROPE COUNTERWEIGHT INSTALLATION Page 10 V1.0 2022 Copyright Safewaze...
-
Page 11: Rope Termination Plate
Great care should be taken to ensure the lifeline does not come into contact with a sharp edge or abrasive surface. If contact with an abrasive surface is unavoidable, the user must ensure that the lifeline is protected from damage. Safewaze recommends use of a rope protector such as our 018-9000 or 018-9001. -
Page 12: Maintenance, Cleaning, & Storage
Dry the rope grab with a clean rag. Allow other equipment to air dry. DO NOT USE HEAT TO DRY EQUIPMENT! 16.3 STORAGE Store the Safewaze VLL System in a cool, dry, clean environment out of direct sunlight. Avoid areas where chemical vapors may exist. Thoroughly inspect the system after any period of extended storage. -
Page 13: Labeling
-Avoid physical hazards such as shipment. Failure to follow these and any of the manufacturer’s instructions may result in any objects carried. Contact Safewaze for more information. thermal, electrical and chemical sources. 6ft. 900lbs. - Page 14 ROPE GRAB (IF PRESENT) Locks on Lifeline Automatically Moves Freely When Disengaged No Visible Damage, Rust or Corrosion 225 Wilshire Avenue SW, Concord NC 28025 • 800-230-0319 • www.safewaze.com If equipment fails inspection IMMEDIATELY REMOVE FROM SERVICE Page 14 V1.0 2022 Copyright Safewaze...
- Page 15 Safewaze 225 Wilshire Ave SW Concord, NC 28025 PHONE: 1-800-230-0319 FAX: 1-704-262-9051 EMAIL: info@safewaze.com Web: safewaze.com V1.0 2022 Copyright Safewaze...
