- Page 1 Latitude Pro SRL-P Manual STANDARDS Class ANSI Z359.14-2021 Anchor at or above OSHA 1910.66, 1910.140 dorsal D-ring V2. 2023 Copyright Safewaze: 220-00083...
- Page 2 • The user must read, understand, and follow all safety and usage information contained within this manual. • The user must safely and effectively use the Latitude Pro SRL-P and all equipment used in conjunction with the SRL. • Failure to follow all safety and usage information can result in serious injury or death.
- Page 3 Women who are pregnant and individuals considered minors must not use any Safewaze equipment. • Do not alter or misuse equipment. Only Safewaze, or entities authorized in writing by Safewaze, may make repairs to Safewaze fall protection equipment. •...
-
Page 4: Table Of Contents
Fall Clearance ► ► Compatibility of Connectors ► ► 10.0 Making Connections ► ► 11.0 Installation/Operation of Latitude Pro ► ► 12.0 Inspection/Maintenance ► ► 13.0 Labels ► ► 14.0 Annual Inspection Form ► ► V2. 2023 Copyright Safewaze: 220-00083... - Page 5 021‐5288 Dyneema®Webbing .7X.05 Clear Resin 023‐5366 Dyneema® Webbing .7X.05 Clear Resin 023‐5330 Dyneema® Webbing .7X.05 Clear Resin 023‐5367 Dyneema® Webbing .7X.05 Clear Resin 021‐5281 Dyneema®Webbing .7X.05 Clear Resin 018‐5037 Dyneema®Webbing .7X.05 Clear Resin 019‐5137 Dyneema®Webbing .7X.05 Clear Resin 023‐5368 Dyneema®Webbing .7X.05 Clear Resin Copyright Safewaze 2022 V2. 2023 Copyright Safewaze: 220-00083...
-
Page 6: Introduction

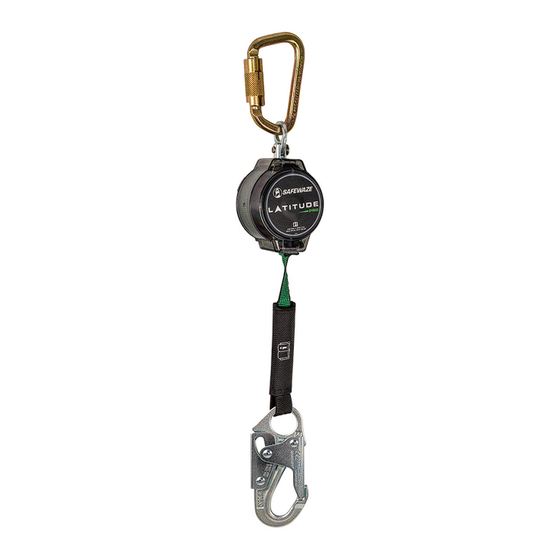

OSHA or any applicable state agency. The Latitude Pro SRL-P is intended for use as part of a complete Personal Fall Arrest, Restraint, Work Positioning, or Rescue System. Safewaze SRLs are designed to safely arrest the user in a fall event, while minimizing forces on the body. -
Page 7: Applicable Safety Standards
Dorsal D-ring. The user must account for additional clearance requirements when the anchor point is located below the D-ring. When anchored below the Dorsal D-ring, Latitude Pro SRL-Ps are compliant with OSHA 1910.140 and OSHA 1910.66. V2. 2023 Copyright Safewaze: 220-00083... -
Page 8: Worker Classifications
Rescue Equipment and Rescue Plan. See ANSI Z359.4-2013 for specific rescue information. Immediately seek medical attention in the event a worker suffers a fall arrest incident. Note: Special rescue measures may be required for a fall over an edge. V2. 2023 Copyright Safewaze: 220-00083... -
Page 9: Product Limitations
Areas where the user’s lifeline may cross or tangle with the lifeline of another user should be avoided. Do not allow the lifeline to pass under arms or between the legs. V2. 2023 Copyright Safewaze: 220-00083... -
Page 10: Product Specifications
• Sharp Edges: Safewaze Class 1 SRLs are NOT designed for use in Leading Edge Environments. Should a specific work area have an extremely sharp edge/ edges that may come into contact with the lifeline constituent of the SRL, a Class 2 SRL is required. - Page 11 • Actual Arrest Distance (AD): Safewaze SRLs are tested in accordance with ANSI Z359.14-2021 conditioning test protocols. Table 2 reflects the Actual Arrest Distances of the Latitude Pro SRL-P when subjected to Ambient, Wet, Hot, and Cold testing. These Actual Arrest Distances are typically lower than the 42” maximum as specified per ANSI.
- Page 12 Actual Arrest Model Fall Clearance Below D-ring Distance (Permitted Use) 7' Web 7' 6" (2.3 m) 24'' (61 cm) 24'' (61 cm) 7' Web See Page 14 See Page 14 See Page 14 (20'' Tie-Back) V2. 2023 Copyright Safewaze: 220-00083...
- Page 13 FALL CLEARANCE CHARTS *For the Overhead Use (white) Class 1 chart: Safewaze Latitude Pro SRL-Ps meet all ANSI 130-310 lbs. (59-141 kg) and OSHA up to 420 lbs. (191 kg) requirements for a Clearance Values come from combined values Class 1 SRL when anchored overhead.
- Page 14 DEATH Use Caution (6.8m) (7.2m) (7.7m) (X.Xm) (7.5m) (8.0m) (8.6m) Fall Clearance with Latitude Pro Tie-Back SRL-Ps: Safewaze Latitude Pro 20'' 24'6" 26'5" 28'4" 28'6" 30'6" 32'6" X'X" WARNING! Tie-Back SRLs can be connected to an anchor point from 9.5” to 21” in diameter.
- Page 15 (1.7m) (1.7m) (2.1m) (2.1m) (2.6m) (2.6m) (3.0m) (3.0m) (3.5m) (3.5m) (4.1m) (4.1m) (4.6m) (4.6m) (5.1m) (5.1m) (5.7m) (5.7m) V2. 2023 Copyright Safewaze: 220-00083 1.3m) (1.6m) (1.9m) (2.3m) (2.6m) (3.0m) (3.4m) (2.4m) (0.0m) (0.0m) (0.1m) (0.2m) (0.3m) (0.4m) (0.6m) (0.8m) (1.0m) (1.2m)
-
Page 16: Compatibility Of Connectors
(2.1m) (2.6m) (3.0m) (3.5m) (4.1m) (4.6m) (5.1m) (5.7m) 1.3m) (1.6m) (1.9m) (2.3m) (2.6m) (3.0m) (3.4m) • Safewaze equipment is designed for, and tested with, associated Safewaze 5'7" 5'7" 7'2" 7'2" 8'10" 8'10" 10'7" 10'7" 12'4" 12'4" 14'2" 14'2" 16'0" 16'0"... -
Page 17: Making Connections
Ensure all connectors are fully closed and locked. Safewaze connectors (hooks, carabiners, and D-rings) are designed to be used only as specified in each product’s manual. See Figure 3 for examples of inappropriate connections. -
Page 18: Installation/Operation Of Latitude Pro
When used properly, the lifeline of the SRL will extend and retract freely, with no slack or hesitation, as the user moves at normal speeds. In the event of a fall, Safewaze SRLs are equipped with a speed-sensing braking system. The braking system will activate, stop the fall, and absorb much of the energy created by the fall. - Page 19 6. Slide the green retractable spacer back over the gate of carabiner and snap the two small brackets back into place on carabiner, with the web loops positioned between the ends of the bracket. FIGURE 6: BEHIND THE WEB BRACKET INSTALLATION FALL-ARREST V2. 2023 Copyright Safewaze: 220-00083...
- Page 20 6. Dual leg retractables can be easily installed and removed from bracket by once again pressing both locking button (A) and slide lock (B), which allows bracket to swing open without complete removal from harness. V2. 2023 Copyright Safewaze: 220-00083...
-
Page 21: Inspection/Maintenance
• A Competent Person must determine that the installation location to be utilized will support the intended loads. Frequency: • A Competent Person, other than the user, must inspect the Latitude Pro SRL-P at least once annually. • While conducting inspections, the Competent Person must consider all applications and hazards that the equipment may have been subjected to while in use. - Page 22 Hardware can be wiped off with a clean, dry cloth. Do not store system if wet or damp. Allow equipment to fully dry before being stored. • Storage: Prior to installation, store the Latitude Pro SRL-P in a cool, dry area where it will not be exposed to extreme light, extreme heat, excessive moisture, or possibly corrosive chemicals or materials.
- Page 23 LOAD INDICATOR PASS FAIL ANSI Z359.14, ANSI A10.32 ANSI Z359.14, ANSI A10.32 OSHA 1910.66, OSHA 1926.502 OSHA 1910.66, OSHA 1926.502 If stitch pattern at the base of the housing V2. 2023 Copyright Safewaze: 220-00083 is torn open, immediately remove from service...
-
Page 24: Labels
2 ft. (0.6 m) Max Free Fall Distance 24 in. (61 cm) Max Free Fall Distance 24 in. (61 cm) Min. Req. Fall Clearance 5’ 9” (1.8 m) Min. Req. Fall Clearance 7’ 6” (2.3 m) BACK V2. 2023 Copyright Safewaze: 220-00083... - Page 25 Inspection Log DO NOT ATTEMPT TO SERVICE OR REPAIR THIS Do Not Remove Label UNIT! CONTACT SAFEWAZE FOR SERVICE OR REPAIR INFORMATION. Device must be inspected prior to each use in accordance with the manufacturer’s instructions. Perform the locking function test (by pulling sharply) and the retraction test.
-
Page 26: Annual Inspection Form
ANNUAL INSPECTION FORM Inspection Inspector: Pass/Fail: Comments/ Date: Corrective Action: V2. 2023 Copyright Safewaze: 220-00083... - Page 27 THIS PAGE INTENTIONALLY LEFT BLANK V2. 2023 Copyright Safewaze: 220-00083...
- Page 28 Address: 225 Wilshire Ave SW, Concord, NC 28025 Phone: 800-230-0319 Fax: 704-262-9051 Email: info@safewaze.com Website: safewaze.com V2. 2023 Copyright Safewaze: 220-00083...
