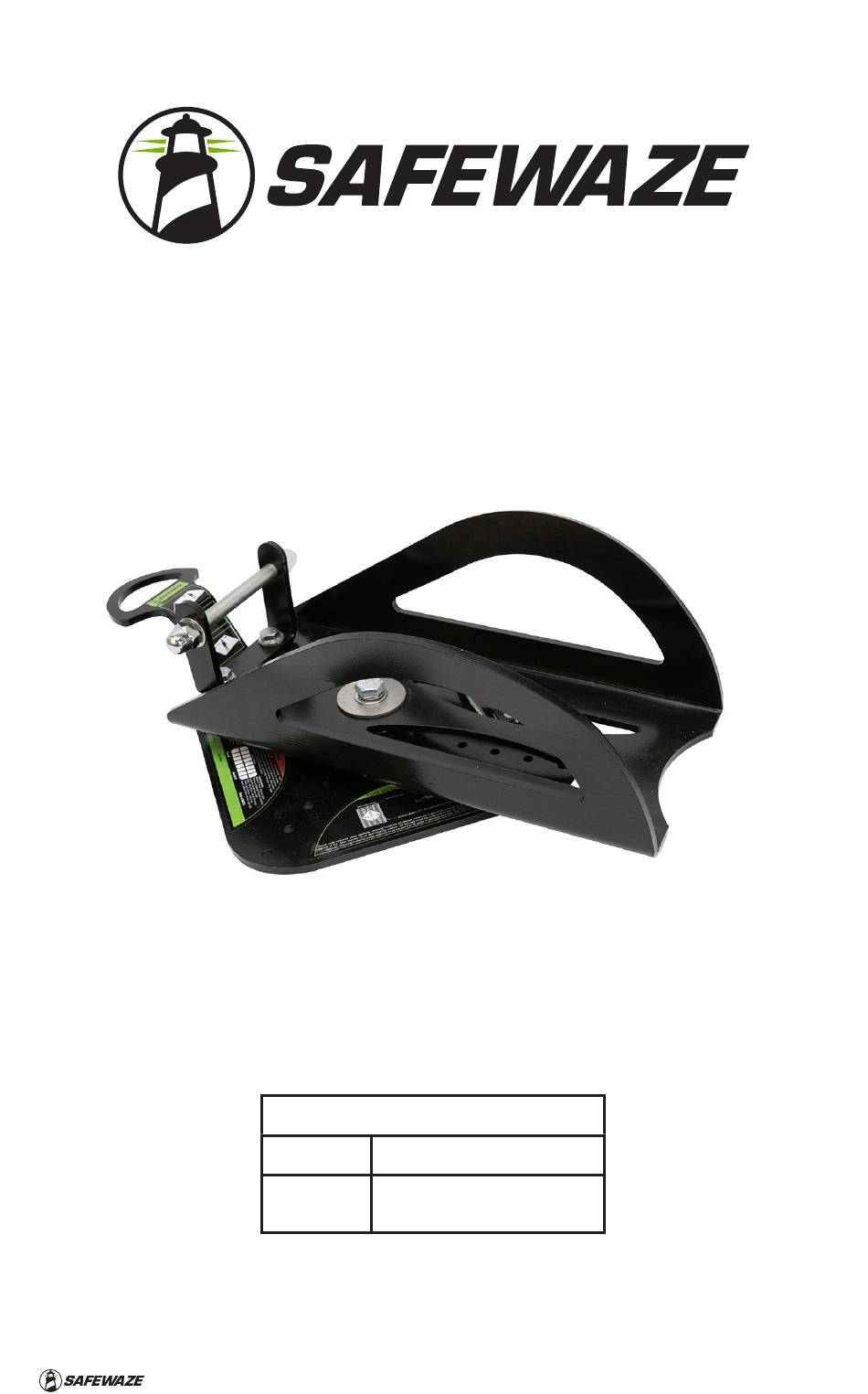

- Page 1 022-4084 SRL Swivel Roof Anchor Manual STANDARDS ANSI 1910.66, 1910.140, OSHA 1926.502 V3. 2023 Copyright Safewaze: 220-00076...
- Page 2 Read and understand instructions before using equipment! Do not throw away instructions! Always verify the latest revision of the Safewaze Manual is being utilized. Visit the Safewaze website, or contact Customer Service, for updated manuals. IMPORTANT: • Please refer to this manual for essential instructions on the use, care, or suitability of this equipment for your application.
- Page 3 Women who are pregnant and individuals considered minors must not use any Safewaze equipment. • Do not alter or misuse equipment. Only Safewaze, or entities authorized in writing by Safewaze, may make repairs to Safewaze fall protection equipment. •...
-
Page 4: Table Of Contents
Allowed Anchorage Applications ► ► Compatibility of Connectors ► ► Making Connections ► ► Installation / Use of Anchor ► ► Inspection / Maintenance ► ► 10.0 Labels ► ► 11.0 Annual Inspection Form ► ► V3. 2023 Copyright Safewaze: 220-00076... -
Page 5: Introduction / Intended Use
The anchor is designed to swivel 360° when used as a single point anchor with a suitable SRL. The 022-4084 is also suitable for use as an anchor point for Energy Absorbing Lanyards (EAL), Vertical Lifelines (VLL), or Horizontal Lifeline (HLL) systems. -
Page 6: Product Specifications Limitations
HEIGHT OF WORKER DECELERATION DISTANCE WORKING SURFACE TO DORSAL 60" MAX. PER D-RING ANSI Z359.13-2013 HARNESS STRETCH 1.5' SAFETY FACTOR 18" MAX. PER ANSI Z359.11-2021 HEIGHT OF WORKER WORKING SURFACE TO DORSAL D-RING SAFETY FACTOR V3. 2023 Copyright Safewaze: 220-00076... -
Page 7: Allowed Anchorage Applications
► 5.0 ALLOWED ANCHORAGE APPLICATIONS Personal Fall Arrest: Safewaze Anchors are designed as an anchor point to support a maximum of 1 PFAS when utilized for fall protection applications. The structure to which the anchor is attached must withstand loads applied in the directions permitted by the system of at least 5,000 lbs. -
Page 8: Compatibility Of Connectors
Ensure all connectors are fully closed and locked. Safewaze connectors (hooks, carabiners, and D-rings) are designed to be used only as specified in each product’s manual. See Figure 2 for examples of inappropriate connections. -
Page 9: Installation / Use Of Anchor
8.0 INSTALLATION / USE OF THE SRL SWIVEL ROOF ANCHOR The 022-4084 is for use in a horizontal orientation on a roof pitch up to 12:12. It is not designed for use in vertical orientation. Figures 3, 4, 5, and 6 illustrate the proper installation methods for Wood, Z-Purlin, Steel Decking, and Concrete respectively. - Page 10 Pre-drilled holes with 3/16’’ drill bit are required. See Figure 6 for correct installation placement. After proper installation, the 022-4084 can be used as a 360° anchor point for use with any SRL, including a Leading Edge Rated SRL (Class 2), or can function as an...
-
Page 11: Inspection / Maintenance
Inspect all components of the device including the anchor, fasteners, and labels. Refer to Figure 7 for each individual component. • Repairs: Only Safewaze, or entities authorized in writing by Safewaze, may make repairs to Safewaze fall protection equipment. -
Page 12: Labels
OSHA, up to 420 lbs. (190.5 kg) defects are present. Not repairable. Meets: OSHA 1926.502, 1910.140, 1910.66 Description: Serial #: Date of MFG: Part #: 022-4084 XXXXXXX SRL Swivel Roof Anchor MM/YYYY V3. 2023 Copyright Safewaze: 220-00076... - Page 13 72”. Use sixteen ¼-14 self-tapping screws. All screws must be sufficient length to have a minimum of 6 threads protruding through. Decking material wood spacers must be used to fill gaps in decking material. See user manual for additional details. V3. 2023 Copyright Safewaze: 220-00076...
- Page 14 THIS PAGE INTENTIONALLY LEFT BLANK...
-
Page 15: Annual Inspection Form
ANNUAL INSPECTION FORM Inspection Inspector: Pass/Fail: Comments/ Date: Corrective Action: V3. 2023 Copyright Safewaze: 220-00076... - Page 16 Address: 225 Wilshire Ave SW, Concord, NC 28025 Phone: 800-230-0319 Fax: 704-262-9051 Email: info@safewaze.com Website: safewaze.com...
