Summary of Contents for AG Neovo ME-3201

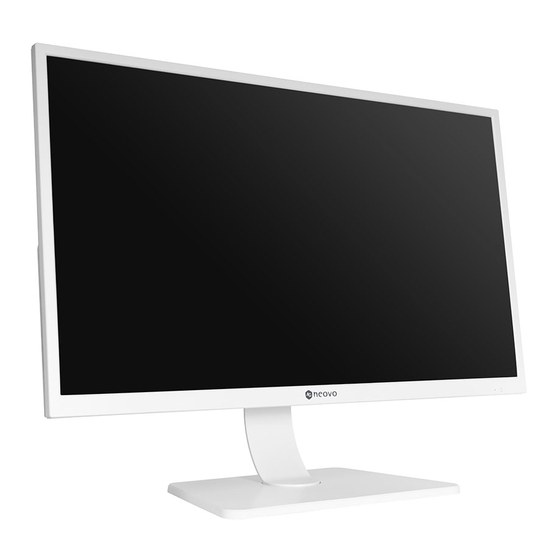

- Page 1 ME-3201 LCD Display User Manual www.agneovo.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY INFORMATION WEEE ................................3 PRECAUTIONS Notice ................................4 Cautions When Setting Up ........................... 4 Cautions When Using ........................... 5 Cleaning and Maintenance ........................... 6 Notice for the LCD Monitor ........................... 6 CHAPTER 1: PRODUCT DESCRIPTION 1.1 Package Contents ..........................7 1.2 Installation .............................. -
Page 3: Safety Information
SAFETY INFORMATION Waste Electrical and Electronie Equipment-WEEE Attention users in European Union private households Disposal of Waste Equipment by Users in Private Household in the European Union. This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. -
Page 4: Precautions
PRECAUTIONS PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Symbols used in this manual This icon indicates the existence of a potential hazard that could result in personal injury or damage to the product. This icon indicates important operating and servicing information. Notice •... -
Page 5: Cautions When Using
Users who have already mounted the monitor on the ceiling or any other horizontal surface overhead are strongly advised to contact AG Neovo for consultations and solutions to help ensure a most pleasurable and fulfilling monitor experience. -
Page 6: Cleaning And Maintenance
PRECAUTIONS Cleaning and Maintenance Do not attempt to service the LCD monitor yourself, refer to qualified service personnel. Opening or removing the covers may expose you to dangerous voltage or other risks. Notice for the LCD Monitor In order to maintain the stable luminous performance, it is recommended to use low brightness setting. Due to the lifespan of the lamp, it is normal that the brightness quality of the LCD monitor may decrease with time. -
Page 7: Chapter 1: Product Description
LCD Display Quick Start Guide HDMI Cable Power Cord ME-3201 Quick Start Guide ME-3201 LCD Monitor ME-3201 Eprel registration number: 1943355 Quick Start Guide ME-3201 ME-3201 LCD Monitor ME-3201 Eprel registration number: 1943355 Quick Start Guide ME-3201 LCD Monitor ME-3201 Eprel registration number: 1943355... -
Page 8: Installation
PRODUCT DESCRIPTION 1.2 Installation 1.2.1 Installing the Stand 1. Place the LCD display with the screen side down on a cushioned surface. 2. Attach the base to the stand and fix with the screws to join them tightly. 3. Attach the base stand to the LCD display and fix with the screws to join them tightly. Stand Base (M4x6mm - 4pcs) -
Page 9: Adjusting The Viewing Angle And Height
Note: Take measures to prevent the LCD display from falling down and lessen possible injury and damage to the display in case of earthquakes or other disasters. • Use only the 100 x 100 mm wall mount kit recommended by AG Neovo. All AG Neovo wall mount kits comply with VESA standard. -
Page 10: Overview
PRODUCT DESCRIPTION 1.3 Overview 1.3.1 Front View Display screen Remote control sensor: Receives command signals from the remote control. Power status indicator: Indicates the operating status of the display: • Lights Blue when the display is turned on. • Lights blinking blue when the display is in standby mode. •... -
Page 11: Control Buttons
PRODUCT DESCRIPTION 1.3.2 Control Buttons MENU AUTO Button Description Menu Button On Screen Display (OSD) (MENU) • Press to call out the OSD menu. During OSD menu • Use to confirm the selection or enter a submenu. Volume Bar Up / Down Button [ ] Up •... - Page 12 PRODUCT DESCRIPTION Button Description Auto Button During OSD menu (AUTO) • Use to close the OSD menu or exit a submenu. During volume adjustment • Use to close the volume bar. Power ON/OFF Power Button ( ) • Press once to turn the monitor ON. •...
-
Page 13: Rear View
PRODUCT DESCRIPTION 1.3.3 Rear View DC IN Connect with the supplied power adaptor. DP(DisplayPort) Connect DisplayPort signals input. HDMI Connect HDMI signals input. Audio Out Connector a audio device (3.5mm Stereo Audio Jack). -
Page 14: Chapter 2: Making Connections
CHAPTER 2: MAKING CONNECTIONS CAUTION: Make sure that the LCD monitor is not connected to the power outlet before making any connections. Connecting cables while the power is ON may cause possible electric shock or personal injury. 2.1 Connecting the AC Power 1. -
Page 15: Connecting Audio Devices
MAKING CONNECTIONS 2.3 Connecting Audio Devices • Audio Out Connector a audio device to the audio out jack of the LCD monitor. -
Page 16: Chapter 3: On Screen Display Menu
CHAPTER 3: ON SCREEN DISPLAY MENU 3.1 OSD Menu Tree Main Menu Submenu Reference Colour Contrast 0-100 Refer to page 18. Brightness 0-100 Color Temp. 9300 6500 5500 USER Language English Refer to page 19. Français Deutsch Italiano Русский Spanish Portuguese 日本語... - Page 17 ON SCREEN DISPLAY MENU 3.1 OSD Menu Tree Main Menu Submenu Reference Other Mode Refer to page 20, 21 VIVID TEXT Audio Volume 0-100 Signal Source AUTO HDMI Aspect Ratio 16:9 AUTO Anti Blue Light 0-100 Over Drive ANTI-BURN-IN Enable Interval (Hours) Reset Reset...
-
Page 18: Chapter 4: Adjusting The Lcd Monitor
CHAPTER 4: ADJUSTING THE LCD MONITOR 4.1 Colour Setting 1. Press the MENU button to call out the OSD window. 2. Press the ▲ or ▼ button to select and press the MENU button to enter the Colour menu. Contrast Contrast Brightness Brightness... -
Page 19: Osd Setting
ADJUSTING THE LCD MONITOR 4.2 OSD Setting 1. Press the MENU button to call out the OSD window. 2. Press the ▲ or ▼ button to select and press the MENU button to enter the OSD menu. Language English Language English OSD H. -
Page 20: Other Setting
ADJUSTING THE LCD MONITOR 4.3 Other Setting 1. Press the MENU button to call out the OSD window. 2. Press the ▲ or ▼ button to select and press the MENU button to enter the Other menu. Mode VIVID TEXT Mode VIVID TEXT... -
Page 21: Reset Setting
ADJUSTING THE LCD MONITOR Item Function Operation Range ANTI-BURN-IN Enable Press the ▲ or ▼ button Enable Anti-Burn-in function to protect to select the setting. the display from “burn-in” or “afterimage” symptoms when the display is not being in use for a period of time. Interval (Hours) Selects the interval time (hour) between activating the Anti-Burn-in... -
Page 22: Chapter 5: Appendix
CHAPTER 5: APPENDIX 5.1 Warning Messages When any of these warning messages appear, check the following items. Warning Message Cause Solution The resolution or the refresh rate of √ Change the resolution or the the graphics card of the computer refresh rate of the graphics Out of range is set too high. -
Page 23: Troubleshooting
APPENDIX 5.2 Troubleshooting Problems Possible Cause and Solution No picture. • Check if the LCD monitor is turned ON. • Check if the power cord is properly connected to the LCD monitor. • LED indicator is OFF. • Check if the power cord is plugged into the power outlet. •... -
Page 24: Chapter 6: Specifications
CHAPTER 6: SPECIFICATIONS 6.1 Monitor Specifications ME-3201 Panel Panel Type LED-Backlit TFT LCD (VA Technology) Panel Size 31.5" Max. Resolution FHD 1920 x 1080 Pixel Pitch 0.364 mm Brightness 300 cd/m² Contrast Ratio 20,000,000 (DCR) Viewing Angle (H/V) 178°/178° Display Colour 16.7M... -
Page 25: Monitor Dimensions
SPECIFICATIONS 6.2 Monitor Dimensions AG Neovo Company Address: 5F-1, No. 3-1, Park Street, Nangang District, Taipei, 11503, Taiwan. Copyright © 2024 AG Neovo. All rights reserved. ME-3201 Eprel registration number: 1943355 ME3210_UM_V010...
