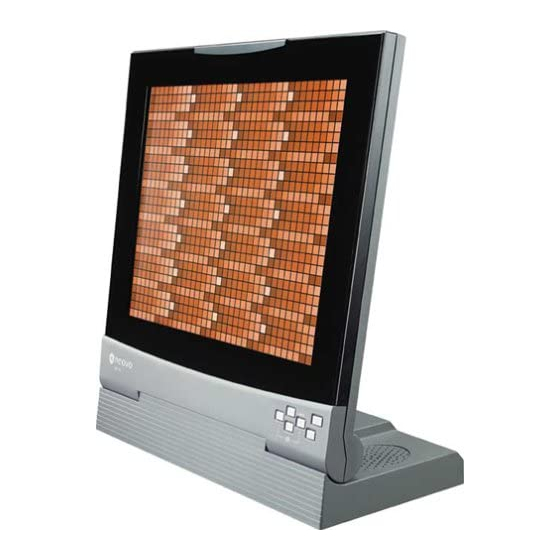

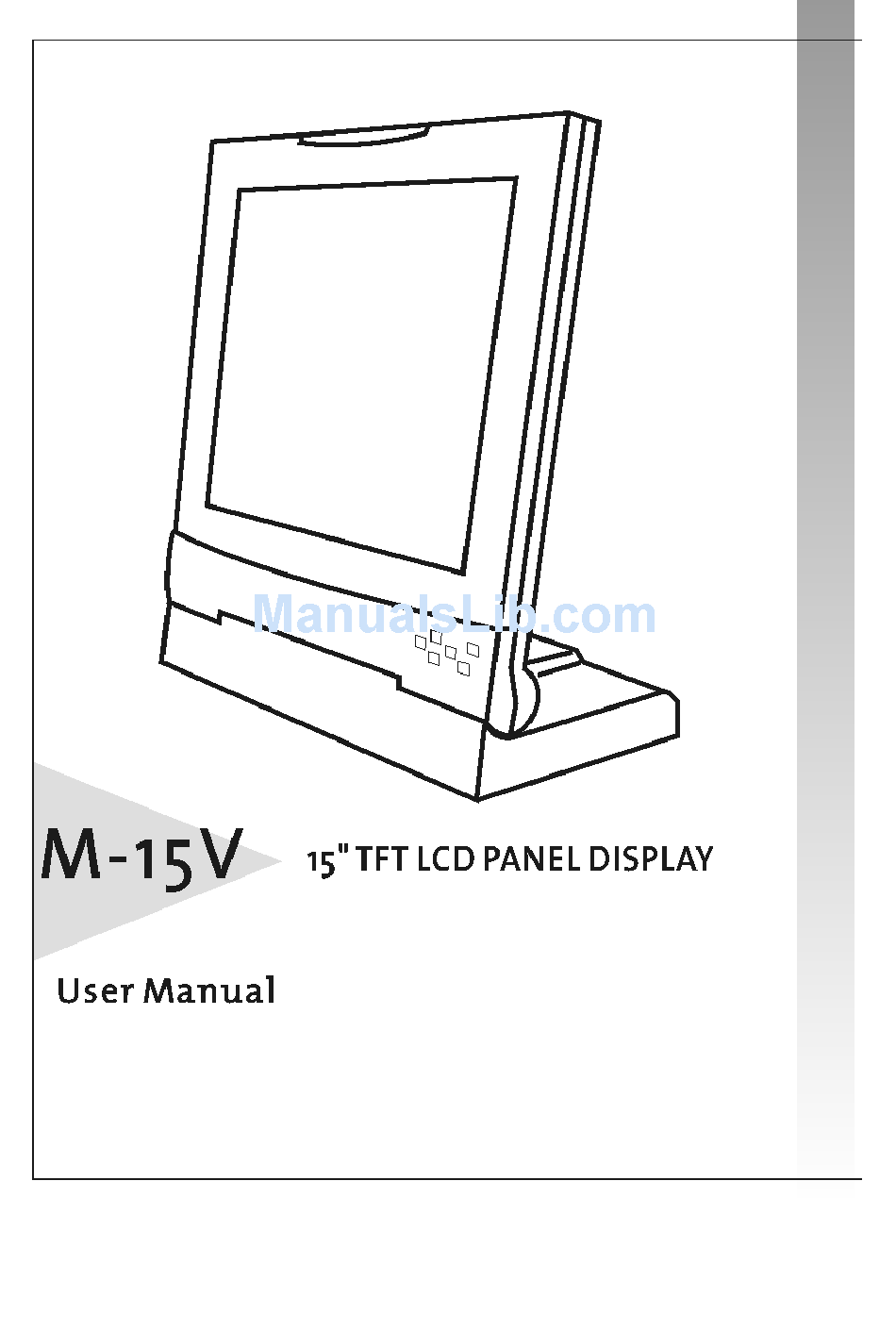

AG Neovo M-15V User Manual

15" tft lcd panel display
Hide thumbs Also See for M-15V:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M-15V and is the answer not in the manual?

Questions and answers

Related Manuals for AG Neovo M-15V

Summary of Contents for AG Neovo M-15V

  • Page 2: Table Of Contents

    PRECAUTIONS ...2 ...2 NSTALLATION ARNING ON POWER CONNECTION ...2 AINTENANCE ...3 RANSPORTATION GETTING STARTED ...4 ... 4 ACKAGE ONTENTS DENTIFYING ARTS AND ONTROLS ...7 ETUP ...7 ETUP ETTING THE INPUT SIGNAL PRIORITY NSTALLING INFORMATION FILE FOR CUSTOMIZING YOUR MONITOR...10 OSD G ORKING WITH ROUPS ...11...

  • Page 3: Precautions

    Installation Do not cover or block the ventilation holes in the case. · Do not install the monitor near heat sources such as radiators or air ducts, or · in a place subject to direct sunlight, excessive dust, mechanical vibration or shock.

  • Page 4: Transportation

    · covers may expose you to dangerous voltage potentials or other risks. Transportation When you transport this monitor for repair or shipment, use the original · carton and packing materials.

  • Page 5: Getting Started

    Package Contents Before using this monitor, check the following items are included in your carton box: Monitor (*1) · Power cord (*1) · D-sub 15-pin VGA signal cable (*1) · Video signal cable adapter (Mini-dim 8-pin connector to S-VHS connector and ·...

  • Page 6: Identifying Parts And Controls

    Identifying Parts and Controls Power switch Turns the monitor on or off. LED indicator The indicator lights up in green when the monitor is turned on, and lights up in orange when the monitor is in power saving mode. AUTO button Adjust the picture position and performance automatically.

  • Page 7: Rear View

    Rear View VGA In D-sub 15-pin connector for VGA signal. AC power inlet Provides AC power to the monitor. USB upstream port Connects to USB port of computer. USB downstream port Connects to USB devices. Line In Connects to input audio signal. Line Out Connects to external speakers.

  • Page 8: Setup

    Please follow the steps one by one to setup your monitor. Fold the stand of monitor and split the dust-proof plastic sheet Fold the stand out, so you can locate the monitor on the table. Split the dust-proof plastic sheet from the screen surface of monitor. Connect the monitor to the computer or video source With the computer or other video source switched off, connect the video signal cable to the monitor.
  • Page 9 Connect the power cord With the monitor switched off, connect the power cord to the monitor, and the other end of the power cord to a power outlet. Connect the audio cable. Connect the audio cable to the And connect the other end to the audio output port of computer or video source.

  • Page 10: Setting The Input Signal Priority

    Use 1024x768 resolution and press (If you connect to a video source such as DVD or VCR player,please skip this step.) Before starting to work, you are recommended to adjust the resolution of video signal from your computer to 1024x768 at 60Hz for best picture performance.

  • Page 11: Customizing Your Monitor

    Working with OSD Groups Press the UP OSD functions are divided into Groups. Icons representing these groups appear across the top of the OSD display. From left to right, the OSD Groups are: To select an OSD Group, with the OSD window open, press the DOWN buttons until the desired Group’s icon is highlighted and that Group’s setting items are listed.

  • Page 12: Selecting The Input

    The input source is detected automatically when you turn on the monitor. If more than one deivce is connected to the monitor, you can select the device you want from the Input Select screen. Push the DOWN Use the DOWN Use the INCREASE source.

  • Page 13: Center Image

    Horizontal & Vertical Position To fine-tune the display’s position on the monitor screen, select the item from the menu. Use the INCREASE desired on the 0-100 scale that appears at the bottom of the window. Push the AUTO selection menu. Center Image To center the display’s position on the monitor screen, select the item from the menu.

  • Page 14: Audio Setting

    Audio Setting Volume Adjust To adjust the monitor’s built-in speaker volume, select the item from the menu. Use the INCREASE desired on the 0-100 scale that appears at the bottom of the window. Push the AUTO button selection menu. Color Temperature Selecting a Color Temperature setting The following conditions are recommended for the available settings: Setting...

  • Page 15: Osd Position

    Push the AUTO button selection menu. Selecting a User-Defined Color Balance Setting You can fine-tune the red/green/blue picture settings according to your preference or specific application. Select the color category from the menu. Use the INCREASE Use the INCREASE desired on the 0-100 scale. Use the DOWN Push the AUTO button selection menu.

  • Page 16: Misc Setting

    Push the AUTO button selection menu. OSD Off Time To set the duration of the OSD window’s display, select the item from the menu. Use the INCREASE desired: off, 10, 20, 30, 40, 50, 60 seconds. Push the AUTO button selection menu.
  • Page 17 Recall To return the monitor’s settings to the factory default, select Recall from the menu. Use the INCREASE and NO. A. Select YES and push the AUTO button and the monitor is reset to the factory defaults. B. Select NO and push the AUTO button selection menu without making changes.

  • Page 18: Pip Video Quality (Optional)

    Select Information from the menu to display the monitor’s model number. PIP Video Quality (Optional) PIP (Picture In Picture) allows you to view a small video window in the middle of your full-screen display. Depending on your input source, this feature can be used for watching TV while using your computer.

  • Page 19: Pip Enable (Optional)

    PIP Enable (Optional) To enjoy your monitor’s PIP feature, you should first connect your input source to the rear of the monitor (see Making Connections on page 4). In the following screen, first enable PIP and then select the input source that is connected to the monitor. PIP Off/PIP On Select PIP ON from the menu.

  • Page 20: Pip Setting (Optional)

    PIP Setting (Optional) Window Size To resize the PIP window, select the item from the menu. Use the INCREASE 0/50/100 scale that appears at the bottom of the window. Push the AUTO selection menu. H-Position & V-Position To change the horizontal and vertical position of the PIP window on the monitor screen, select the item from the menu.

  • Page 21: Input Select (Optional)

    Input Select (Optional) If you only want to change the input source, you can select a simplified version of the following screen by pushing the DOWN VGA/CVBS/S-VIDEO To choose the monitor’s input source, select the item from the menu. Use the INCREASE source.

  • Page 22: Picture Adjustment (Av Mode) (Optional)

    If an external video device is connected to the monitor, the PICTURE ADJUSTMENT screens will automatically change as follows. BRIGHTNESS CONTRAST SATURATION SHARPNESS Brightness/Contrast/Saturation/Hue/Sharpness To adjust these settings, use the DOWN item from the menu. Use the INCREASE Push the AUTO selection menu.

  • Page 23: Av Mode (Optional)

    The AV Mode screen lets you adjust the contrast for the connected video device. Setting Mode1 Mode 2 Mode 3 MODE 1 MODE 2 MODE 3 To adjust these settings, use the DOWN item from the menu. Use the INCREASE Push the AUTO selection menu.

  • Page 24: Volume/Mute Adjust

    Volume/Mute Adjust Use the INCREASE of the monitor’s built-in stereo speakers. Volume Push the INCREASE Use INCREASE Push the AUTO button adjust window. Audio Enable/Mute Push the DECREASE Use the DECREASE Push the AUTO button Enable/Mute window. and DECREASE buttons to quickly adjust the volume VOLUME button to open the Volume adjust window.

  • Page 25: Osd Lock Function

    Use the OSD lock function to prevent unwanted adjustment of the monitor’s settings. Once the OSD controls are locked, none of the OSD settings including the volume is accessible. Lock/unlock OSD Refer to the following to lock the OSD: Press and hold the DOWN seconds.

  • Page 26: Warning Messages And Troubleshooting

    Warning Messages If the message appears on the screen CAN NOT DISPLAY THIS INPUT SIGNAL NO SIGNAL INPUT MAIN CONTROL MENU LOCKED NO VIDEO SIGNAL FROM VGA-IN WAIT FOR AUTOMATIC ADJUSTMENT USE 1024X768 FOR BEST PERFORMANCE Check the items The input signal is not acceptable by the monitor. Please check the video resolution and frequency range is ·...

  • Page 27: Troubleshooting

    Symptom No picture · LED power indicator is · not lit No picture · The LED power · indicator is orange color The texts are not solid · · Screen image is not · Centered properly Some lines missing · There are red, green, ·...

  • Page 28: Technical Features And Specifications

    Technical Features and Specifications Power Saving Function This monitor meets the power-saving guidelines set by VESA and Energy Star, as well as the more stringent NUTEK. If the monitor is connected to a computer that is VESA DPMS (Display Power Management Signaling) compliant, the monitor will automatically reduce power consumption in the three stages as shown below.

  • Page 29: Specifications

    Specifications Electrical characteristics Screen size Pixel format Horizontal frequency Vertical frequency Maximum pixel clock Connections Power Consumption Physical characteristics Weight Tilt Angle Temperature Humidity 15.0” (381mm) diagonal 1024 x 768 vertical stripe 30kHz – 60kHz 50Hz – 75Hz 80MHz Power: 3-pin AC plug 100 ~ 240V, 50~60Hz <...

  • Page 30: Regulations

    FCC compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 31: Tco'95

    TCO'95 Congratulations! You have just purchased a TCO'95 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.
  • Page 32 Fax: +46 8 782 92 07 Email (Internet): development@tco.se Current information regarding TCO'95 approved and labelled products may also be obtained via the Internet, using the address: http://www.tco-info.com/ TCO’95 is a co-operative project between TCO (The Swedish Confederation of Professional Employees), Naturskyddsforeningen (The Swedish Society for Nature Conservation) and NUTEK (The National Board for Industrial and Technical Development in Sweden).
