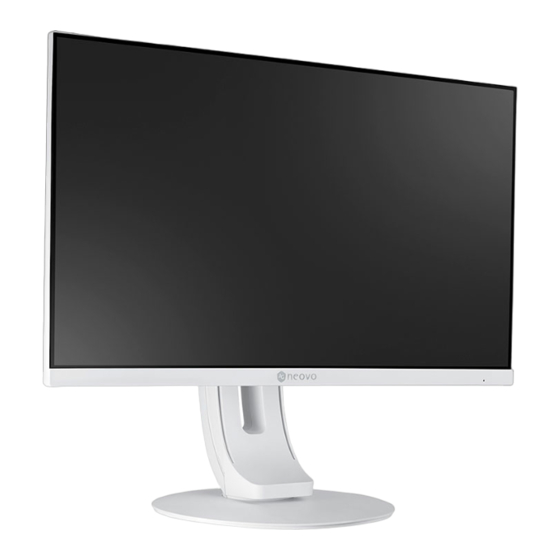

- Page 1 MD-2402 & MD-2702 LCD Monitor User Manual www.agneovo.com...
-
Page 2: Table Of Contents
Contents TABLE OF CONTENTS SAFETY INFORMATION WEEE ................................4 PRECAUTIONS Notice ................................5 Cautions When Setting Up ........................... 5 Cautions When Using ........................... 6 Cleaning and Maintenance ........................... 7 Notice for the LCD Monitor ........................... 7 CHAPTER 1: PRODUCT DESCRIPTION 1.1 Package Contents .......................... - Page 3 TABLE OF CONTENTS CHAPTER 7: SPECIFICATIONS 7.1 Monitor Specifications .......................... 33 7.2 Monitor Dimensions ..........................34 7.2.1 MD-2402 Dimensions ........................ 34 7.2.2 MD-2702 Dimensions ........................ 35...
-
Page 4: Safety Information
Safety Information SAFETY INFORMATION WEEE Information for users applicable in European Union countries The symbol on the product or its packaging signifies that this product has to be disposed separately from ordinary household wastes at its end of life. Please kindly be aware that this is your responsibility to dispose electronic equipment at recycling centers so as to help conserve natural resources. -
Page 5: Precautions
Precautions PRECAUTIONS PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Symbols used in this manual This icon indicates the existence of a potential hazard that could result in personal injury or damage to the product. This icon indicates important operating and servicing information. Notice •... -
Page 6: Cautions When Using
Users who have already mounted the monitor on the ceiling or any other horizontal surface overhead are strongly advised to contact AG Neovo for consultations and solutions to help ensure a most pleasurable and fulfilling monitor experience. -
Page 7: Cleaning And Maintenance
PRECAUTIONS Cleaning and Maintenance Do not attempt to service the LCD monitor yourself, refer to qualified service personnel. Opening or removing the covers may expose you to dangerous voltage or other risks. Notice for the LCD Monitor In order to maintain the stable luminous performance, it is recommended to use low brightness setting. Due to the lifespan of the lamp, it is normal that the brightness quality of the LCD monitor may decrease with time. -
Page 8: Chapter 1: Product Description
If any of them is missing or damaged, contact your dealer. LCD Monitor MD-2402 MD-2702 Stand and Screws Quick Start Guide Quick Start Guide MD-2402 & MD-2702 LCD Monitor MD-2402/MD-2702_Quick Guide_V010 www.agneovo.com (M4 x 10 mm) *4pcs Warranty Card Power Adapter Note: Must use only the supplied power adapter: ♦... -
Page 9: Installation
PRODUCT DESCRIPTION 1.2 Installation 1.2.1 Installing the Stand 1. Place the LCD monitor with the screen side down on a cushioned surface. 2. Attach the stand to the LCD monitor. a. Align and attach the stand to the rear of the LCD monitor. b. -
Page 10: Adjusting The Viewing Angle And Height
PRODUCT DESCRIPTION 1.2.2 Adjusting the Viewing Angle and Height For optimal viewing, it is recommended to look at the full face of the screen, then adjust the screen of the LCD monitor angle and height according to your preference. Hold the stand so that the screen does not topple when you make the adjustment. You are able to adjust the screen angle and height as below: Tilt angle: Pivot angle:... -
Page 11: Wall Mounting
Note: Take measures to prevent the LCD monitor from falling down and lessen possible injury and damage to the monitor in case of earthquakes or other disasters. • Use only the 100 x 100 mm wall mount kit recommended by AG Neovo. All AG Neovo wall mount kits comply with VESA standard. -
Page 12: Overview
PRODUCT DESCRIPTION 1.3 Overview 1.3.1 Control Panel and Indicator MD-2402 MD-2702 AUTO/SOURCE/EXIT ( ): Hot Key: Source Key • When OSD menu is OFF, press and hold the keypad keys listed below for at least 3 seconds to activate the Auto Adjustment function (for VGA input signal source). -
Page 13: Rear View
PRODUCT DESCRIPTION 1.3.2 Rear View HDMI HDMI MD-2402 MD-2702 DC IN HDMI DC IN: Connect with the supplied power adaptor. DisplayPort IN: Connect DisplayPort signals input. HDMI IN: Connect HDMI signals input. VGA IN: Connect VGA signals input. -
Page 14: Chapter 2: Making Connections
Chapter 2: Making Connections CHAPTER 2: MAKING CONNECTIONS CAUTION: Make sure that the LCD monitor is not connected to the power outlet before making any connections. Connecting cables while the power is ON may cause possible electric shock or personal injury. 2.1 Connecting the AC Power 1. -
Page 15: Connecting Input Source Signals
MAKING CONNECTIONS 2.2 Connecting Input Source Signals Input source signals can be connected with the following cables: • DisplayPort HDMI Connect one end of a DP cable to the DP connector of the LCD monitor and the other end to the DP connector of the computer. •... -
Page 16: Chapter 3: Using The Lcd Monitor
Chapter 3: Using the LCD Monitor CHAPTER 3: USING THE LCD MONITOR 3.1 Turning on the Power 1. Connect the power adapter to the DC power input at the rear of the LCD monitor. 2. Connect the power cord plug to a power outlet or a power supply. 3. -
Page 17: Using Auto Adjustment Function
USING THE LCD MONITOR 3.3 Using Auto Adjustment Function Press and hold the key for at least 3 seconds to perform the auto adjustment for the VGA source. This function automatically tunes the LCD monitor to its optimal setting, including horizontal position, vertical position, clock, and phase. -
Page 18: Displaying The Osd Menu
USING THE LCD MONITOR 3.5 Displaying the OSD Menu Press the key to open the OSD menu. Press the key to close the OSD menu. For more information on adjusting settings, refer to page 22. Brightness Contrast Brightness Picture Mode Standard Overdrive :Exit... - Page 19 USING THE LCD MONITOR The following menu appears on the screen when you press the , or key: OSD Locked To unlock the OSD menu, press and hold the key while the LCD monitor is off, and then press the key.
-
Page 20: Chapter 4: On Screen Display Menu
Chapter 4: On Screen Display Menu CHAPTER 4: ON SCREEN DISPLAY MENU 4.1 Using the OSD Menu 1. Press the key to call out the OSD window. Brightness Contrast Brightness Main Menu menu Picture Mode Standard option Overdrive Submenu :Exit :Move :Select AUTO... -
Page 21: Osd Menu Tree
ON SCREEN DISPLAY MENU 4.2 OSD Menu Tree Main Menu Submenu Reference Contrast Refer to page 22. Brightness ( Brightness Picture Mode Overdrive Clock Refer to page 24. Image Setting ( Phase H. Position V. Position Aspect Ratio Colour Temp. Refer to page 25. -
Page 22: Chapter 5: Adjusting The Lcd Monitor
Chapter 5: Adjusting the LCD Monitor CHAPTER 5: ADJUSTING THE LCD MONITOR 5.1 Brightness Setting 1. Press the key to call out the OSD window. 2. Press the key to select and press the key to enter the Brightness menu. Brightness Brightness Contrast... - Page 23 ADJUSTING THE LCD MONITOR Item Function Operation Range Selects a predefined picture setting. Press to select the Standard Picture Mode Note: If DCR is enabled, then the Picture DICOM setting. Mode is preset and cannot be changed. Activates DCR. This feature provides automatic adjustment of picture brightness (Dynamic and contrast at high speed and dynamic...
-
Page 24: Image Setup Setting
ADJUSTING THE LCD MONITOR 5.2 Image Setup Setting 1. Press the key to call out the OSD window. 2. Press the key to select and press the key to enter the Image Setting menu. Image Setting Image Setting Clock Clock Phase Phase H.Position... -
Page 25: Colour Temperature Setting
ADJUSTING THE LCD MONITOR 5.3 Colour Temperature Setting 1. Press the key to call out the OSD window. 2. Press the key to select and press the key to enter the Colour Temp. menu. Color Temp. Color Temp. Color Temp. Warm Color Temp. -
Page 26: Osd Setting
ADJUSTING THE LCD MONITOR 5.4 OSD Setting 1. Press the key to call out the OSD window. 2. Press the key to select and press the key to enter the OSD Setup menu. OSD Setting OSD Setting H.Position H.Position V.Position V.Position OSD Timer OSD Timer... -
Page 27: System Setting
ADJUSTING THE LCD MONITOR 5.5 System Setting 1. Press the key to call out the OSD window. 2. Press the key to select and press the key to enter the System menu. System System Input Select Auto Input Select Auto DDC/CI DDC/CI Reset... -
Page 28: Chapter 6: Appendix
Chapter 6: Appendix CHAPTER 6: APPENDIX 6.1 Warning Messages When any of these warning messages appear, check the following items. Warning Message Cause Solution The resolution or the refresh rate of √ Change the resolution or the the graphics card of the computer refresh rate of the graphics card. -
Page 29: Timing
CHAPTER 6: APPENDIX 6.2 Timing VESA MODES Mode Resolution Total Horizontal Vertical Nominal Sync Nominal Sync Nominal Frequency Polarity Frequency Polarity Clock ± 1kHz ± 1kHz (MHz) 640 x 480 @ 60 Hz 800 x 525 31.469 59.940 25.175 640 x 480 @ 72 Hz 832 x 520 37.861 72.809... -
Page 30: Troubleshooting
APPENDIX 6.3 Troubleshooting Problems Possible Cause and Solution No picture. • Check if the LCD monitor is turned ON. • Check if the power cord is properly connected to the LCD monitor. • LED indicator is OFF. • Check if the power cord is plugged into the power outlet. •... -
Page 31: Transporting The Lcd Monitor
APPENDIX 6.4 Transporting the LCD Monitor To transport the LCD monitor for repair or shipment, place the monitor in its original packaging box. 1. Remove the stand. Remove the screws securing the stand to the LCD monitor. Then remove the stand. 2. - Page 32 APPENDIX Note: • It is recommended to use the original packaging box. • When repacking, carefully place the LCD monitor in its box and protect the glass panel from touching any object.
-
Page 33: Chapter 7: Specifications
Chapter 7: Specifications CHAPTER 7: SPECIFICATIONS 7.1 Monitor Specifications MD-2402 MD-2702 Panel Panel Type LED-Backlit TFT LCD (VA Technology) LED-Backlit TFT LCD (VA Technology) Panel Size 23.8'' 27.0'' Max. Resolution FHD 1920 x 1080 FHD 1920 x 1080 Pixel Pitch 0.275 mm... -
Page 34: Monitor Dimensions
SPECIFICATIONS 7.2 Monitor Dimensions 7.2.1 MD-2402 Dimensions 134.7 55.2 539.5 527.0 219.8 100.0 219.8 (M4xL10)x4 249.0... -
Page 35: Md-2702 Dimensions
SPECIFICATIONS 7.2.2 MD-2702 Dimensions 134.6 55.1 256.3 256.3 612.6 597.9 (M4x10)x4 47.8 AG Neovo Company Address: 5F-1, No. 3-1, Park Street, Nangang District, Taipei, 11503, Taiwan. Copyright © 2021 AG Neovo. All rights reserved. MD-2402/MD-2702 Eprel registration number: 775395/775402 MD2420/MD2720_UM_V010...
