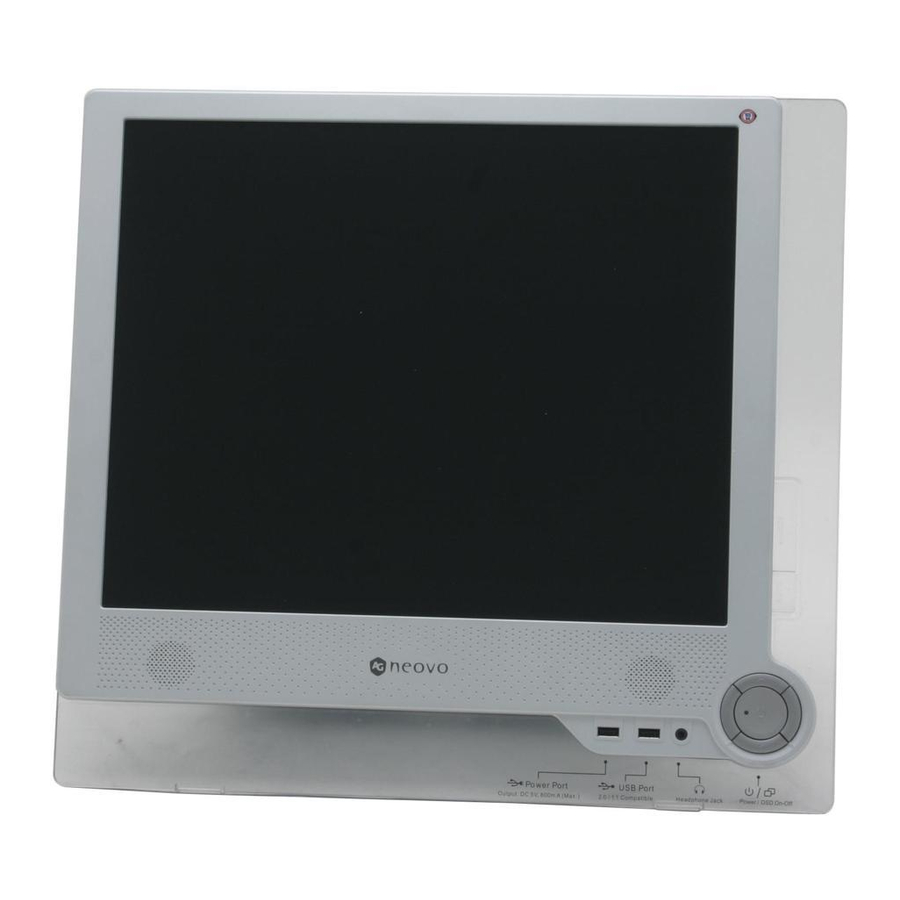

19" LCD DISPLAY
M-19
FEATURES
Distinctive exterior design with unique
crystal front bezel
Intelligent avMode
audio-visual modes
TM
Exclusive iRelax
eyestrain and fatigue
Convenient USB port and power port
Dual digital and analog inputs
Integrated speakers with headphone jack
Swift 8ms response time
Crisp 500 contrast ratio
Easy-to-reach luminance and audio hot keys
for instant adjustment
Intuitive OSD and auto-adjustment function

Kensington security socket
VESA standard for wall and arm mounting
Cable management design
Two available colors: silver and black
TM
provides preset
program helps reduce
SPECIFICATION
Panel Panel Type
Panel Size
Max. Resolution
Pixel Pitch
Brightness
Contrast Ratio
Surface Treatments
Viewing Angle (H/V) 150°/130° (Typical)
Display Color
Response Time
Frequency (H/V)
Max. Pixel Clock
Life Time
Input Analog
Digital
USB Port Right: USB Port
Left: Power Port
Audio Audio In
Audio Out
Speaker
Connector Power
Tilt Tilt
Mounting VESA FPMPMI
Dimensions Net (W x H x D)
Packing (W x H x D)
Weight Net Weight
Gross Weight
Regulation Certifications &
Approval Compliance
VESA
Power Power AC
Consumption
Packing 1 Pallet
20' Container
40' Container
All specifications are subject to change without prior notice
The name AG Neovo is a trademark of Associated Industries China, Inc.
All other trademarks are the property of their respective owners.
TFT LCD
19.0" (483mm)
SXGA 1280 x 1024
0.294mm
250cd/m 2 (Typical)
500:1 (Typical)
Hard Coating (3H), Anti-glare
Treatment
16.7M
8ms (GTG)
H: 30kHz – 80kHz
V: 50Hz – 75Hz
135MHz
40,000hrs (Minimum)
15-Pin D-Sub
29-Pin DVI-D
2.0/1.1 Compatible
DC 5V, 800mA (Max.)
3.5mm Audio Line-in
3.5mm Headphone Jack
2W x 2
3-Pin AC Plug
+10° ~ +30°
Yes (100mm)
469 x 431 x 70mm
(18.5" x 17.0" x 2.8")
567 x 530 x 196mm
(22.3" x 20.9" x 7.7")
5.6Kg (12.3lbs)
8.2Kg (18.1lbs)
UL/CUL, TUV/GS, NORDIC,
CCC, CB, TCO 99, GOST, FCC,
VCCI, CE, BSMI, ISO
13406-2, WEEE, RoHS
DDC 1/2B, DPMS
100 - 240V, 50 - 60Hz
<55W (On)
<8W (Stand-by)
<2W (Off)
32/40 Cartons
464 Sets
960 Sets
www.agneovo.com
Copyright © 2007 AG Neovo. All rights reserved.
Version 8.0, 20070111
