Summary of Contents for AG Neovo MD-24

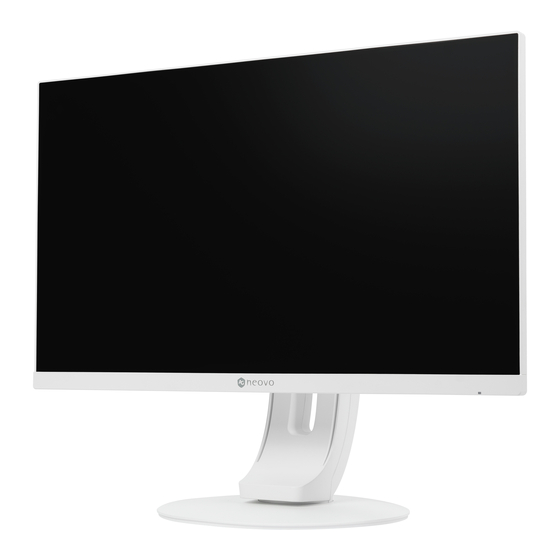

- Page 1 MD-24 & MD-27 LED-Backlit Display User Manual displays.agneovo.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY INFORMATION Federal Communications Commission (FCC) Notice (U.S. Only) ..............4 Waste Electrical and Electronic Equipment-WEEE ..................5 EMC Information ............................6 PRECAUTIONS Notice ................................9 Cautions When Setting Up ........................... 9 Cautions When Using ..........................10 Cleaning and Maintenance ......................... - Page 3 TABLE OF CONTENTS CHAPTER 6: APPENDIX 6.1 Warning Messages ..........................34 6.2 Troubleshooting ............................ 35 6.3 Transporting the LCD Display ......................36 CHAPTER 7: SPECIFICATIONS 7.1 Display Specifications .......................... 38 7.2 Display Dimensions ..........................39...
-
Page 4: Safety Information
Safety Information SAFETY INFORMATION Federal Communications Commission (FCC) Notice (U.S. Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 5: Waste Electrical And Electronic Equipment-Weee
SAFETY INFORMATION Waste Electrical and Electronic Equipment-WEEE Disposal of Waste Equipment by Users in Private Household in the European Union. This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. -
Page 6: Emc Information
MD-24 and MD-27. The MD-24 and MD-27 should not be used adjacent to or stacked with other equipment. If adjacent or stacked use is necessary, the equipment or system should be observed to verify normal operation in the configuration in which it will be used. - Page 7 Guidance and manufacturer’s declaration – electromagnetic immunity The MD-24 and MD-27 is intended for use in the electromagnetic environment specified below. The customer or the user of The MD-24 and MD-27 should assure that it is used in such an environment. Not Life-supporting Medical Equipment.
- Page 8 Recommended separation distances between portable and mobile RF communications equipment and the MD-24 and MD-27 The MD-24 and MD-27 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the MD-24 and MD-27 can help prevent...
-
Page 9: Precautions
PRECAUTIONS PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Symbols used in this manual This icon indicates the existence of a potential hazard that could result ISO 7010-M002: Follow instructions for in personal injury or damage to the product. This icon indicates complies with the This icon indicates important operating 93/42/EEC, EN60601-1, EN 60601-1-2... -
Page 10: Cautions When Using
Users who have already mounted the display on the ceiling or any other horizontal surface overhead are strongly advised to contact AG Neovo for consultations and solutions to help ensure a most pleasurable and fulfilling display experience. -
Page 11: Cleaning And Maintenance
PRECAUTIONS Cleaning and Maintenance Disconnect this equipment from any AC outlet before cleaning. Do not use liquid or spray detergents for cleaning. Use a damp cloth. Keeping to clean your monitor by monthly. Use a soft cloth to clean the LCD display periodically. The screen surface may be cleaned using a soft clean cloth moistened with 50/50 mixture of water and isopropyl alcohol. - Page 12 PRECAUTIONS Notice for the LCD Display The intended use of the MD-24, MD-27 is to serve as a LCD monitor for integration with the hospital system.It is designed for general purpose for adults using at hospital environment,continuous operation. For displaying and viewing of images for reference. The use of this device does not require any direct contact with patients.
-
Page 13: Chapter 1: Product Description
MD-27 LCD display Stand Stand screws Power cord Power adapter MD-24 & MD-27 Quick Start Guide MD-24 & MD-27 LED-Backlit Display MD-24/MD-27_Quick Guide_V010 www.agneovo.com D-Sub (VGA) cable Audio cable Quick start guide Warranty card Note: • Use only the supplied power cord and power adapter. -
Page 14: Installation
PRODUCT DESCRIPTION 1.2 Installation 1.2.1 Installing the Stand 1. Place the LCD display with the screen side down on a cushioned surface. 2. Attach the stand to the LCD display. a. Align and attach the stand to the rear of the LCD display. b. -
Page 15: Adjusting The Viewing Angle And Height
PRODUCT DESCRIPTION 1.2.2 Adjusting the Viewing Angle and Height For optimal viewing, it is recommended to look at the full face of the screen, then adjust the screen of the LCD display angle and height according to your preference. Hold the stand so that the screen does not topple when you make the adjustment. You are able to adjust the screen angle and height as below: Tilt angle: Pivot angle:... -
Page 16: Wall Mounting
Note: Take measures to prevent the LCD display from falling down and lessen possible injury and damage to the display in case of earthquakes or other disasters. • Use only the 100 x 100 mm wall mount kit recommended by AG Neovo. All AG Neovo wall mount kits comply with VESA standard. -
Page 17: Control Buttons
PRODUCT DESCRIPTION 1.3 Control Buttons HDMI D-SUB ] AUTO/SOURCE/EXIT [ ] Down • Call out the Source quick menu. Then • Call out the Eco Mode quick menu. press the button repeatedly to switch Then press the button to select the the input source. -
Page 18: Overview
PRODUCT DESCRIPTION 1.4 Overview 1.4.1 Front View MD-24 MD-27 Display screen Control buttons Press the button to perform its function. For more information about each button, refer to page... -
Page 19: Rear View
PRODUCT DESCRIPTION 1.4.2 Rear View HDMI D-SUB HDMI D-SUB MD-24 MD-27 HDMI D-SUB DC Power Input Use to connect the power adapter. HDMI connector Use to connect an HDMI cable for digital input signal. D-SUB (VGA) connector Use to connect a D-Sub (VGA) cable for analogue input signal. -
Page 20: Chapter 2: Making Connections
CHAPTER 2: MAKING CONNECTIONS CAUTION: Make sure that the LCD display is not connected to the power outlet before making any connections. Connecting cables while the power is ON may cause possible electric shock or personal injury. 2.1 Connecting the AC Power 1. -
Page 21: Connecting Input Source Signals
MAKING CONNECTIONS 2.2 Connecting Input Source Signals Input source signals can be connected with either of the following cables: • VGA Connect one end of a D-Sub (VGA) cable to the D-SUB HDMI D-SUB (VGA) connector of the LCD display and the other end to the VGA connector of the computer. -
Page 22: Connecting Audio Devices
MAKING CONNECTIONS 2.3 Connecting Audio Devices 1. Connect one end of an audio cable to the audio port at the rear of the LCD display. 2. Connect the other end of an audio cable to the audio out port of the computer. -
Page 23: Chapter 3: Using The Lcd Display
CHAPTER 3: USING THE LCD DISPLAY 3.1 Turning on the Power 1. Plug the power cord to a power outlet or power supply. 2. Press the button to turn the LCD display on. Power button When the LCD display is turned on, press the button to turn off the LCD display. -
Page 24: Adjusting The Volume
USING THE LCD DISPLAY 3.3 Adjusting the Volume 1. Press the button to call out the Volume quick menu. Volume 2. Press the button to adjust the volume. Note: • During volume or menu setting adjustment, press and hold the button to change the values continuously. -
Page 25: Locking The Osd Menu
USING THE LCD DISPLAY 3.4 Locking the OSD Menu To lock the OSD menu, press and hold the button while the LCD display is off, and then press the button to turn the LCD display on. Menu button Power button To unlock the OSD menu, press and hold the button while the LCD display is off, and then press the button to turn the LCD display on. -
Page 26: Chapter 4: On Screen Display Menu
CHAPTER 4: ON SCREEN DISPLAY MENU 4.1 Using the OSD Menu 1. Press the button to call out the OSD window. T P V Luminance Contrast Brightness Main Submenu menu Eco Mode Standard Menu option :Exit :Move :Select AUTO MENU 2. -
Page 27: Osd Menu Tree
ON SCREEN DISPLAY MENU 4.2 OSD Menu Tree Main Menu Submenu Reference Contrast Refer to page 29. Luminance ( Brightness Eco Mode Text Internet Game Movie Sports Standard Clock Refer to page 30. Image Setup ( Phase H. Position V. Position Image Ratio Wide Color Temp. - Page 28 ON SCREEN DISPLAY MENU Main Menu Submenu Reference H. Position Refer to page 32. OSD Setup ( V. Position Timeout Language English Spanish French Portuguese Russian Simplified Chinese Traditional Chinese Korean Input Select Auto Refer to page 33. Extra ( HDMI D-SUB DDC/CI...
-
Page 29: Chapter 5: Adjusting The Lcd Display
CHAPTER 5: ADJUSTING THE LCD DISPLAY 5.1 Luminance Setting 1. Press the button to call out the OSD window. 2. Press the button to select and press the button to enter the Luminance menu. T P V T P V Luminance Luminance Contrast... -
Page 30: Image Setup Setting
ADJUSTING THE LCD DISPLAY 5.2 Image Setup Setting 1. Press the button to call out the OSD window. 2. Press the button to select and press the button to enter the Image Setup menu. T P V T P V Image Setup Image Setup Clock... -
Page 31: Color Temperature Setting
ADJUSTING THE LCD DISPLAY 5.3 Color Temperature Setting 1. Press the button to call out the OSD window. 2. Press the button to select and press the button to enter the Color Temp. menu. T P V T P V Color Temp. -
Page 32: Osd Setup Setting
ADJUSTING THE LCD DISPLAY 5.4 OSD Setup Setting 1. Press the button to call out the OSD window. 2. Press the button to select and press the button to enter the OSD Setup menu. T P V T P V OSD Setup OSD Setup H.Position... -
Page 33: Extra Setting
ADJUSTING THE LCD DISPLAY 5.5 Extra Setting 1. Press the button to call out the OSD window. 2. Press the button to select and press the button to enter the Extra menu. T P V T P V Extra Extra Input Select Auto Input Select... -
Page 34: Chapter 6: Appendix
Chapter 6: Appendix CHAPTER 6: APPENDIX 6.1 Warning Messages When any of these warning messages appear, check the following items. Warning Message Cause Solution The resolution or the refresh √ Change the resolution or the rate of the graphics card of refresh rate of the graphics Input Not Support the computer is set too high. -
Page 35: Troubleshooting
APPENDIX 6.2 Troubleshooting Problems Possible Cause and Solution No picture. • Check if the LCD display is turned ON. • Check if the power adapter is properly connected to the LCD display. • LED indicator is OFF. • Check if the power cord is plugged into the power outlet. •... -
Page 36: Transporting The Lcd Display
APPENDIX 6.3 Transporting the LCD Display To transport the LCD display for repair or shipment, place the display in its original packaging box. 1. Remove the stand. a. Place the LCD display with the screen side down on a cushioned surface. b. - Page 37 APPENDIX Note: • It is recommended to use the original packaging box. • When repacking, carefully place the LCD display in its box and protect the glass panel from touching any object.
-
Page 38: Chapter 7: Specifications
Chapter 7: Specifications CHAPTER 7: SPECIFICATIONS 7.1 Display Specifications MD-24 MD-27 Panel Panel Type LED-Backlit TFT LCD (IPS Technology) LED-Backlit TFT LCD (VA Technology) Panel Size 23.8” 27.0” Max. Resolution FHD 1920 x 1080 FHD 1920 x 1080 Pixel Pitch 0.275 mm... -
Page 39: Display Dimensions
(outline dimension) 611.9 256.0 100.0 256.0 (opening dimension) 606.1 (M4x10)x4 HDMI D-SUB 23.0 565.9 23.0 306.0 306.0 249.0 AG Neovo Company Address: 5F-1, No. 3-1, Park Street, Nangang District, Taipei, 11503, Taiwan. Copyright © 2019 AG Neovo. All rights reserved. MD2700/MD24A0_UM_V012...
