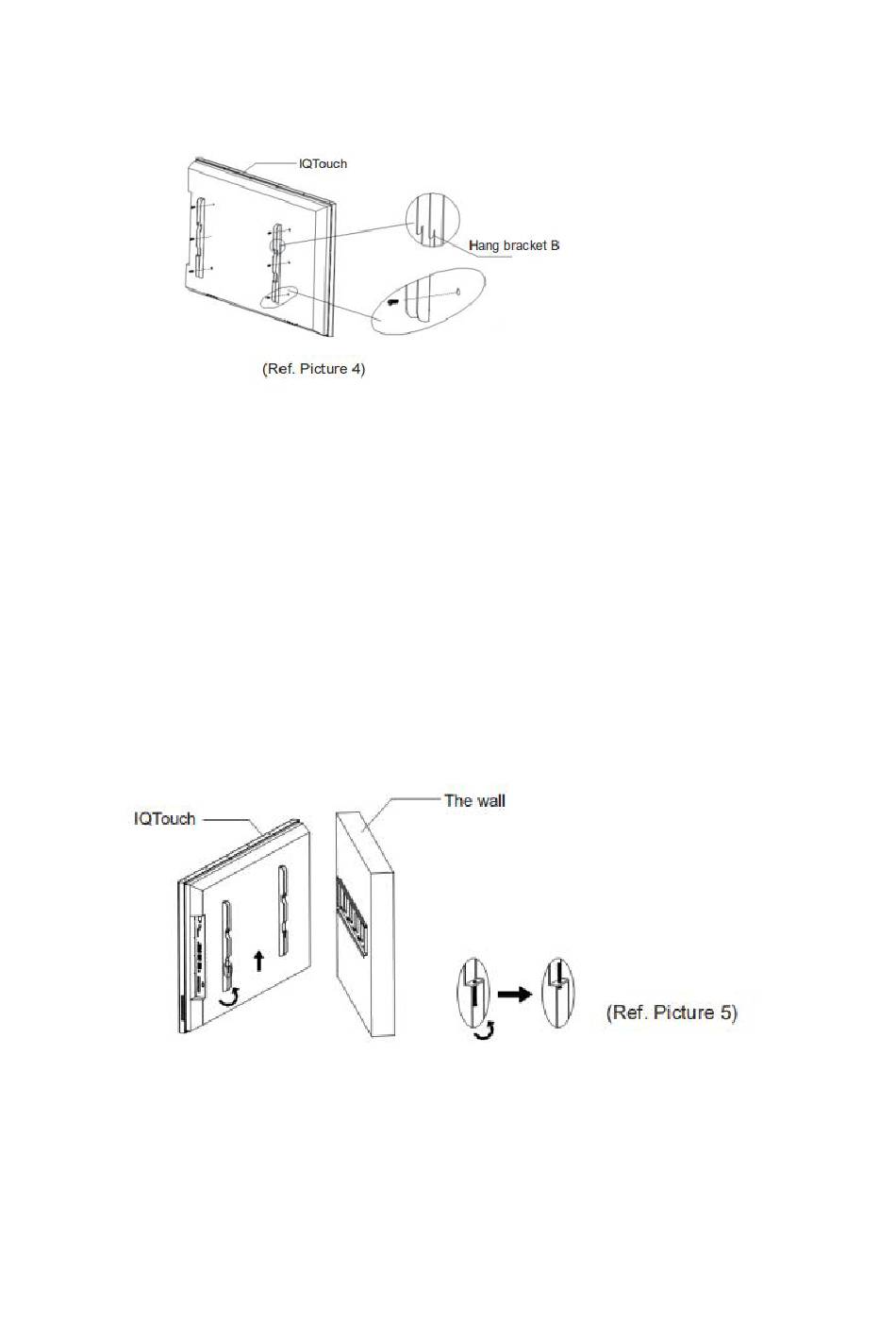

Use screws fix the hang bracket B at the back of IQTouch. Please check the direction
of hang bracket B before installation. (Ref. Picture 4)
Step5: Hang IQTouch on the wall mounting bracket A
Hanging the left &right hang bracket B to the wall mounting bracket A, please ensure
two hang brackets B total hang on wall mounting bracket A, then tighten the screws
of hang bracket B to prevent it slide. (Ref. Picture5)
7
