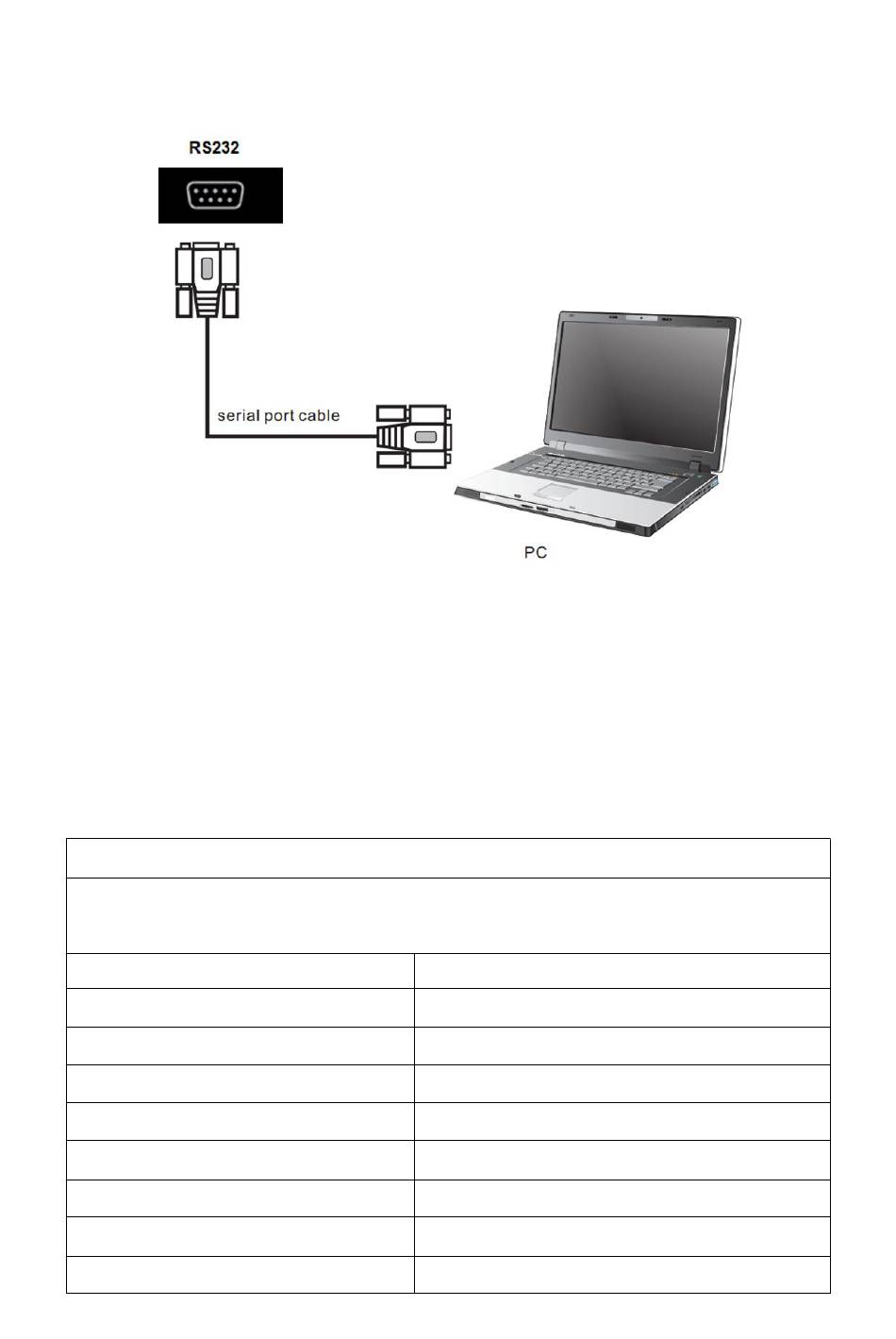

7.4. RS232

1) Connect a serial port cable with the device.
2) Plug the POWER cord and switch it on from the rear panel.
3) After connecting the central control system and unit, you can use some of the
function such as power on/off or adjust the volume etc.
RS232 code list
16-byte command, baud rate 9600
Start code 99, client code 23, function ID code, device ID code (generally 01
without special instructions), check code + function ID code = FF, end code AA
Function
Power on
Power off
Android
VGA1
HDMI1
HDMI2
HDMI3
DP
RS232 Code for Android Firmware
Required Commands(Hex)
AA BB CC 01 00 00 01 DD EE FF
AA BB CC 01 01 00 02 DD EE FF
AA BB CC 02 0A 00 0C DD EE FF
AA BB CC 02 03 00 05 DD EE FF
AA BB CC 02 06 00 08 DD EE FF
AA BB CC 02 07 00 09 DD EE FF
AA BB CC 02 05 00 07 DD EE FF
AA BB CC 02 11 00 13 DD EE FF
