Step2: Expansion bolt installation

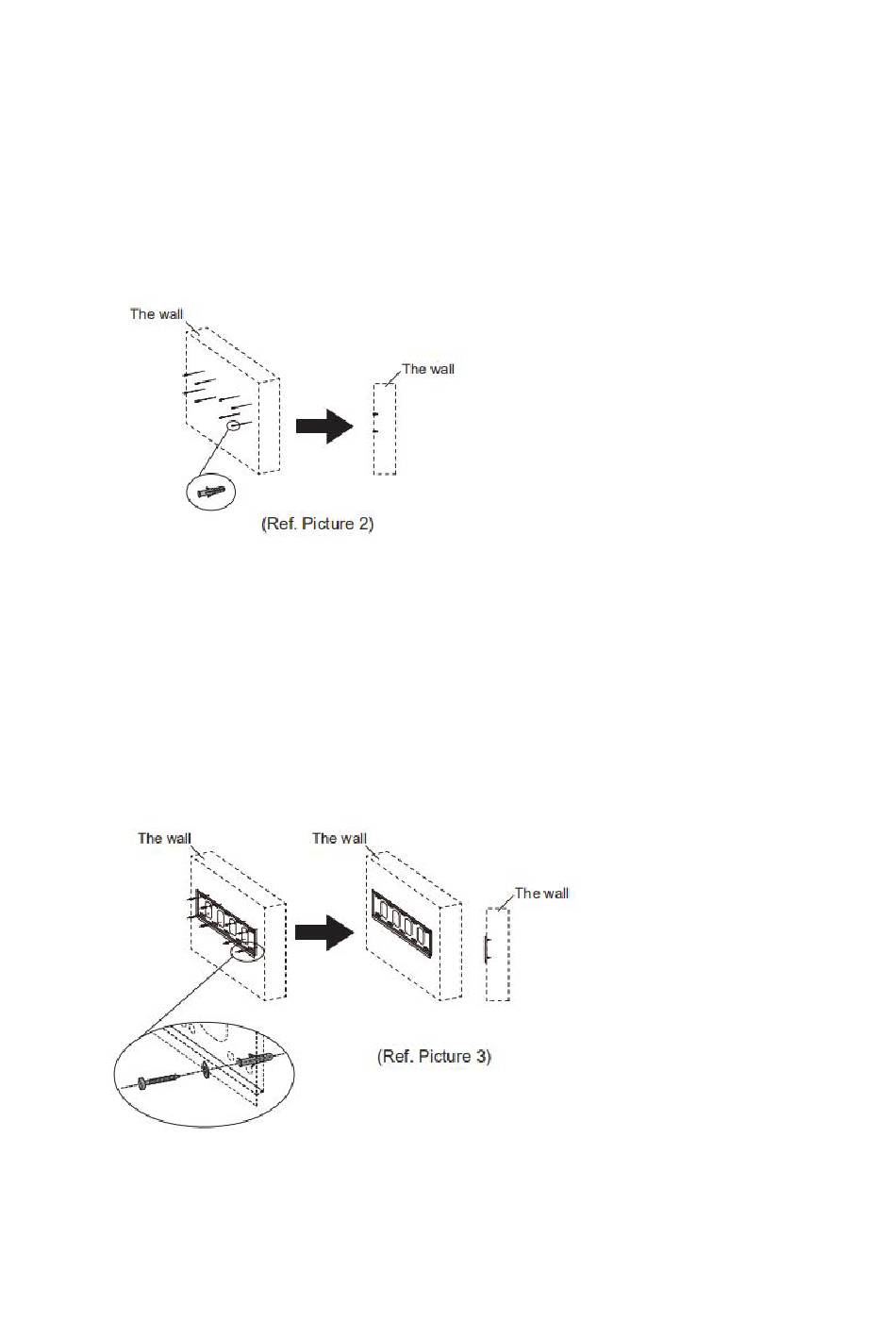

Press the expansion bolt into 8 holes. (Ref. Picture 2)
Step3:Wall mounting bracket A installation
Install the wall mounting bracket A with 8pcs screws and gaskets. Please ensure that
the wall mounting bracket A is installed horizontally. (Ref. Picture3)
Step4: Install the left& right hang bracket B to IQTouch.
6
