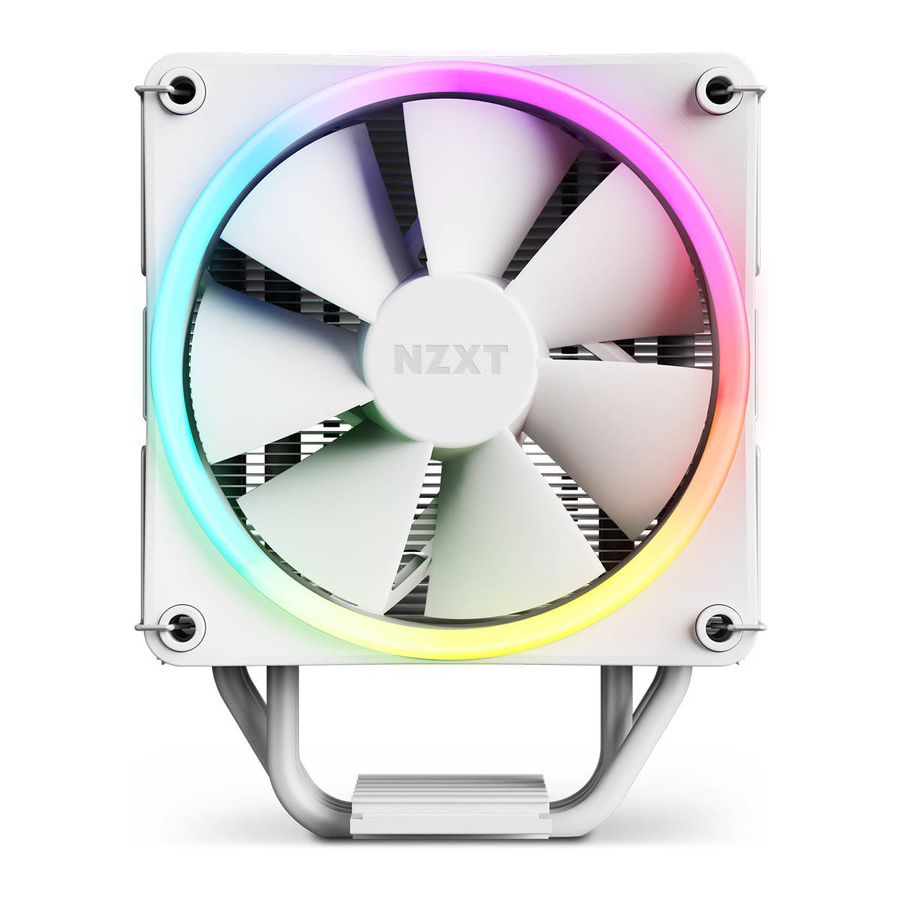

NZXT T120, T120RGB - CPU Air Cooler Manual

COMPONENT LIST

INSTALLATION

STEP 1. (INTEL)
Install the Intel backplate (LGA 1700 or 1200/115X) on the rear of the motherboard.

INTEL SOCKET 1700 or 1200/115X

STEP 1. (AMD)
Remove the stock AMD mounting bracket and keep the original backplate on the rear of the motherboard.

AMD SOCKET AM5, AM4, STRX4* & TR4*

STEP 2. (INTEL)
Pre-Installed

STEP 2. (AMD)
Install the retention brackets to the heatsink and secure it with the countersunk screws.

STEP 3.
Peel off the protector sticker from the CPU contact surface.

STEP 4.
Apply the thermal paste on the CPU.

STEP 5. (INTEL)
Place the heatsink with the retention bracket onto the CPU and ensure the bracket screws go into the backplate holes. Secure the screws in the order as shown.

STEP 5. (AMD)
Install the four AMD sleeves and then place the heatsink with the retention bracket. Secure it with the #6-32 screws in the order as shown.

STEP 6.
Secure the fan to the cooler with the fan clips.

STEP 7.
Connect the 4-Pin PWM fan cable to an open header on your motherboard or fan controller.

ONLY FOR T120RGB OPTION 5V ARGB

OPTION 1
NZXT RGB lighting channel on the motherboard.

OPTION 2
NZXT RGB lighting channel on your lighting controller.

OPTION 3
5V ARGB (Female) to NZXT RGB (Male) Adapter.

Do not connect to 12V RGB on motherboards

DOWNLOADING NZXT CAM

To enable control of your RGB Fans, download and install CAM from nzxt.com/software/cam.

SUPPORT AND SERVICE

If you have any questions or problems with the NZXT product you purchased, please don't hesitate to contact us using our support system. support.nzxt.com

Please include a detailed explanation of your problem and your proof of purchase. For comments and suggestions, you can e-mail our design team, designer@nzxt.com. Lastly we would like to thank you for your support by purchasing this product.

For more information about NZXT, please visit us online.
NZXT Website: NZXT.com
