NZXT HD60 Manual

COMPONENTS LIST

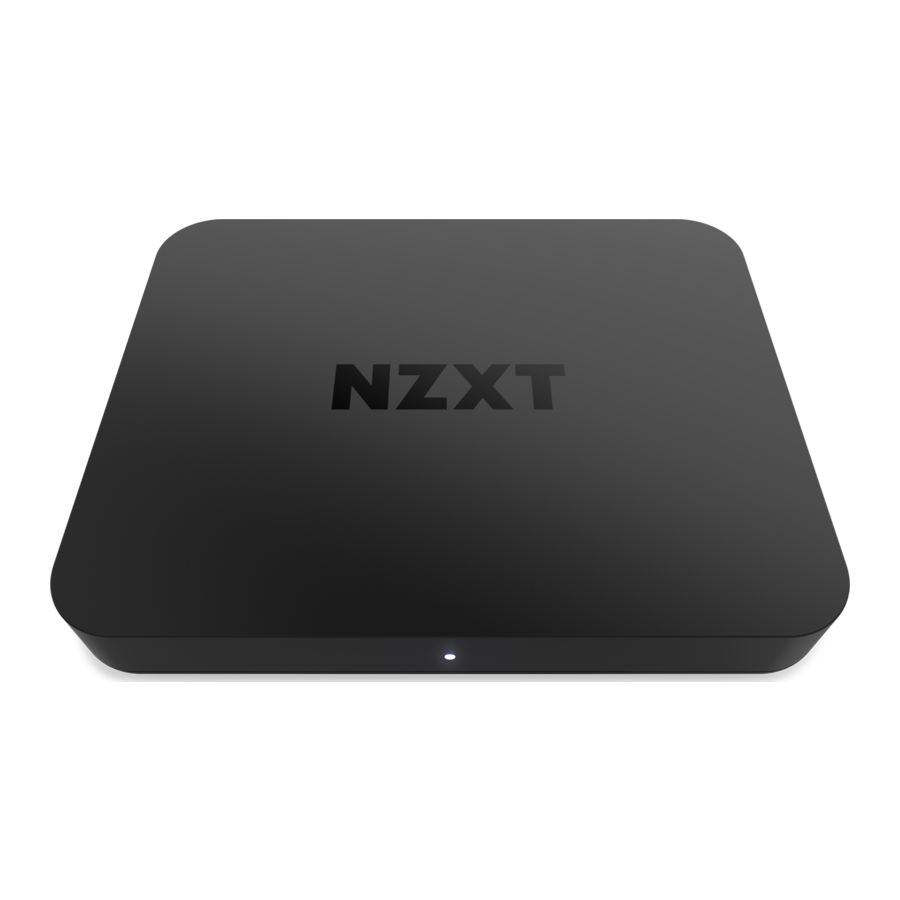

PRODUCT OVERVIEW

SETTING UP THE DEVICE

Make sure your PC and the device you want to capture is powered off.

warning POWERED OFF

Using the included USB cable, plug in the Type-C end into the capture card, and the other end into your computer in a USB 3.2 (Gen 1) compatible slot.
Using the included HDMI cable, plug one end into the "IN" port on the capture card, and the other end into the device you want to capture such as a gaming PC, console, camera, or mobile device.
Recommended for Console or 2-PC setups: Plug in an HDMI 2.0 cable into the "OUT" port on the capture card, and the other end of the cable to your gaming monitor. This will allow zero-lag passthrough of the original signal to game without compromise.
Power on your computer and the captured device.
In your favorite streaming program, add a new video capture device as a source and look for "NZXT Signal HD60"

SOFTWARE AND FIRMWARE UPDATES

NZXT will continue releasing software and firmware updates to keep the Signal HD60 running at the highest level.
Visit www.nzxt.com/downloads for the latest software and firmware updates

LED INDICATOR CHART

LIGHT	DESCRIPTION
White Solid	Connected to device and working on USB 3.2 (Gen 1)
Red Flashing (1s on/off)	Connected to device, but only USB 2.0 compatibility detected
Red Solid	Connected to device without HDCP key or firmware update failed
White blinking (0.5s on/off)	Firmware update ongoing
White flashing (1s on/off)	Connected to device, but no source data detected

SPECIFICATIONS

SIGNAL HD60	DESCRIPTION
General Specifications	HDMI 2.0 input and pass through
	USB 3.2 (Gen 1) Type C for power and data
	Included USB-C to USB-A to connect to computer
	2 Channel, 16 bit, 48 kHz Audio
	Compliant with HDMI 2.0, HDCP 1.4/2.2 and DVI 1.0 specifications
Maximum Input & Pass Through Compatibiltiy	3840x2160p 60fps 2560x1440p 60fps 1920x1080p 60fps 1920x1080i 60fps 720p 480p 576p 480i 576i
Stream & Record Resolutions	1920x1080p (60, 50, 30, 25) 720p (60, 50, 30, 25) 576p (50, 25) 480p (60, 30)
Audio	HDMI: Stereo 16 bit 48K samples/sec
Scaling	Hardware downscaling, and upscaling to 1080p
UVC Supported Raw Formats	NV12 YUY2

SAFETY INSTRUCTIONS

Read through the following Safety Precautions before using the monitor:

Keep the plastic packaging bag for the product in a place that cannot be reached by children.
Do not touch the plug with wet hands, it may cause electric shock.
The holes or openings on the capture card are for ventilation. Do not cover or block the ventilation holes with any objects.
Do not attempt to disassemble or repair the capture card yourself.

NZXT GLOBAL WARRANTY POLICY

TO OBTAIN TECHNICAL SUPPORT
If you have already referenced your product owner's manual and still need help, you may contact us by phone at +1 (800) 228-9395, by email at service@nzxt.com, or visit the NZXT Support site at nzxt.com/customer-support.

Visit nzxt.com/warranty and support.nzxt.com for information on warranty coverage and service.

NZXT, Inc./ 15736 E Valley Blvd, City of Industry, CA 91744, USA
NZXT Europe GmbH/ Industriering Ost 66 | 47906 Kempen | Germany
+1 (800) 228-9395 / service@nzxt.com / NZXT.com

SUPPORT AND SERVICE

If you have any questions or problems with the NZXT product you purchased, please don't hesitate to contact us using our support system. support.nzxt.com
Please include a detailed explanation of your problem and your proof of purchase. For comments and suggestions, you can e-mail our design team, designer@nzxt.com. Lastly we would like to thank you for your support by purchasing this product.
