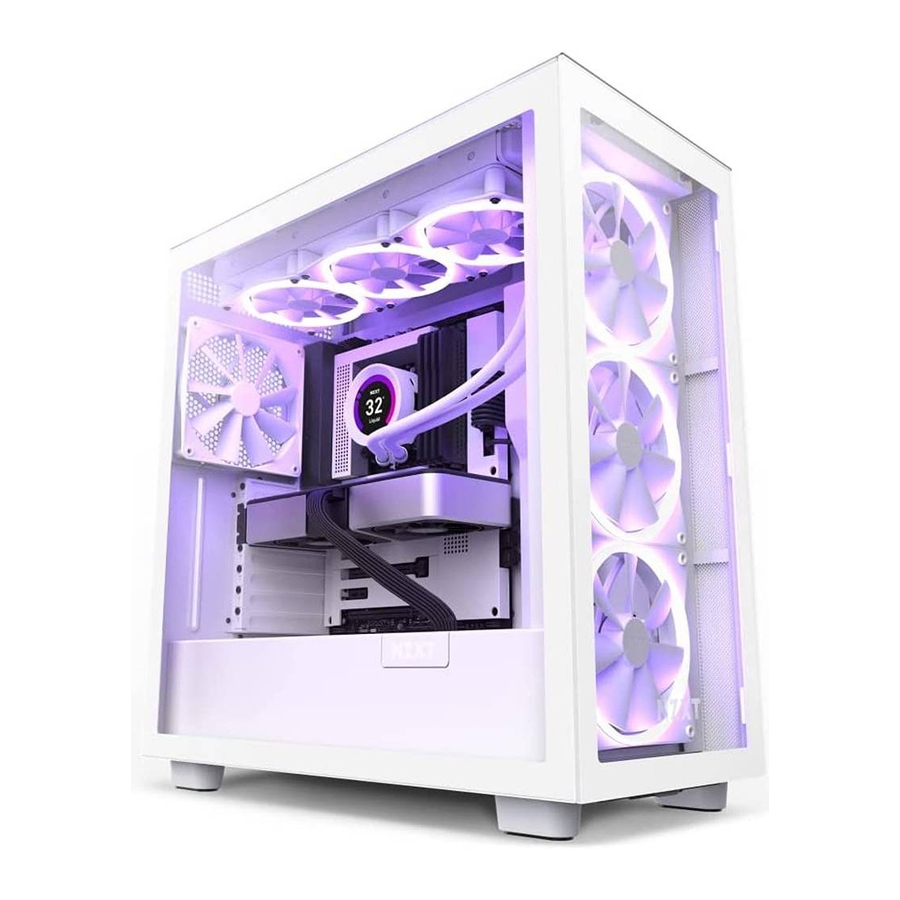

NZXT H7 ELITE - MID-TOWER Case Manual

EXPLODED VIEW

Top Panel
Top Filter
Rear exhaust Fan
PCI Insert
PSU dust filter
Cable bar
Tempered glass panel
Front I/O Module
Right side panel

RGB Lighting Controller
SSD Tray
Front Cooler Bracket
F140 RGB Core Fans
HDD Cage
Front tempered glass panel
Front bottom dust filter

CLEARANCES AND SPECIFICATIONS

Motherboard Support	ATX, Micro-ATX and Mini-ITX
2.5" SSD Support	4+2
3.5" HDD Support	2
Expansion Slots	7
Cable Management	18-22mm
CPU Cooler Clearance	185mm
GPU Clearance	400mm
Front Radiator	60mm
Top Radiator	30mm

ACCESSORY BOX

A	Hexagon Screw 6-32 x 6mm	Power supply installation
B	Screw 6-32 x 5mm	Motherboard installation, 3.5 hard drive installation
C	Screw M3 x 5mm	2.5 hard drive installation
D	Screw KB5 x 10mm	Fan installation
E	Standoff 6-32 x 6.5+4mm	Motherboard installation
F	Standoff Wrench	Motherboard installation
G	Cable Tie	Cable managment
H	SSD Tray	SSD drive installation

RGB LIGHTING CONTROLLER

PORTS & CONNECTORS
NZXT RGB ports 1-3 - Connect any RGB lighting accessories to the 4-pin connector. Additional lighting accessories are sold separately.
SATA Power Connector - Connect this to the power supply to power the fans and lighting accessories.
USB Connector - Connect this to the motherboard to enable control via NZXT CAM.

CABLE CONNECTIONS

BUTTONS AND I/O

Headset Jack
USB 3.2 Gen2 Type-C
USB 3.2 Gen1 Type-A
Power switch
Power LED

PANEL REMOVAL

CABLE BAR

CABLE MANAGEMENT SYSTEM

MOTHERBOARD INSTALLATION

SSD DRIVE INSTALLATION

HDD DRIVE INSTALLATION

EXPANSION CARD INSTALLATION

POWER SUPPLY INSTALLATION

POWER SUPPLY INSTALLATION

Install the PSU with the fan facing down.

FAN AND RADIATOR SUPPORT

FAN & RADIATOR INSTALLATION

FAN & RADIATOR INSTALLATION - STEP 1

DOWNLOADING NZXT CAM

After setting up the Kraken, turn on your PC and proceed to download and install NZXT CAM software to enable Kraken controls:
nzxt.com/camapp/

SUPPORT AND SERVICE

If you have any questions or problems with the NZXT product you purchased, please don't hesitate to contact us using our support system. service@nzxt.com
support.nzxt.com
Please include a detailed explanation of your problem and your proof of purchase. For comments and suggestions, you can e-mail our design team, designer@nzxt.com. Lastly we would like to thank you for your support by purchasing this product. For more information about NZXT, please visit us online.
NZXT Website: NZXT.com
