NZXT H7 ELITE Manual

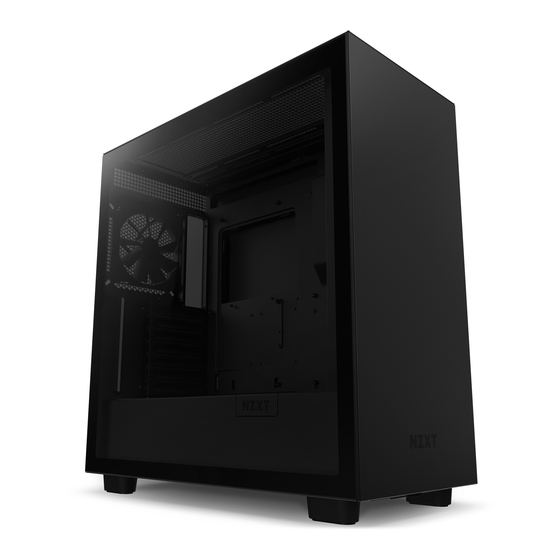

Premium mid-tower case

Hide thumbs

Table Of Contents

H7 ELITE

P REMIUM MID-TOWER CAS E

Table of Contents

Summary of Contents for NZXT H7 ELITE

Page 1 H7 ELITE P REMIUM MID-TOWER CAS E...
Page 2 TABLE OF CONTENTS V E R S I O N 1 . 1 1. PRODUCT INFORMATION ..2. COMPONENTS & PORTS 06/07 ..3. APPENDIX ......... .
Page 3 1. PRODUCT INFORMATION H7 ELITE PREMIUM MID-TOWER CASE 1.1 Accessory Box ..............1.2 Clearances and Specifications ......
Page 4 1.1 ACCESSORY BOX H7 ELITE PREMIUM MID-TOWER CASE A. Hexagon Screw 6-32 x 6mm E. Standoff 6-32 x 6.5+4mm Power supply installation Motherboard installation B. Screw 6-32 x 5mm F. Standoff Wrench Motherboard installation, 3.5 hard drive Motherboard installation installation C.
Page 5 1.2 CLEARANCES AND SPECIFICATIONS H7 ELITE PREMIUM MID-TOWER CASE 23 0m m 4 8 0 mm...
Page 6 1.2 CLEARANCES AND SPECIFICATIONS H7 ELITE PREMIUM MID-TOWER CASE Motherboard Support CPU Cooler Clearance EATX, ATX, Micro-ATX and Mini-ITX 185mm 2.5” SSD Support GPU Clearance 400mm 3.5” HDD Support Front Radiator 60mm Expansion Slots Top Radiator 30mm Cable Management 18-22mm...
Page 7: Table Of Contents
2. COMPONENTS & PORTS H7 ELITE PREMIUM MID-TOWER CASE 2.1 Exploded View 2.6 Cable Management System ........................2.2 Cable Connections 2.7 Motherboard Installation ....................... 2.3 Buttons and I/O 2.8 SSD Drive Installation ..........................2.4 Panel Removal 2.9 HDD Drive Installation ................
Page 8 2. COMPONENTS & PORTS H7 ELITE PREMIUM MID-TOWER CASE 2.11 Power Supply Installation ..........2.12 Fan and Radiator Support .......... 2.13 Fan and Radiator Installation ........2.14 RGB & Fan Controller ............
Page 9: Exploded View
2.1 EXPLODED VIEW H7 ELITE PREMIUM MID-TOWER CASE PART NAME PART NAME Top Panel PSU Dust Filter Top Filter Cable Bar Rear Exhaust Fan Tempered Glass Panel PCI Insert Front I/O Module...
Page 10 2.1 EXPLODED VIEW H7 ELITE PREMIUM MID-TOWER CASE PART NAME PART NAME Right Side Panel F140 RGB Fan RGB & Fan Controller HDD Cage SSD Tray Front Tempered Glass Panel Front Cooler Bracket Front Bottom Dust Filter...
Page 11: Cable Connections
2.2 CABLE CONNECTIONS H7 ELITE PREMIUM MID-TOWER CASE FOR INTEL STANDARD F_PANEL HEADER USB 3.2 GEN 2 TYPE-C USB 3.2 GEN 1 TYPE-A HD AUDIO...
Page 12: Buttons And I/O
2.3 BUTTONS AND I/O H7 ELITE PREMIUM MID-TOWER CASE PORT NAME Headset Jack USB 3.2 Gen2 Type-C USB 3.2 Gen1 Type-A Power Switch Power LED...
Page 13: Panel Removal
2.4 PANEL REMOVAL H7 ELITE PREMIUM MID-TOWER CASE...
Page 14: Cable Bar
2.5 CABLE BAR H7 ELITE PREMIUM MID-TOWER CASE...
Page 15: Cable Management System
2.6 CABLE MANAGEMENT SYSTEM H7 ELITE PREMIUM MID-TOWER CASE FRONT I/O CABLE AND FAN CABLE CHANNEL 24 PIN CABLE AND SATA CABLE CHANNEL FAN CABLE CHANNEL 8 PIN CABLE CHANNEL...
Page 16: Motherboard Installation
2.7 MOTHERBOARD INSTALLATION H7 ELITE PREMIUM MID-TOWER CASE...
Page 17: Ssd Drive Installation
2.8 SSD DRIVE INSTALLATION H7 ELITE PREMIUM MID-TOWER CASE...
Page 18: Hdd Drive Installation
2.9 HDD DRIVE INSTALLATION H7 ELITE PREMIUM MID-TOWER CASE...
Page 19: Expansion Card Installation
2.10 EXPANSION CARD INSTALLATION H7 ELITE PREMIUM MID-TOWER CASE...
Page 20: Power Supply Installation
2.11 POWER SUPPLY INSTALLATION H7 ELITE PREMIUM MID-TOWER CASE IMPORTANT • Install the PSU with the fan facing down.
Page 21: Fan And Radiator Support
2.12 FAN AND RADIATOR SUPPORT H7 ELITE PREMIUM MID-TOWER CASE 120mm 140mm Top: 3 X 120mm / 2 X 140mm 240mm 140mm 140mm Front: 3 X 120mm / 3 X 140mm 280mm Rear: 1 X 120mm / 1 X 140mm...
Page 22 2.12 FAN AND RADIATOR SUPPORT H7 ELITE PREMIUM MID-TOWER CASE RADIATOR 120mm 140mm Top: Up to 360mm 240mm Front: Up to 360mm 140mm 140mm 280mm Rear: Up to 140mm 120mm 120mm 120mm 360mm...
Page 23: Fan And Radiator Installation
2.13 FAN AND RADIATOR INSTALLATION H7 ELITE PREMIUM MID-TOWER CASE NOTE • Step 1 and 2 apply to white version only.
Page 24 2.13 FAN AND RADIATOR INSTALLATION H7 ELITE PREMIUM MID-TOWER CASE...
Page 25 2.13 FAN AND RADIATOR INSTALLATION H7 ELITE PREMIUM MID-TOWER CASE The screws shown will be provided within liquid cooler packaging.
Page 26: Rgb & Fan Controller
Connect any RGB lighting accessories to the 4-pin connector. Additional lighting accessories are sold separately. SATA Power Connect this to the power supply to power the fans and lighting Connector accessories. SATA USB Connector Connect this to the motherboard to enable control via NZXT CAM. SATA...
Page 27 3. APPENDIX H7 ELITE PREMIUM MID-TOWER CASE 3.1 NZXT Global Warranty Policy 3.3 Regulations A-11 ....................... 3.2 Support and Service 3.4 Revision History A-12 ........................A - 1...
Page 28 3.1 NZXT GLOBAL WARRANTY POLICY H7 ELITE PREMIUM MID-TOWER CASE This NZXT Global Warranty Policy governs the sale of products by NZXT to you. I. WARRANTY LENGTH II. WHO IS PROTECTED Any replacement product will be covered under warranty for the The Warranty covers only NZXT products purchased by the remainder of the warranty period or thirty days, whichever is longer.
Page 29 NZXT shall not, in any event, be liable for • improper installation, unauthorized alterations or modifications, or any incidental or consequential damage, including but not limited repair or attempted repair by anyone not authorized by NZXT;...
Page 30 Once approved, you`ll receive an RMA number, upon which you need help, you may contact us by phone at +1 (800) 228-9395, by will be asked to ship the defective item back to NZXT with the email at service@nzxt.com, or visit the NZXT Support site at RMA number clearly marked or labelled on the package.
Page 31 VIII. APPLICABLE LAW AND ADDITIONAL LEGAL RIGHTS FOR In the United Kingdom: CONSUMERS • For NZXT products sold to customers in the UK, during the expected lifespan of your product your legal rights entitle you to the This warranty gives you specific legal rights. These conditions are...
Page 32 In North America: your dealer, please contact NZXT Customer Support (see above) for assistance and instructions. NZXT will not accept returns without Within the first 60 days after purchase, please return your product prior approval.
Page 33 을 방문해 주시기 바랍니다. > 保証範囲およびサービスに関する情報については、 support.nzxt.com と nzxt.com/ warranty にアクセスしてください。 NZXT, Inc./ 15736 E Valley Blvd, City of Industry, CA 91744, USA > 请造访 nzxt.com/warranty 和 support.nzxt.com 了解保修范围和服务的信息。 NZXT Europe GmbH/ Industriering Ost 66 | 47906 Kempen | Germany >...
Page 34 H7 ELITE PREMIUM MID-TOWER CASE SUPPORT AND SERVICE SUPPORT ET SERVICE If you have any questions or problems with the NZXT product you Si vous avez des questions ou des problèmes avec le produit purchased, please don’t hesitate to contact us using our support NZXT que vous avez acheté, n’hésitez pas à...
Page 35 3.2 SUPPORT AND SERVICE H7 ELITE PREMIUM MID-TOWER CASE ASSISTENZA E SERVIZIO In caso di dubbi o problemi con il prodotto NZXT acquistato, non esitate a contattarci utilizzando il nostro sistema di assistenza. NZXT : service@nzxt.com support.nzxt.com Includere una spiegazione dettagliata del problema e la prova di : support.
Page 36 3.2 SUPPORT AND SERVICE H7 ELITE PREMIUM MID-TOWER CASE 支持和服务 지원 및 서비스 如果有任何疑问或者在使用 NZXT 产品的过程中遇到任何问题,欢迎联络 구입한 NZXT 제품과 관련하여 질문 또는 문제가 있을 경우, 당사의 지원 시스템 support.nzxt.com service@nzxt.com,联络时请提供关于问题的详细说明及购买凭证。您可以向 )을 사용하여 문의하십시오. support.nzxt.com 查询更换部件。如有任何意见或建议,欢迎致信我们的设计 문제를 자세히 기술하고 구매 증빙을 제출하십시오. 의견 또는 제안 사항이 잇을...
Page 37 3.3 REGULATIONS H7 ELITE PREMIUM MID-TOWER CASE This personal computer case with the smart device is tested to comply with FCC standard, Australian standard and EU EMC Directive (2014/30/EU) CAN ICES-003(B) / NMB-003(B) This Class B personal computer case with smart device complies with Canadian ICES-003 Cet étui pour ordinateur personnel de classe B avec dispositif...
Page 38 3.4 REVISION HISTORY H7 ELITE PREMIUM MID-TOWER CASE Version 1.1, 2022/03/014 A - 1 2...
