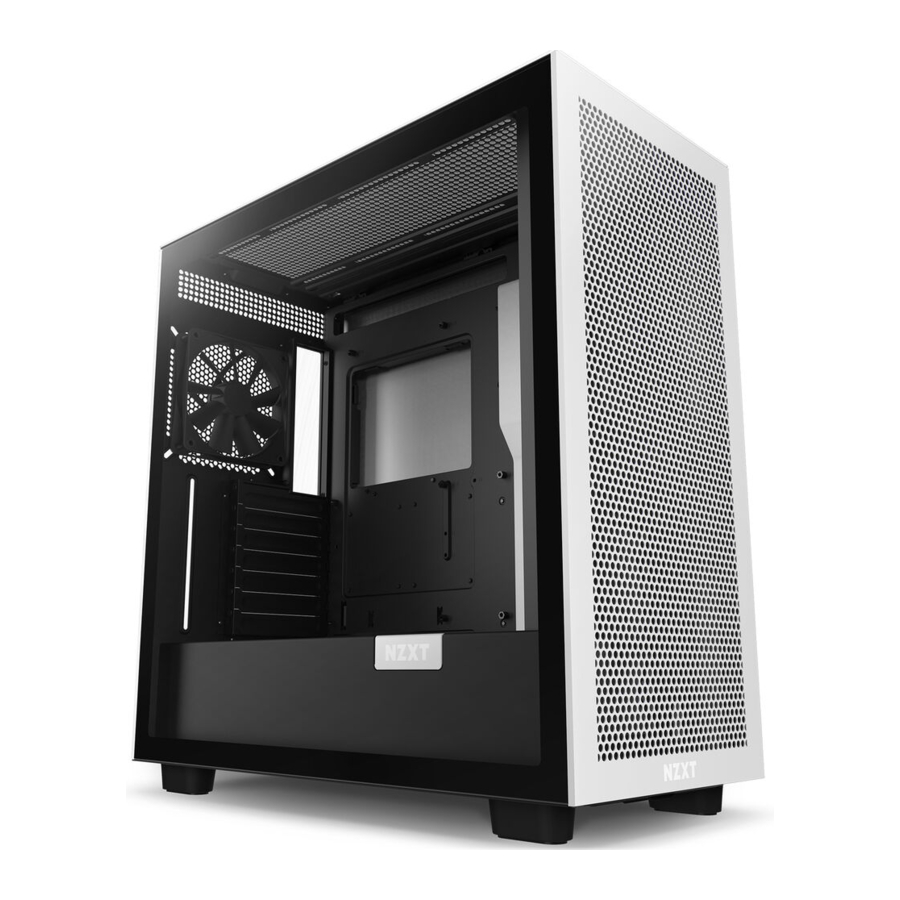

PRODUCT INFORMATION
ACCESSORY BOX
- Hexagon Screw 6-32 x 6mm x4
Power supply installation
![]()
- Screw 6-32 x 5mm x17
Motherboard installation, 3.5 hard drive installation
![]()
- Screw M3 x 5mm x24
2.5 hard drive installation
![]()
- Screw KB5 x 10mm x12
Fan installation
![]()
- Standoff 6-32 x 6.5+4mm x1
Motherboard installation
![]()
- Standoff Wrench x1
Motherboard installation
![]()
- Cable Ties x10
Cable managment
![]()
- SSD Tray x2
SSD drive installation
![]()
CLEARANCES AND SPECIFICATIONS
| Motherboard Support EATX, ATX, Micro-ATX and Mini-ITX | CPU Cooler Clearance 185mm |
| 2.5" SSD Support 4+2 | GPU Clearance 400mm |
| 3.5" HDD Support 2 | Front Radiator 60mm |
| Expansion Slots 7 | Top Radiator 30mm |
| Cable Management 18-22mm |
COMPONENTS & PORTS
EXPLODED VIEW
- Top Panel
- Top Filter
- Rear Exhaust Fan
- PCI Insert
- PSU Dust Filter
- Cable Bar
- Tempered Glass Panel
- Front I/O Module
- Right Side Panel
- SSD Tray
- Front Intake Fan
- Front Cooler Bracket
- HDD Cage
- Front Filter
- Front Mesh Panel
- Front Bottom Dust Filter
CABLE CONNECTIONS
BUTTONS AND I/O
- Headset Jack
- USB 3.2 Gen2 Type-C
- USB 3.2 Gen1 Type-A
- Power Switch
- Power LED
PANEL REMOVAL
CABLE BAR
CABLE MANAGEMENT SYSTEM
MOTHERBOARD INSTALLATION
SSD DRIVE INSTALLATION
HDD DRIVE INSTALLATION
EXPANSION CARD INSTALLATION
POWER SUPPLY INSTALLATION
- Install the PSU with the fan facing down.
FAN AND RADIATOR SUPPORT
FAN
Top: 3 X 120mm / 2 X 140mm
Front: 3 X 120mm / 3 X 140mm
Rear: 1 X 120mm / 1 X 140mm
RADIATOR
Top: Up to 360mm
Front: Up to 360mm
Rear: Up to 140mm
FAN AND RADIATOR INSTALLATION
SUPPORT AND SERVICE
If you have any questions or problems with the NZXT product you purchased, please don't hesitate to contact us using our support system.
support.nzxt.com
Please include a detailed explanation of your problem and your proof of purchase. For comments and suggestions, you can e-mail our design team, designer@nzxt.com. Lastly we would like to thank you for your support by purchasing this product. For more information about NZXT, please visit us online.
NZXT Website: NZXT.com
