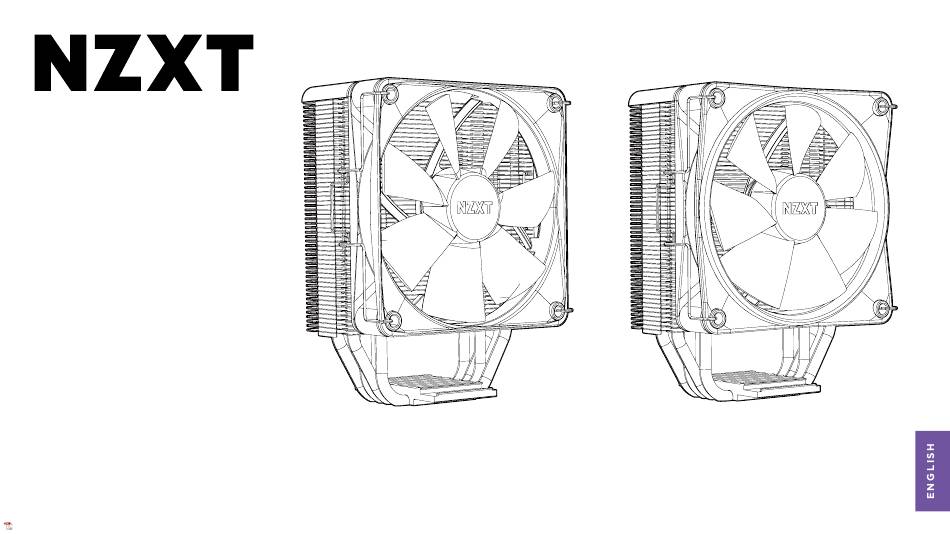

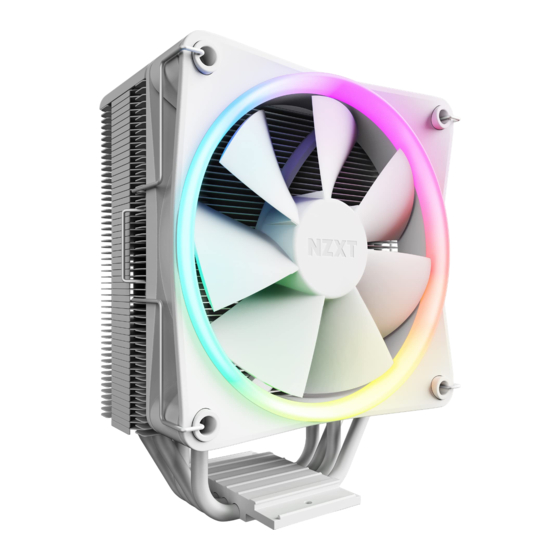

- Page 1 T120 | T120RGB CPU A IR COOLE R | CPU AIR COOL ER WIT H R GB...
- Page 2 ........3. DOWNLOADING NZXT CAM ..
- Page 3 1. COMPONENT LIST T120 & T120RGB D. Fan Clip A. Heatsink E. Intel Backplate - LGA 1700 T120 B. F Series - Static Pressure Fan F. Intel Backplate - LGA 1200/115X T120RGB C. F Series - RGB Fan G. Intel Retention Brackets...
- Page 4 1. COMPONENT LIST T120 & T120RGB L. NZXT High-Performance Thermal Paste 1g H. AMD Retention Brackets T120RGB I. Countersunk Screws M. 200mm 5V ARGB (Female) to (Pre-installed) NZXT RGB (Male) Adapter J. AMD Sleeves K. #6-32 Screws for AMD...
- Page 5 2. INSTALLATION T120 & T120RGB STEP 1. (INTEL) STEP 1. (AMD) Install the Intel backplate (LGA 1700 or 1200/115X) on Remove the stock AMD mounting bracket and keep the original the rear of the motherboard. backplate on the rear of the motherboard.
- Page 6 2. INSTALLATION T120 & T120RGB STEP 2. (INTEL) STEP 2. (AMD) Pre-Installed Install the retention brackets to the heatsink and secure it with the countersunk screws. SOCKET 1200/115X SOCKET 1700 SOCKET 1700...
- Page 7 2. INSTALLATION T120 & T120RGB STEP 3. STEP 4. Peel off the protector sticker from the CPU contact Apply the thermal paste on the CPU. surface.
- Page 8 2. INSTALLATION T120 & T120RGB STEP 5. (INTEL) STEP 5. (AMD) Place the heatsink with the retention bracket onto the Install the four AMD sleeves and then place the heatsink with CPU and ensure the bracket screws go into the backplate the retention bracket.
- Page 9 2. INSTALLATION T120 & T120RGB STEP 6. STEP 7. Secure the fan to the cooler with the fan clips. Connect the 4-Pin PWM fan cable to an open header on your motherboard or fan controller.
- Page 10 2. INSTALLATION T120 & T120RGB ONLY FOR T120RGB OPTION OPTION 2 5V ARGB NZXT RGB lighting channel on your lighting controller. 4-pin NZXT RGB Cable OPTION 1 OPTION 3 NZXT RGB lighting channel on the motherboard. 5V ARGB (Female) to NZXT RGB (Male) Adapter.
- Page 11 Per controllare il ventola RGB, scaricare e installare NZXT CAM da nzxt.com/software/cam. Para controlar seus ventiladores RGB, baixe e instale o CAM em nzxt.com/software/cam. Для того чтобы включить управление Вентилятор RGB, загрузите и установите приложение NZXT CAM со страницы nzxt.com/software/cam. RGB 팬 제어를 활성화하려면...
- Page 12 4. APPENDIX T120 & T120RGB 3.1 NZXT Global Warranty Policy 3.3 Regulations A-11 ....................... 3.2 Support and Service 3.4 Revision History A-12 ........................A - 1...
- Page 13 3.1 NZXT GLOBAL WARRANTY POLICY T120 & T120RGB This NZXT Global Warranty Policy governs the sale of products by NZXT to you. I. WARRANTY LENGTH II. WHO IS PROTECTED Any replacement product will be covered under warranty for the The Warranty covers only NZXT products purchased by the remainder of the warranty period or thirty days, whichever is longer.
- Page 14 NZXT shall not, in any event, be liable for • improper installation, unauthorized alterations or modifications, or any incidental or consequential damage, including but not limited repair or attempted repair by anyone not authorized by NZXT;...
- Page 15 Once approved, you`ll receive an RMA number, upon which you need help, you may contact us by phone at +1 (800) 228-9395, by will be asked to ship the defective item back to NZXT with the email at service@nzxt.com, or visit the NZXT Support site at RMA number clearly marked or labelled on the package.
- Page 16 VIII. APPLICABLE LAW AND ADDITIONAL LEGAL RIGHTS FOR In the United Kingdom: CONSUMERS • For NZXT products sold to customers in the UK, during the expected lifespan of your product your legal rights entitle you to the This warranty gives you specific legal rights. These conditions are...
- Page 17 In North America: your dealer, please contact NZXT Customer Support (see above) for assistance and instructions. NZXT will not accept returns without Within the first 60 days after purchase, please return your product prior approval.
- Page 18 にアクセスしてください。 warranty NZXT, Inc./ 15736 E Valley Blvd, City of Industry, CA 91744, USA > 请造访 nzxt.com/warranty 和 support.nzxt.com 了解保修范围和服务的信息。 NZXT Europe GmbH/ Industriering Ost 66 | 47906 Kempen | Germany > 請訪問 nzxt.com/warranty 和 support.nzxt.com 了解產品保固範圍和更多服務訊息。 +1 (800) 228-9395 / service@nzxt.com / NZXT.com...
- Page 19 T120 & T120RGB SUPPORT AND SERVICE SUPPORT ET SERVICE If you have any questions or problems with the NZXT product you Si vous avez des questions ou des problèmes avec le produit purchased, please don’t hesitate to contact us using our support NZXT que vous avez acheté, n’hésitez pas à...
- Page 20 T120 & T120RGB ASSISTENZA E SERVIZIO СЛУЖБА ПОДДЕРЖКИ И ОБСЛУЖИВАНИЯ In caso di dubbi o problemi con il prodotto NZXT acquistato, non В случае возникновения вопросов или неисправностей в приобретенных esitate a contattarci utilizzando il nostro sistema di assistenza. вами продуктах NZXT обращайтесь по адресу: service@nzxt.com support.nzxt.com...
- Page 21 3.2 SUPPORT AND SERVICE T120 & T120RGB 支持和服务 지원 및 서비스 如果有任何疑问或者在使用 NZXT 产品的过程中遇到任何问题,欢迎联络 구입한 NZXT 제품과 관련하여 질문 또는 문제가 있을 경우, 당사의 지원 시스템 )을 사용하여 문의하십시오. support.nzxt.com service@nzxt.com,联络时请提供关于问题的详细说明及购买凭证。您可以向 support.nzxt.com 查询更换部件。如有任何意见或建议,欢迎致信我们的设计 문제를 자세히 기술하고 구매 증빙을 제출하십시오. 의견 또는 제안 사항이 잇을...
- Page 22 3.3 REGULATIONS T120 & T120RGB This lighting kit is tested to comply with FCC standard, Australian standard and EU EMC Directive (2014/30/EU) WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 23 3.4 REVISION HISTORY T120 & T120RGB Version 1.0, 2022/07/29 A - 1 2...
