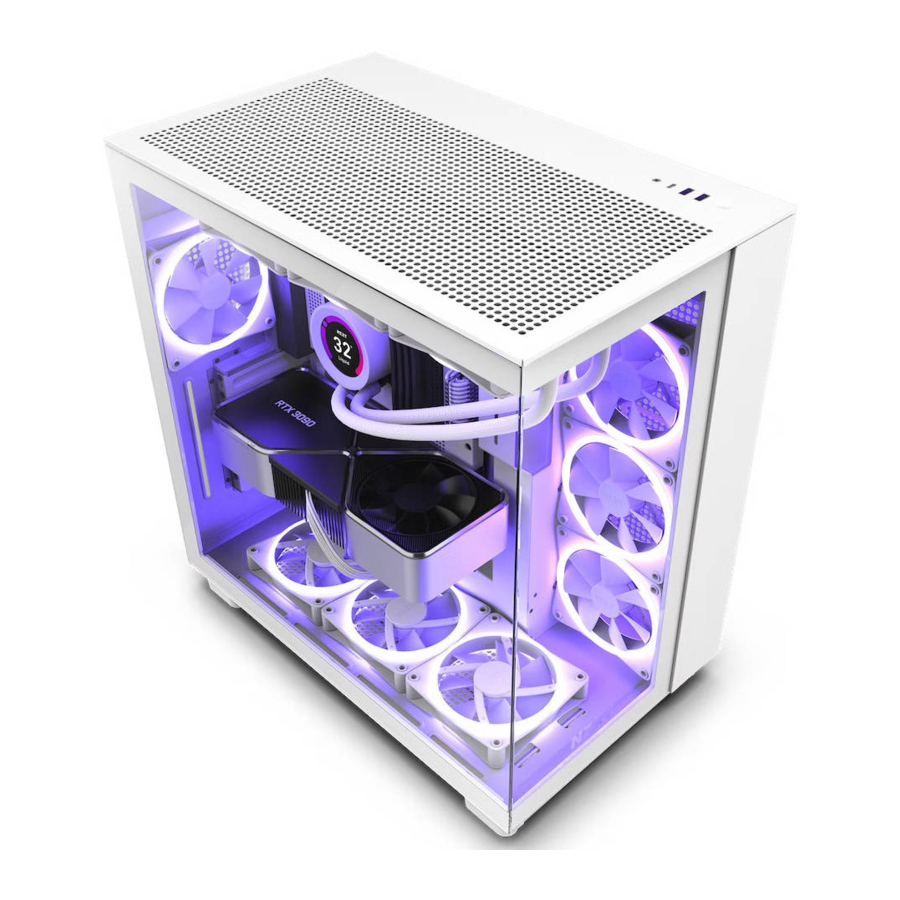

NZXT H9 FLOW - MID-TOWER AIRFLOW Case Manual

PRODUCT INFORMATION

EXPLODED VIEW

1. Top Mesh Panel
2. Top Filter
3. Top Cooler Bracket
4. Rear Exhaust Fan
5. Rear Exhaust Fan
6. Cable Bar
7. Tempered Glass Panel
8. PCIe Insert

9. Bottom Filter
10. Front I/O Module
11. Right Side Filter
12. Right Side Panel
13. SSD Mounting Bracket
14. Right Side Cooler Bracket
15. Right-side Fan
16. Front Tempered Glass Panel

CLEARANCES AND SPECIFICATIONS

ACCESSORY BOX

1. Hexagon Screw 6-32 x 6mm
   Power supply installation

2. Screw 6-32 x 5mm
   Motherboard installation, 3.5 hard drive installation

3. Screw M3 x 5mm
   2.5 hard drive installation


4. Screw KB5 x 10mm
   Fan installation

5. Cable Ties
   Cable managment


COMPONENTS & PORTS

CABLE CONNECTIONS

BUTTONS AND I/O

PANEL REMOVAL

CABLE BAR REMOVAL

CABLE MANAGEMENT SYSTEM

MOTHERBOARD INSTALLATION

SSD DRIVE INSTALLATION

HDD DRIVE INSTALLATION

EXPANSION CARD INSTALLATION

POWER SUPPLY INSTALLATION

Install the PSU with the fan facing outward.

FAN & RADIATOR SUPPORT

FAN
Top: 3 x 120mm / 2 x 140mm
Side: 3 x 120mm
Rear: 1 x 120mm
Bottom: 3 x 120mm / 2 x 140mm

RADIATOR
Top: UP to 360mm
Side: 120mm/240mm/360mm
Rear: UP to 120mm
Bottom: UP to 360mm

FAN & RADIATOR INSTALLATION

TOP FAN

RIGHT SIDE FAN

BOTTOM FAN

TOP RADIATOR

RIGHT SIDE RADIATOR

SUPPORT AND SERVICE

If you have any questions or problems with the NZXT product you purchased, please don't hesitate to contact us using our support system.
support.nzxt.com
Please include a detailed explanation of your problem and your proof of purchase. For comments and suggestions, you can e-mail our design team, designer@nzxt.com. Lastly we would like to thank you for your support by purchasing this product. For more information about NZXT, please visit us online.
NZXT Website: NZXT.com
