SOLIS S2-PLC-CCO Installation And Operation Manual

Installation and Operation
Manual of S2-PLC-CCO
PLC CCO
Ginlong Technologies Co., Ltd.
C
1
1.1 Product description
Solis S2-PLC-CCOproduct is used for PLC(power line
communication), no need for more RS485 communication
cables.Can not only reduce the cost of construction and
maintenance,but improve communication reliability and
efficiency.

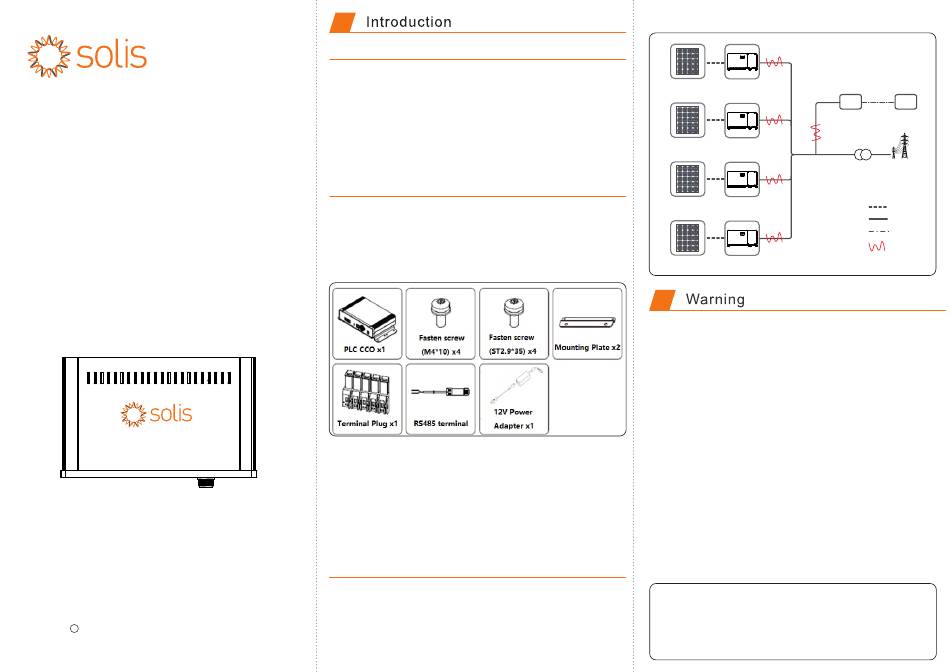

1.2 Package list
When you receive the product, please ensure that all the parts
listed below are included:
PLC CCO x1,fasten screw(M4*10)x4,
fasten screw(ST2.9*35)x4,mounting plate x2,
terminal plug x1,RS485 terminal x1,12V power adapter x1.
Improper use may lead to the risk of electric shock
or burn. During installation and maintenance,
please strictly follow the instructions in this
manual. Please read this manual carefully before
use and keep it safe for future reference.
1.3 Working principle
PV Module Inverter
PV Module Inverter
PV Module Inverter
PV Module Inverter
2
2.1 Ensure that it is not electrically connected and energized before
installation and wiring.
2.2 Before wiring, make sure that the switch connected to the PLC
CCO AC power line is off.
2.3 Must install indoors with good ventilation to prevent system
performance from being affected.
2.4 Do not install around strong electric interference devices.
2.5 Do not install around a heat source.
2.6 Before replacing or maintaining a cable, power off the system.
2.7 PLC communication is not more than 1000 meters on the
overhead AC cable, and not more than 500 meters on the ground
AC cable.
2.8 PLC devices of multiple manufacturers cannot be used in the
same array. If you need to use them, please contact the technical
personnel in advance.
2.9 The PLC CCO box is connected as close as possible to the AC
side of the inverter to reduce the number of circuit breakers
passed by the PLC.
2.10 RS485 1, RS485 2, and LAN interfaces cannot be used at the
same time.
2.11 Communication can be normal used only after the Bluetooth
configuration is complete and the indicator is off.
Note:
All operations on PLC CCO must be performed by professional
electrical technicians. Operators should be fully familiar with
the composition and working principle of the whole grid-connected
PV system and relevant standards of the country/region where the
project is located.
PLC CCO
Datalogger
Grid
Transformer
DC
AC
RS485
PLC
