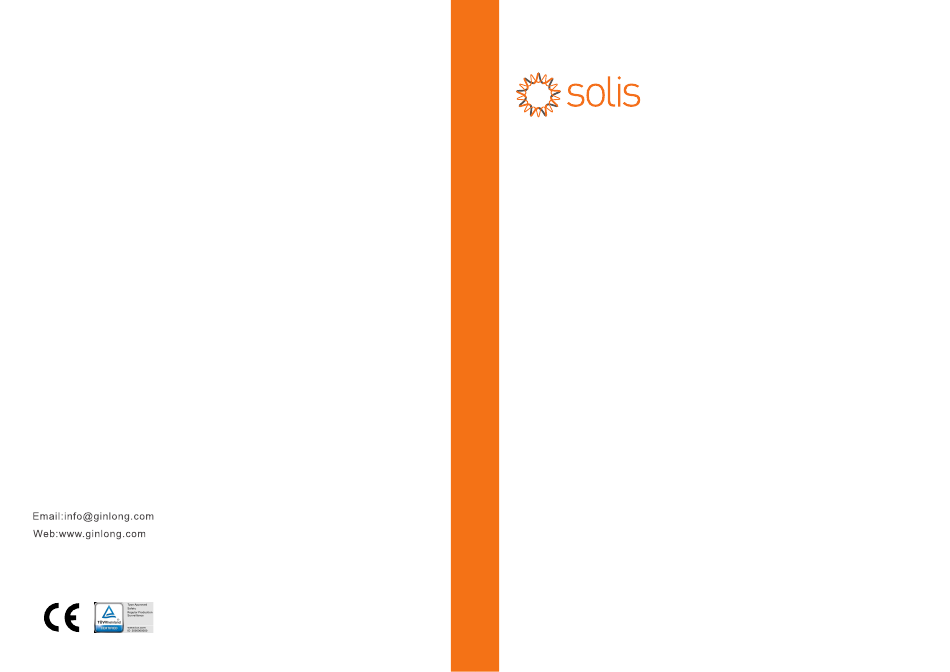

Solis S6
Single
Phase Inverter
Installation and Operation Manual
S6-GR1P(7-10)K03-NV-ND
Ginlong Technologies Co., Ltd.
Ver 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S6 and is the answer not in the manual?

Questions and answers

Related Manuals for SOLIS S6

Summary of Contents for SOLIS S6

  • Page 1 Solis S6 Single Phase Inverter Installation and Operation Manual S6-GR1P(7-10)K03-NV-ND Ver 1.0 Ginlong Technologies Co., Ltd. No. 57 Jintong Road, Binhai Industrial Park, Xiangshan, Ningbo, Zhejiang, 315712, P.R.China. Tel: +86 (0)574 6578 1806 Fax: +86 (0)574 6578 1606 Please adhere to the actual products in case of any discrepancies in this user manual.

  • Page 2: Table Of Contents

    Contents 1. Introduction …………………………………………………………………………………………………………………………… 1.1 Product Description ………………………………………………………………………………………………………… 1.2 Packaging ………………………………………………………………………………………………………………………… 1.3 Product Storage ………………………………………………………………………………………………………………………… 2. Safety Instructions …………………………………………………………………………………………………………… 2.1 Safety Symbols ………………………………………………………………………………………………………………… 2.2 General Safety Instructions …………………………………………………………………………………………… 2.3 Notice For Use ………………………………………………………………………………………………………………… 2.4 Notice for Disposal ……………………………………………………………………………………………………………… 3. Overview ………………………………………………………………………………………………………………………………...

  • Page 3: Introduction

    1. Introduction 1.1 Product Description 1.2 Packaging Solis S6 Single Phase Inverters integrate DRM and backflow power control function, that When you receive the inverter, please ensure that all the parts listed below are included: could suitable for smart grid requirement.

  • Page 4: Product Storage

    1. Introduction 2. Safety Instructions 1.3 Product Storage 2.1 Safety Symbols If the inverter is not to be installed immediately, storage instructions and environmental Safety symbols used in this manual, which highlight potential safety risks and important conditions are below: safety information, are listed as follows: Use the original box to repackage the inverter, seal with adhesive tape with the desiccant inside the box.

  • Page 5: Notice For Use

    The DC OCPD shall be installed per local requirements. All photovoltaic source and output circuit conductors shall have disconnects that comply with the NEC Article 690, Part II. All Solis S6 Single Phase Inverters feature an integrated DC switch. CAUTION: The PV array (Solar panels) supplies a DC voltage when they are exposed to sunlight.

  • Page 6: Overview

    3.1 Front Panel Display 4.1 Select a Location for the Inverter There are four indicators on the Solis S6-GR1P(2.5-6)K-S Series Inverter(Power, COM, To select a location for the inverter, the following criteria should be considered: CT/Meter and Bluetooth) which indicate the working status of the inverter.

  • Page 7: Mounting The Inverter

    4. Installation 4. Installation 4.2 Mounting the Inverter Install on a wall or strong structure capable of bearing the weight. Dimensions of mounting bracket: Install vertically with a maximum incline of +/- 5°.If the mounted inverter is tilted to an 298.0 angle greater than the maximum noted, heat dissipation can be inhibited, and may result in less than expected output power.

  • Page 8: Electrical Connections

    Before connecting inverter, please make sure the PV array open circuit voltage is within the limit of the inverter. Maximum 550Vdc for S6-GR1P7K03-NV-ND, S6-GR1P8K03-NV-ND, S6-GR1P9K03-NV-ND, S6-GR1P10K03-NV-ND Before connection, please make sure the polarity of the output voltage of PV array matches the“DC+”and“DC-”symbols.
  • Page 9 4. Installation 4. Installation Crimping plier Figure 4.10 Crimp the contact pin to the wire Figure 4.11 Connector with Cap nut Screwed on Figure 4.6 DC+ Connector Figure 4.7 DC- Connector Click Please use approved DC cable for PV system. Cross section（mm²）...
  • Page 10 4. Installation 4. Installation 4.3.2 AC output connections It is recommended to use 6-16mm2 outdoor cables with a crimp terminal range of 6-10mm2. 3. Dissemble the 4 screws on the AC terminal cover and take out the cover. Installation steps are shown as below: 1.
  • Page 11 45.5/43.5 Table 4.3 Rating of grid OCPD 4.3.5 Inverter monitoring connection The inverter can be monitored via Wi-Fi or GPRS. All Solis communication devices are optional (Figure 4.21). For connection instructions, please refer to the Solis Monitoring Device installation manuals.
  • Page 12 Direct Insert Type Meter - Max input current 60A (Model:DDSD1352-C) External CT Type Meter - 120A/40mA CT is supplied (Model: ACR10RD16TE) Customer can place the order for a suitable meter from Solis Sales Reps. L L' N N' Below are the connection diagrams of different meters connecting to different locations.
  • Page 13 Meter Model can only connect a smart meter. RJ45 Connector CT Model can only connect a smart sensor. 5 6 7 8 9 10 21 22 23 Please consult Solis Sales Rep before placing the order. White Black Load 2-Pin Connector...

  • Page 14: Commissioning

    4. Installation 5. Commissioning 4.3.9 Logic interface connection 5.1 Preparation Ensure all the devices are accessible for operation, maintenance and service. Logic interface is required by some local regulations that can be operated by a simple switch or contactor(Not available in South Africa). Check and confirm that the inverter is firmly installed.

  • Page 15: Local Connection Via App

    5. Commissioning 5. Commissioning 5.3 Local Connection via APP Step 1: Rotate the inverter DC switch from OFF to ON. Step 3: Login account. Step 2: APP Bluetooth connection with inverter. If you are the installer, please select the account type as Installer. If you are the plant owner, Turn on Bluetooth switch on your mobile phone and then open the Soliscloud APP.

  • Page 16: Stop The Inverter

    To stop the inverter, it is mandatory that the steps below are followed in the exact order outlined. 1. Select "Power OFF" in the APP. Last Year Yield Total Yield 2. Turn off the AC Switch between Solis inverter and Grid. 3. Wait approximately 30 seconds (during this time, the AC side capacitors are dissipating Voltage Current Power energy).

  • Page 17: Info Page

    6. Operation 6. Operation 6.2 Info Page 6.4 Setting Page Info page displays the general information of the inverter such as inverter serial number, Setting page contains all the setting options of the inverter. firmware version, grid code, etc. Functions Setting Path Switch on/off the inverter Settings ->...
  • Page 18 Function 2: 24-Hour Load Monitoring Function scanning 1 time every scan interval. 1. Only applicable if Solis monitoring system is used. 2. Inverters can work with a smart meter OR smart sensor to monitor the load 4. Logical Interface Setup consumption data for the whole day and the data will be displayed on the Solis monitoring system.
  • Page 19 6. Operation 6. Operation NOTE: NOTE: Please refer to below instructions for different user scenarios. Please refer to below instructions for different user scenarios. Scenario 1. Only Function 1 is required Scenario 3. Both Function 1 and 2 are required Using a Smart Meter: Using a Smart Meter: Step 1: Refer to Section 4.3.7 to connect the smart meter on the grid side or...
  • Page 20 6. Operation 6. Operation 6. CT load Monitoring Mode. Solis Smart Sensor is connected in the grid connection point Built-in EPM Setting (used for 24h load monitoring only, the System Export Power Limit Value setting is not Built-in EPM mode selection EPM ALL OFF >...

  • Page 21: Maintenance

    7. Maintenance 8. Troubleshooting Solis S6 Single Phase Inverter does not require any regular maintenance. The inverter is designed in accordance with the most important international grid-tied standards However, cleaning the dust on heat-sink will help the inverter to dissipate the heat and and safety and electromagnetic compatibility requirements.
  • Page 22 8. Troubleshooting 8. Troubleshooting Message Name Information Description Troubleshooting Suggestion Message Name Information Description Troubleshooting Suggestion IGFOL-F 1. Restart the inverter or contact our service 1. Check whether the AC connection is Grid current tracking fail (1019 DATA:0000) personnel. virtual. GRID-INTF.
  • Page 23 1. Serial number of Solis Single Phase Inverter; restart the inverter. Fail Safe Meter Communication Fail 2. The distributor/dealer of Solis Single Phase Inverter (if available); 2. If it is still not resolved, contact the 2010H factory's customer service. 3. Installation date.

  • Page 24: Specifications

    9. Specifications 9. Specifications Model S6-GR1P7K03-NV-ND Model S6-GR1P8K03-NV-ND Max. DC input voltage (Volts) Max. DC input voltage (Volts) Rated DC voltage (Volts) Rated DC voltage (Volts) Startup voltage (Volts) Startup voltage (Volts) MPPT voltage range (Volts) MPPT voltage range (Volts)
  • Page 25 9. Specifications 9. Specifications Model S6-GR1P9K03-NV-ND Model S6-GR1P10K03-NV-ND Max. DC input voltage (Volts) Max. DC input voltage (Volts) Rated DC voltage (Volts) Rated DC voltage (Volts) Startup voltage (Volts) Startup voltage (Volts) MPPT voltage range (Volts) MPPT voltage range (Volts)
