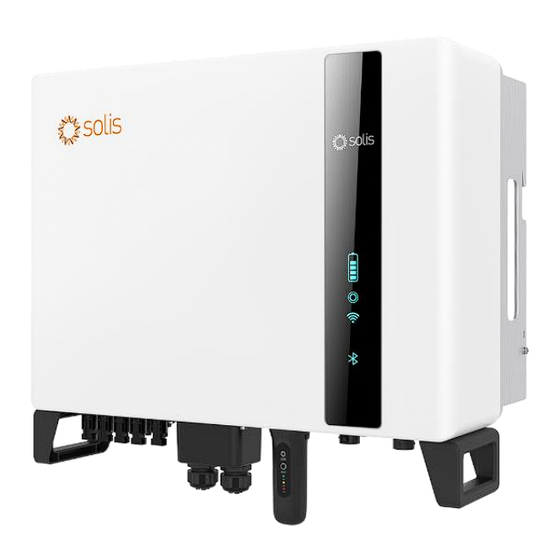

SOLIS S6 Quick Configuration Manual
Hybrid three phase inverter
Hide thumbs
Also See for S6:
- User manual ,
- Manual (50 pages) ,
- Installation and operation manual (29 pages)
Subscribe to Our Youtube Channel
Related Manuals for SOLIS S6
Summary of Contents for SOLIS S6
- Page 1 SOLIS S6 THREE PHASE QUICK GUIDE Solis HYBRID INVERTER S6 Three Phase Whole Power Range Solis S6 Hybrid Three Phase Inverter Quick Configuration Guide Solis S6 Three Phase Inverter Configuration...
- Page 2 SOLIS S6 THREE PHASE QUICK GUIDE Preparations: Underneath the inverter you’ll have access to the connection board of the inverter, CAN port, CT and Battery Power Connection Terminal are all located here. CT INPUT INVERTER CAN RJ45 INPUT CT ARROW DIRECTION...
- Page 3 SOLIS S6 THREE PHASE QUICK GUIDE Step 1. Safety Preparation For Safety reason it is forbidden to install any power inputs such as PV, GRID or BATTERY before having completed all the data wiring connection as explained below. • The PV cables cannot be conneted at this stage •...
- Page 4 SOLIS S6 THREE PHASE QUICK GUIDE Step 2. Battery Preparation Keep the HV BOX breaker and the BMS switch on “0” OFF. Assemble the tower and the DIP Switch of the HV Box and batteries in accordance with the relevant manual.
- Page 5 SOLIS S6 THREE PHASE QUICK GUIDE TOWER EXAMPLE...
- Page 6 CAN -L- PIN 2 PIN 5 CAN -H- PIN 1 PIN 4 ATTENTION SOLIS CAN BMS CABLE TO BE MODIFIED LOCALLY INVERTER RJ45 BATTERY RJ45 BATTERY SIDE KEEP THE INVERTER SIDE MAKE A ORIGINAL RJ45 TERMINAL NEW TERMINAL PIN OUT...
- Page 7 SOLIS S6 THREE PHASE QUICK GUIDE Step 3. Battery Power Connection Keep Inverter and Battery OFF. Open the lid and connect the power Cables from the battery to the Inverter. Use a Torque Wrench to secure the cables bolt. INVERTER OFF...
- Page 8 SOLIS S6 THREE PHASE QUICK GUIDE Step 4. Hv Box FW Upgrade and Protocol Set Download the WeCo Bluetooth APP from Google Play of from APP Store. The Bluetooth APP will allow you to inspect the battery, set the battery and monitor the BMS functions during the commissioning phase.
-
Page 9: Protocol Set Up
SOLIS S6 THREE PHASE QUICK GUIDE Protocol Set Up Wait until pop up confirms that the update process is successful, then select the HV Box and proceed to set the inverter protocol. Swipe UP to reach the bottom of the page. - Page 10 SOLIS S6 THREE PHASE QUICK GUIDE Step 6. Inverter Set up Inverter Protocol Setting Download and start the Solis Cloud App. Register an account or log in to an existing one. Access to your plant or add a new one, then go into Setting...
- Page 11 SOLIS S6 THREE PHASE QUICK GUIDE On the first startup, the battery may not be recognized and a “communication error” may be displayed. This is normal as it necessary to set the right battery settings to start communication. Press the Setting icon on the bottom right of the page to access to the setting page. Here press Battery...
- Page 12 SOLIS S6 THREE PHASE QUICK GUIDE Now the battery is recognized by the inverter and the parameters are visible. ATTENTION, IMPORTANT To ensure that all the information are properly displayed and received by the inverter it is necessary to make a double control by entering in Information and then Battery.
