INSTRUCTION
SHEET
PEMKO

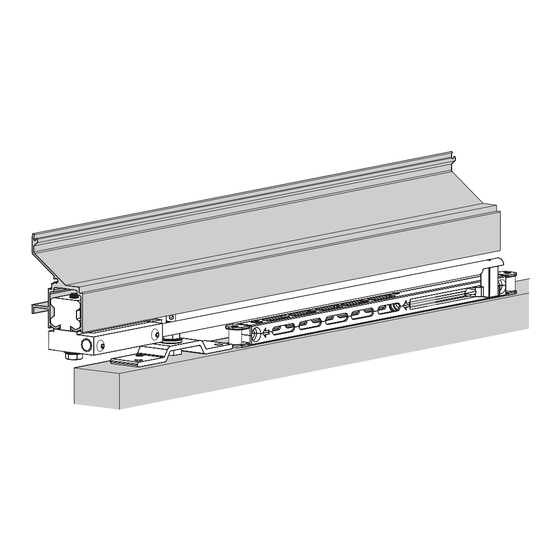

SOFT CLOSE DEVICE FOR
BOX TRACK HARDWARE SYSTEM
WARNING: DO NOT LEAVE DOOR UNATTENDED AT ANY POINT DURING INSTALLATION!
For easy 3D instructions, download the BILT mobile app available on the App Store or Google Play.
Works with Pemko Systems:
H180, SHS80, H200, 280_SWTKIT, SF280_SWTK, RF280SWTK, HBP200
PART NUMBER DESCRIPTION
SC1411-1 Single Device 88-132 lbs
SC1411-2 Dual Device 88-132 lbs
SC1413-1 Single Device 133-176 lbs
SC1413-2 Dual Device 133-176 lbs
SC1418-1 Single Device 177-200 lbs
SC1418-2 Dual Device 177-200 lbs
Minimum Door Width 28"
Tools Required:
/ "
1
8
1. Remove Door
a. Remove fascia and end caps if applicable.
b. Measure and record the clearance or gap from bottom of
track to top edge of door. This will be important later
c. Remove in track stops.
d. R emove door from track by sliding door off of one end of
track.
e. Remove hanger from mounting bracket using WRENCH14
(provided) and 12mm wrench (not provided).
f. Door can also be removed by loosening nuts on hanger
using WRENCH14 (provided) and 12mm wrench (not
provided).
g. Unhook door from hangers as shown.
NOTE: Move door past door guide before unhooking door.
Copyright © 2018-2024, ASSA ABLOY Accessories and Door Controls Group, Inc. All rights reserved. Reproduction in whole or in part without the
express written permission of ASSA ABLOY Accessories and Door Controls Group, Inc. is prohibited. Printed in the U.S.A.
/ "
7
16
12mm
