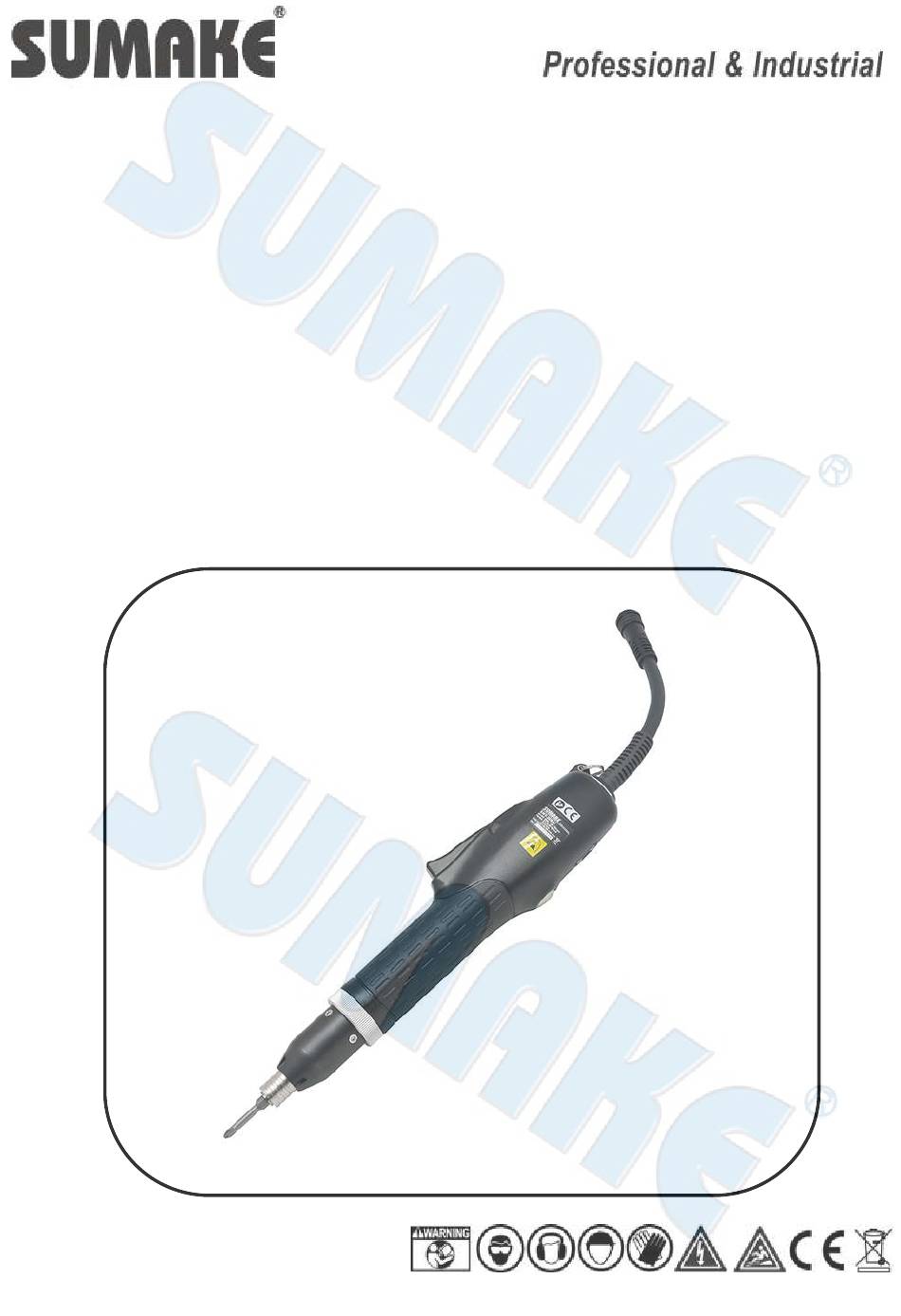

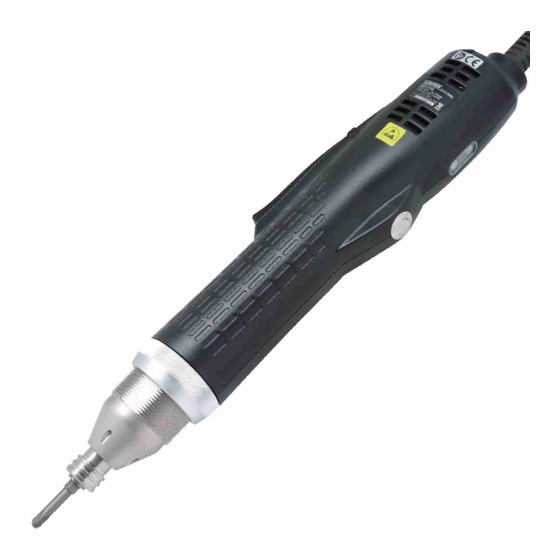

- Page 1 OPERATION AND MAINTENANCE MANUAL SMT-10SI, SMT-30SI, SMT-30SAI ITEM NO.: TRANSDUCERIZED DC INLINE DC40V BRUSHLESS ELECTRIC SCREWDRIVER SMT-10(30)SI(SAI)-I-2211D-K2...
-
Page 2: Specification
※Specification SMT-10SI SMT-30SI SMT-30SAI MODEL DC40V Input voltage (DC) Power Consumption (N.m) 0.1-1 0.5-3 0.5-3 (kgf.cm) Torque 1.02-10.2 5.1-30.60 5.1-30.60 (Lbf.in) 0.885-8.85 4.43-26.55 4.43-26.55 Repeatable Torque Accuracy +/- 3sigma / AVG., 7.5% Unloaded Rotation Speed (r/min) 100-980 100-980 100-980 Can be set and adjusted Weight (g) 279.5... - Page 3 NOTICE Metal Assembly sensor screwdriver are designed for installing threaded fasteners in light industrial and appliance manufacturing applications. SUMAKE is not responsible for customer modification of tools for applications on which SUMAKE was not consulted. WARNING Important safety information enclosed.
-
Page 4: Important Safety Rules
Important Safety Rules WARNING! Read all instructions Failure to follow all instructions listed below may result in electric shock fire and/or serious injury. The term “power tool” in all of the warning listed below refer to your mains operated (corded) power tool or battery operated (cordless) power tool. - Page 5 tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
-
Page 6: Grounding Instructions
Grounding Instructions 1、This tool should be grounded while in use to protect the operator from electric shock. NOTICE! To ensure the grounding result, the grounding conductor of the power cord must be well connected with the grounding terminal of power facility. This tool is equipped with grounding conductors. - Page 7 Operations Cautions 1) Do not allow chemicals such as acetone, benzene, thinner, trichloroethylene ketone, or other similar chemicals to come in contact with the sensor screwdriver housing as damage will result. 2) Use the sensor screwdriver carefully, do not drop or be impacted, it is best to use a balancer to lift it, and set it on the auxiliary arm for operation.
-
Page 8: Function / Operating Introduction
Function / Operating Introduction Number Product Name Description Use Hanging Hole Hanging hole is available, to hang the screwdriver Signal Light Display OK light, NG light, screw removal start and stop signal Button Switch Switch rotation direction CW/CCW Front Lock Ring Lock stationary gearbox and housing Headgear Load/unload and fixing the screwdriver bits... - Page 9 2. All repairs and maintenance of this tool and its word must be performed by an authorized service center. 3. SUMAKE is not responsible for customer modification of tools for applications on which SUMAKE was not consulted. 4. Repairs should be made only by authorized, trained personnel. Consult your nearest SUMAKE authorized service center.
-
Page 10: Eu Declaration Of Conformity (Doc)
Equipment： ELECTRIC SCREWDRIVER Model/ Serial No.： SMT-10SI, SMT-30SI, SMT-30I, SMT-50I, SMT-70I, SMT-120I, SMT-180I, SMT-250I, SMT-30A, SMT-50A, SMT-70A, SMT-120A, SMT-180A, SMT-250A The object of the declaration described above is in conformity with the relevant union harmonization legislation: ... - Page 12 NOTE www.SUMAKE.com www.aircompressors.com.tw...
