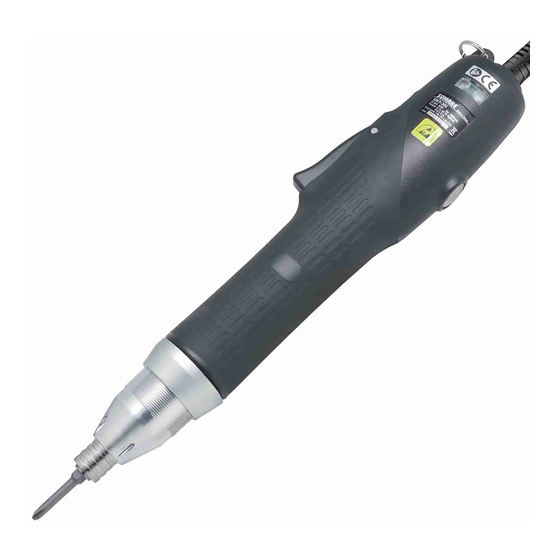

- Page 1 OPERATION AND MAINTENANCE MANUAL SMT-30I, SMT-50I, SMT-70I ITEM NO.: SMT-120I, SMT-180I, SMT-250I TRANSDUCERIZED DC INLINE DC40V BRUSHLESS ELECTRIC SCREWDRIVER SMT-30I, SMT-50I, SMT-70I SMT-120I, SMT-180I SMT-250I SMT-30(50)(70)(120)(180)(250)I-I-2210J-K2...
-
Page 2: Specification
No. 00 ．．． Bit use in dia 1.3~1.8mm screw No. 0．．． ．Bit use in dia 1.8~2.0mm screw No. 1．．． ．Bit use in dia 2.0~2.6mm screw No. 2．． ．．Bit use in dia 3.0~4.0mm screw SMT-30I with BIT 2 Pcs. Each SMT-50I with BIT 2 Pcs. Each SMT-70I with BIT 2# &... - Page 3 ※Specification MODEL SMT-120I SMT-180I SMT-250I Input voltage (DC) DC40V Power Consumption (N.m) 2.4-12 3.6-18 5-25 Torque (kgf.cm) 24.5-122.4 36.7-183.6 51-254.9 (Lbf.in) 21.2-106.2 31.9-159.3 44.2-221.2 Repeatable Torque Accuracy +/- 3sigma / AVG., 7.5% Unloaded Rotation Speed (r/min) 100-1000 60-600 40-400 Can be set and adjusted Weight (g) 1130 1790...
- Page 4 NOTICE Metal Assembly sensor screwdriver are designed for installing threaded fasteners in light industrial and appliance manufacturing applications. SUMAKE is not responsible for customer modification of tools for applications on which SUMAKE was not consulted. WARNING Important safety information enclosed.
-
Page 5: Important Safety Rules
Important Safety Rules WARNING! Read all instructions Failure to follow all instructions listed below may result in electric shock fire and/or serious injury. The term “power tool” in all of the warning listed below refer to your mains operated (corded) power tool or battery operated (cordless) power tool. -
Page 6: Grounding Instructions
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are cause by poorly maintained power tools. Inspect extension cords periodically and replace, if damaged. - Page 7 Operations Cautions 1) Do not allow chemicals such as acetone, benzene, thinner, trichloroethylene ketone, or other similar chemicals to come in contact with the sensor screwdriver housing as damage will result. 2) Use the sensor screwdriver carefully, do not drop or be impacted, it is best to use a balancer to lift it, and set it on the auxiliary arm for operation.
- Page 8 Function / Operating Introduction Number Product Name Description Use Hanging hole is available, to hang the Hanging Hole screwdriver Display OK light, NG light, screw removal Signal Light start and stop signal Switch rotation direction CW/CCW Button Switch Lock stationary gearbox and housing Front Lock Ring Load/unload and fixing the screwdriver bits Headgear...
- Page 9 2. All repairs and maintenance of this tool and its word must be performed by an authorized service center. 3. SUMAKE is not responsible for customer modification of tools for applications on which SUMAKE was not consulted. 4. Repairs should be made only by authorized, trained personnel. Consult your nearest SUMAKE authorized service center.
-
Page 10: Eu Declaration Of Conformity (Doc)
Equipment： ELECTRIC SCREWDRIVER Model/ Serial No.： SMT-10SI, SMT-30SI, SMT-30I, SMT-50I, SMT-70I, SMT-120I, SMT-180I, SMT-250I, SMT-30A, SMT-50A, SMT-70A, SMT-120A, SMT-180A, SMT-250A The object of the declaration described above is in conformity with the relevant union harmonization legislation: ... - Page 12 NOTE www.SUMAKE.com www.aircompressors.com.tw...
