Intense PRIMER 29 EXPERT Manual page 15

I M P O R T A N T N O T E :

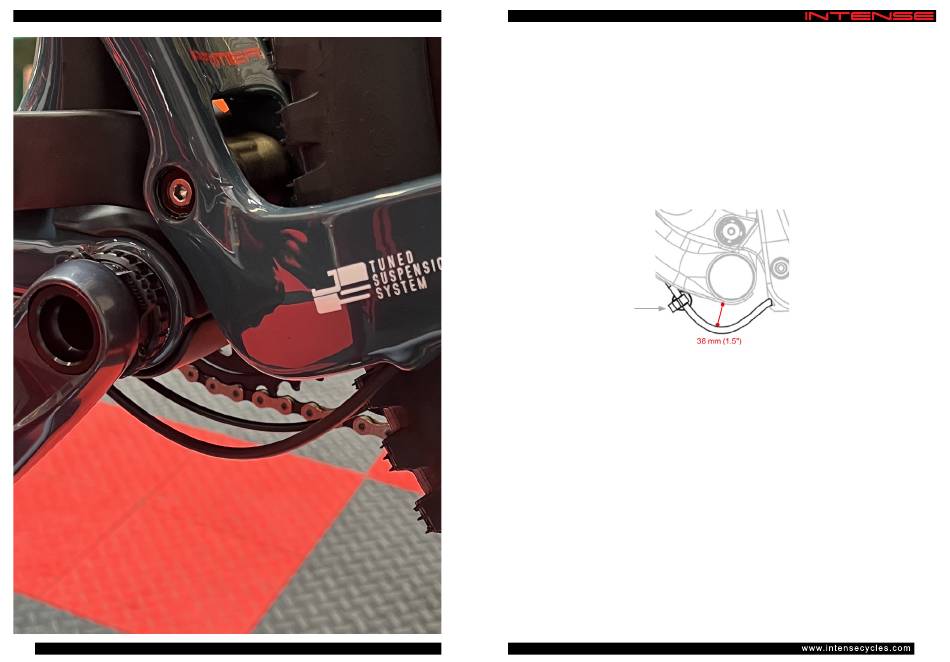

PRIMER 29 CABLE ROUTING
After assembly It is important to ensure the cables
are positioned 38mm (1.5") away from the bottom
surface of the downtube. This allows enough slack in
the cables so they do not come under tension when
the suspension compresses.
CABLE SPACER
If there is to much slack push the cable up into the
downtube gently, do not push the cable into the
rear triangle as it will cause the cable to rub against
your spokes. If there is not enough slack gently pull
the cable out of the downtube to 38mm (1.5"). After
adjusting your cables be sure to check the cable
clearance between your brake cable and wheel.
28 29
