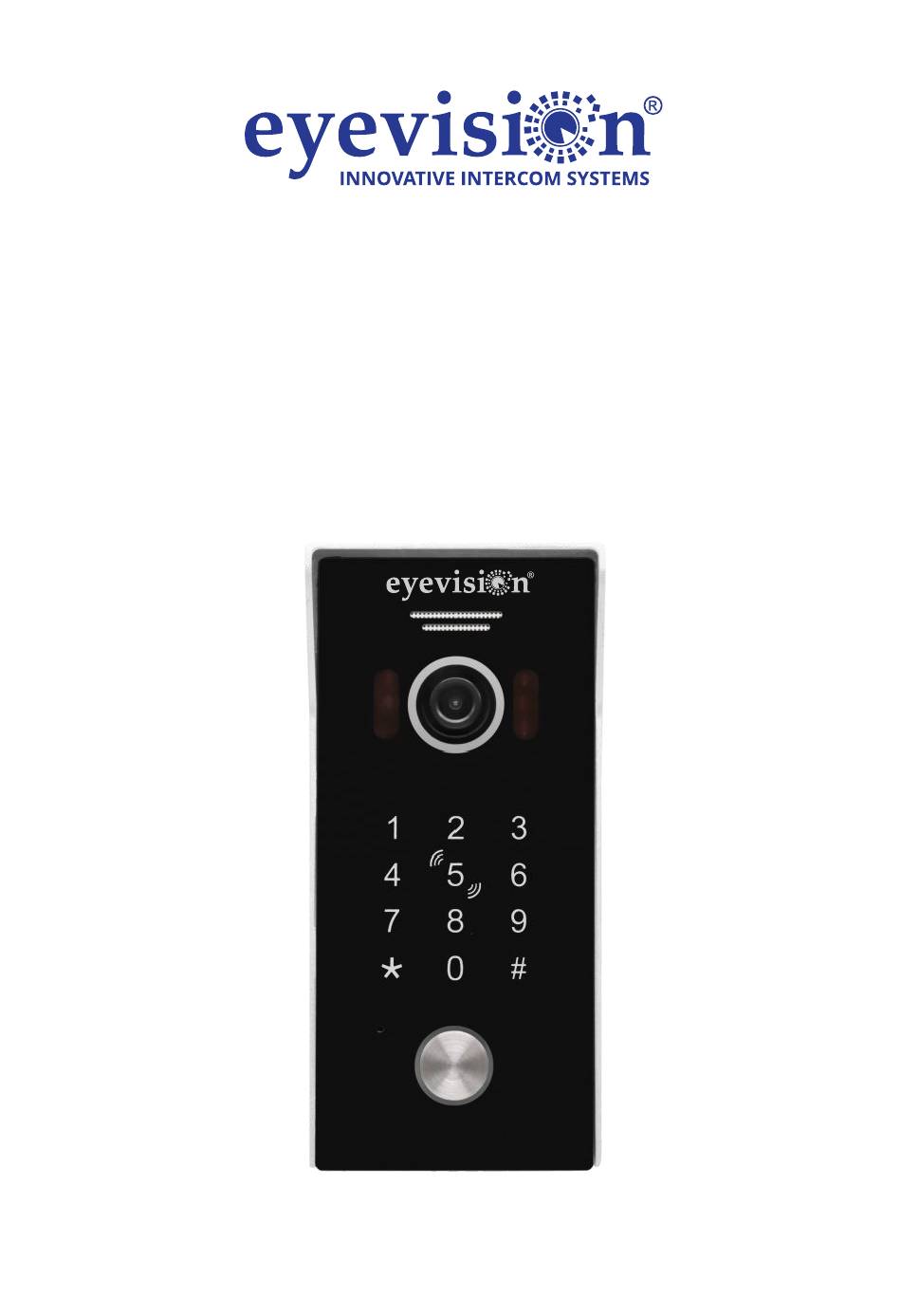

Eyevision® Direct To Smart Phone
WiFi Intercom
EV-IP-KP22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EV-IP-KP22 and is the answer not in the manual?

Questions and answers

Summary of Contents for Eyevision EV-IP-KP22

  • Page 1 Eyevision® Direct To Smart Phone WiFi Intercom EV-IP-KP22...
  • Page 2: Table Of Contents

    Descrip on The EV-IV-KP22 is a standalone access control keypad with a swipe card reader as well as control by smartphone APP anywhere in the world. This device is compa ble to func on with both Fail Secure and Fail Safe locks in addi on to being integrated with exit bu ons.
  • Page 3: Quick Setup Guide

    Quick Setup Quide This Guide will offer a quick, simple but limited op on for the programming this device. It will allow for a single 4-6 digit passcode to be added and then changed at any me. Add or Replace Passcode Default Admin Code is 999999 Enter the administrator opera on mode Admin Code #...
  • Page 4: Specifica Ons

    Specifica ons Working Voltage: DC 12-15V Standby Current: >=150mA <= 300 mA Working Temperature: -20 °C ~ +50 °C Door Relay me 0-150 S (Adjustable) Working Humidity <= 95% White light LED Camera Photosensi ve resistance Keypad Speaker Call bu on Card area Microphone 12V~15V DC in...
  • Page 5 Wiring Diagrams FRONT BACK RED (DC) ORANGE (NC) Black (GND) GREEN (COM) YELLOW (NO) RJ-45 EXIT Fail Secure Electric Striker Connection (Power ON to Unlock) Power Adapter BLACK (GND) Black 12V DC RED (NO 12V DC) Black/White 250mA Max. JOIN YELLOW (NO) RJ-45 EXIT...
  • Page 6: Installa On

    Installa on Accessories Outdoor unit----- 1 PCS Plas c Anchors-- 4 PCS Screws------------- 6 PCS 7 pin line---------- 1 PCS 3 pin line---------- 1 PCS 2 pin line---------- 1 PCS IC card------------- 2 PCS User manual----- 1 PCS...
  • Page 7: Indicators

    Indicators Operate Status LED light Buzzer Note ring Standby White Administrator White, red Beep x2 flashing Keypad Touch Beep Opera on Fail Beep x4 Opera on Success Beep x2 Auto Exit White Beep x3 Administra on Mode Device Unlocked Green Beep x2 The door is open, please come in...
  • Page 8: Tuya Smart App

    The Fill lights and LED backlight have light-sensi ve response func ons. During the day, the white fill lights and bu on LED backlight will not light up. At night, the LED bu on light is always on; when calling at night; the fill light automa cally turns on. Tuya Smart APP (1).
  • Page 9 Connec ng to the Tuya Smart APP (Wireless with QR Code) Admin Code # 8 23 # Change the device to wireless mode Default Admin Code is 999999 Press Camera & Lock Select QR Code: Press the + bu on and then select Smart Doorbell: Scan the QR Code with...
  • Page 10 Connec ng to the Tuya Smart APP (Wired Mode with Cable) Change the device to wired mode Admin Code # 8 22 # Default Admin Code is 999999 Press Camera & Lock Select Cable: Press the + bu on and then select Smart Doorbell: Press the + bu on: The green ck will...
  • Page 11: Programming Modes

    Programming Modes Mode Purpose Indicator Standby Unlocking the device LED light colour: White Administrator To change password, general se ngs and LED light colour: White with reset the device red flashing every second Unlocked Unlock a ached lock or trigger the LED light colour: Green opening of an a ached automa c gate.
  • Page 12: Reset

    Reset Admin Code To restore the device to factory se ngs Default Admin Code is 999999 If the input has been successful, the device will then immediately reboot itself (this will take 30s). During the restart, the device will be restored to the original factory se ngs.
  • Page 13: Delete Public Unlock Code

    Delete Public Unlock Code To delete a public unlock code Admin Code 3 Digit Posi on If successful, the device will sound Beep x 2. Default Admin Code is 999999 Default 001 Public Access Code is 123456 Setup Unlock Code The various unlock modes apply to user cards, each card will have an associated 4 digit code.
  • Page 14: Safety Mode Setup

    Safety Mode Setup Default Admin Code is 999999 To turn off safety mode Admin Code If successful, the device will sound Beep x 2. To turn on locked mode Admin Code Locked mode means that if a user con nues to use the wrong card or code 10 mes con nuously within a 5 minute period, the device will be locked out for 2 minutes and automa cally call a connected monitor if there is one.
  • Page 15: Switch Wired/Wireless Mode

    Switch Wired/Wireless Mode Default Admin Code is 999999 To change the device to wired mode Admin Code To change the device to wireless mode Admin Code The device will Beep x 2 indica ng the successful alloca on of wired/wireless mode. Add User Card In standby mode, swipe Add Card Master Card 3 mes within 15 seconds.
  • Page 16: User Opera Ons

    User Opera ons Every user card has an associated 4 digit passcode that a user may be required to or have the op on of inpu ng to unlock the device. The default user passcode for all user cards is 0000 but this code can only be used to ini ally modify the user passcode. The default user passcode cannot be used to unlock the device.
