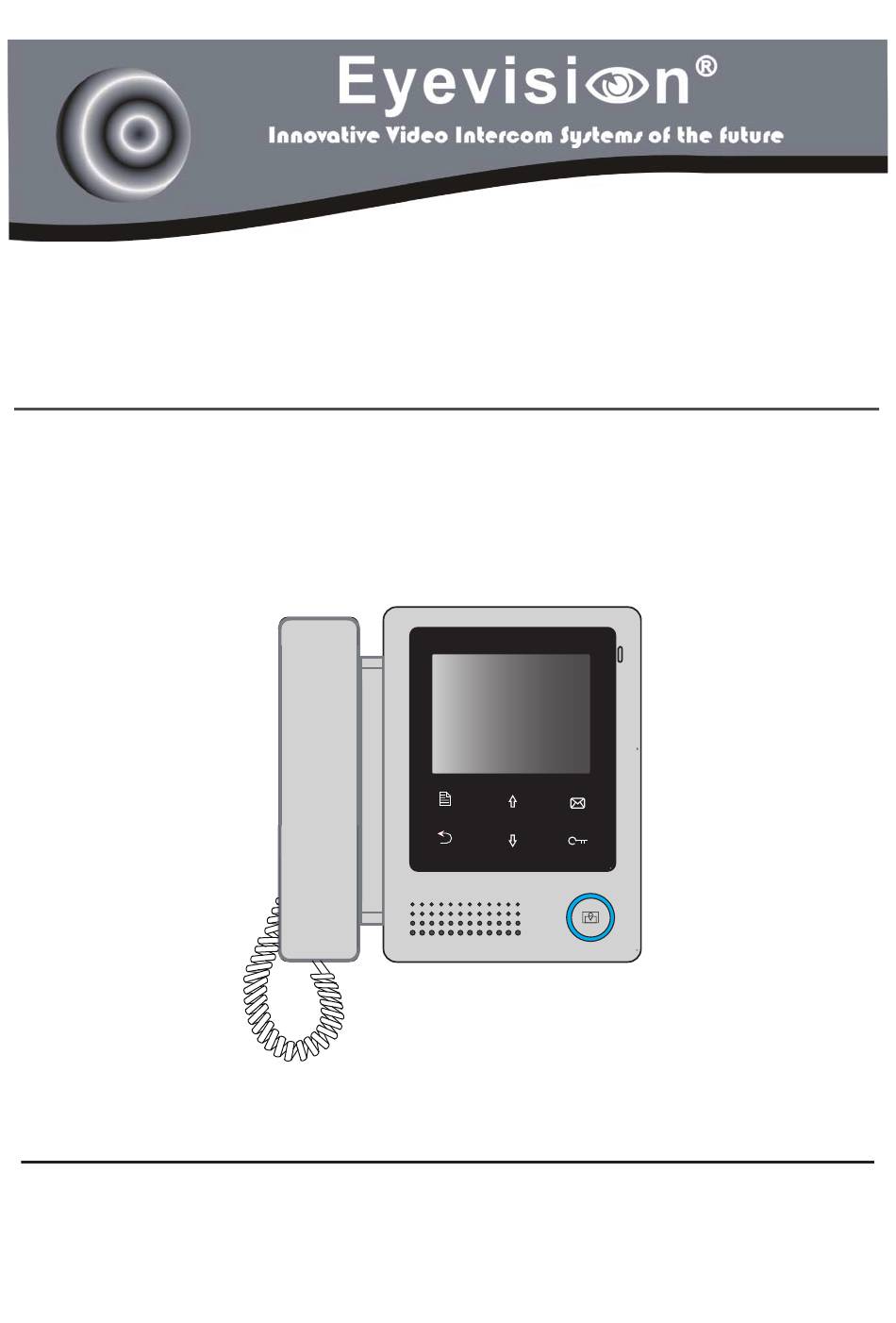

- Page 1 VIDEO DOOR PHONE SYSTEM USER MANUAL Model:EV-V4L...
-
Page 2: Parts And Function
Introduction The monitor is designed with 4 inch screen, it provides a resolution of 320x240 pixels with high quality image display, and it equipped with a handset to com- municate. The touch sensitive button makes the operation more easily. Parts and Function Microphone Mounting Hook LCD Screen... -
Page 3: Unit Mounting
Unit Mounting Accessory contents: Accessories include a Bracket, two 4X25 screws (use to fasten the Mounting Bracket), 2 wire connectors (use to connect with Monitor). Installation steps: Installation height for indoor monitor usually is 145~160cm(refer to sketch map). Wire the cable correctly(see the later connection chapter) then hang the Monitor on the Mounting Bracket firmly. -
Page 4: Door Release
• Pick up handset to talk with the visitor, the talking duration time is 90s. To end the conversation, please hand up the handset. If the system connects two or more Monitors, pick up any Monitor, the others will be automatically shut off. -
Page 5: Intercom Function
Intercom Function Intercom function can be initiated by any monitor when multi monitors are in- stalled. When the monitor is in standby mode, pick up handset, the Intercom item on main menu page will be selected, press MENU button to enter. Intercom Call: User in one apartment can call other apartments in the sys- tem, the namelist will be created automatically by the system. -
Page 6: Monitor Time Setting
Basic Setup Instruction User Setup (1) Ring Tone Setting Door Station Call Tone ... Intercom Call Tone ... Select User Setup item on main menu DoorBell Tone ... page to enter setup page. Select Door Ring Volume ... Station Call Tone, Intercom Call Next Page Tone or DoorBell Tone item, There Exit... -
Page 7: Menu Language Setting
Menu Language Setting Language Maximum 4 languages can be sup- √ English ported by the monitor. On main menu page, select User -> -> .The Setup Next Page Language languages that the monitor supported Cancel Save&Exit Select Item will be displayed, and the current lan- guage will be shown “√ ”. -
Page 8: Installation Setting
Installation Setting Enter Installation Setup Page Step1: Press UNLOCK button and hold for 2s when the moinitor in standby. Step2: Input 4 digits number according to the information. Step1 Step2 Code Number:[0000] [8000]:Master 0 [8001]~[8003]:Slaver 1~3 [8004]:Guard unit [8005]:Not guard unit [8006]:Panel on as slaver called [8007]:Panel off [8010]:Unlock mode 0 [8011]:Unlock mode 1... - Page 9 How to set the monitor panel on In default mode,when receive a calling,the master and slave monitors will ring at the same time,and just the master monitor can display the image while the slave monitors can not.But the settings can be changed,you can set the master monitor and all the slave monitors to panel on at the same time when receiving a call, just input the code number of 8006 on each slave monitor.
- Page 10 Note:1. During talking or monitoring state, press UNLOCK button,two unlock icons will be shown. Use button to select the item you want, and press UNLOCK or MENU button to release the correspond- ing door,press Close button to exit this page. 2.
-
Page 11: Specification
How to set the address for monitor Each monitor should be assigned an address in the system, total 32 address- es can be configured, the code number of 8200 to 8231 is used to controlled the address of 00 to 31. Please refer to the following table. Input Input No. User Code Input No. User Code User Code 8200... - Page 12 For service: PH +03 9532 0804 53 Cochranes Road Moorabbin Vitoria 3189 Australia...
