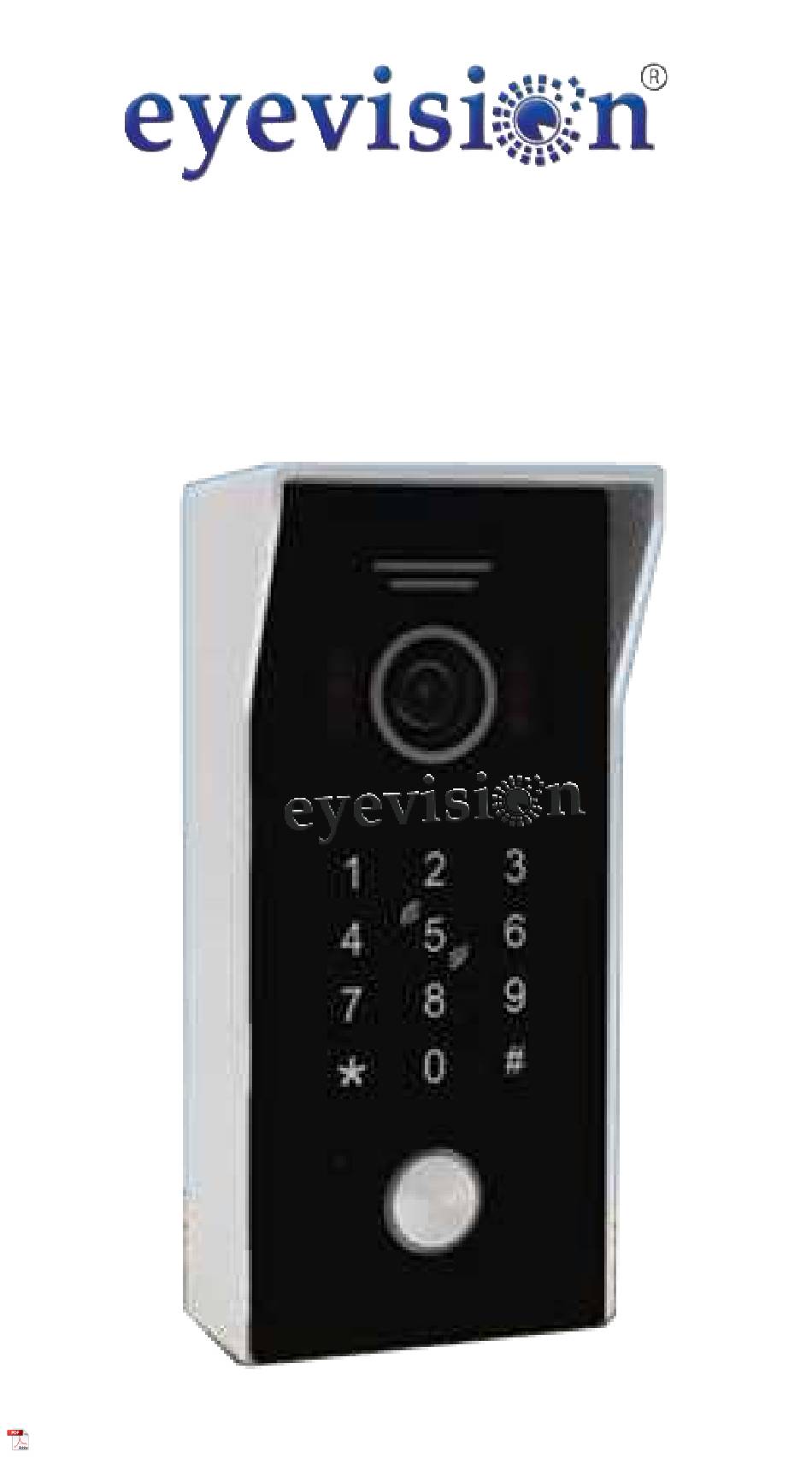

- Page 1 Direct to Smartphone Video Wi-Fi Intercom Outdoor Keypad Station EV-IP-KP22...
-
Page 2: Table Of Contents

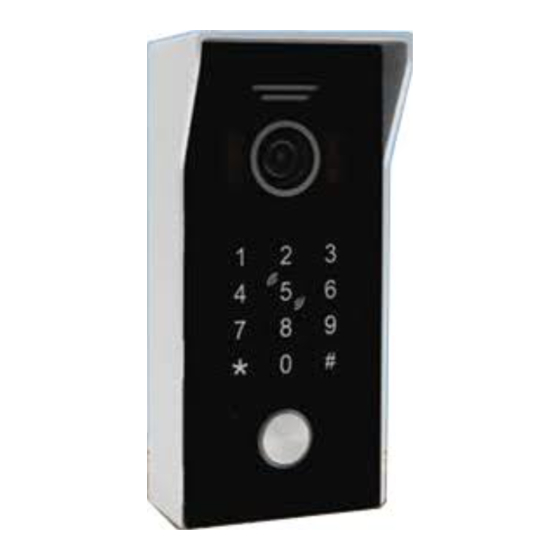

Description The EV-IV-KP22 is a standalone access control keypad with a swipe card reader as well as control by smartphone APP anywhere in the world. This device is compatible to function with both Fail Secure and Fail Safe locks in addition to being integrated with doorbell systems and exit buttons. -
Page 3: Quick Setup Guide
Dimension (L*W*D): 146*70*43mm(With See Your Visitors On Your Smartphones or Rain Cover) Tablets, Along With Two-Way Another innovative product from Communication & Door/Gate Release Eyevision® Function IC Card Access, Max.200 Pcs. IC Cards Unlocking Time: 01 150 Seconds ¡ Waterproof Construction IP rating 54;... -
Page 4: Specifications
Specifications Working Voltage: DC 12-15V Standby Current: >=150mA <= 300 mA Working Temperature: -20 °C ~ +50 °C Door Relay time 0-150 S (Adjustable) Working Humidity <= 95% White light LED Camera Photosensitive resistance Keypad Speaker Call button Card area Microphone 12V~15V DC in 10 RJ45 interface with... -
Page 5: Accessories
Accessories Outdoor unit----- 1 PCS Plastic Anchors-- 4 PCS Screws------------- 6 PCS 7 pin line---------- 1 PCS 3 pin line---------- 1 PCS 2 pin line---------- 1 PCS IC card------------- 2 PCS User manual----- 1 PCS Indicators Operate Status LED light Buzzer Note ring... -
Page 6: Functions
Functions This product can directly access Tuya cloud through wireless or network cable. This allows for remote access to the lock as well as the audio and video intercoms through the Tuya smart app from anywhere in the world. This product includes a keypad module and a RFID module. Both of these modules can be used to unlock the device if the code entered or card swiped is valid. -
Page 7: Connecting To The Tuya Smart App (Wireless With Qr Code)
Connecting to the Tuya Smart APP (Wireless with QR Code) Change the device to wireless mode Admin Code # 8 23 # Default Admin Code is 999999 Press Camera & Lock Select QR Code: Press the + button and then select Smart Doorbell: Scan the QR Code with Wait as the... -
Page 8: Connecting To The Tuya Smart App (Wired With Cable)
Connecting to the Tuya Smart APP (Wired Mode with Cable) Change the device to wired mode Admin Code # 8 22 # Default Admin Code is 999999 Press Camera & Lock Select Cable: Press the + button and then select Smart Doorbell: Press the + button: The green tick will... -
Page 9: Programming
Programming Modes Mode Purpose Indicator Standby Unlocking the device LED light colour: White Administrator To change password, general settings and LED light colour: White with reset the device red flashing every second Unlocked Unlock attached lock or trigger the LED light colour: Green opening of an attached automatic gate. -
Page 10: Reset
Reset Admin Code To restore the device to factory settings Default Admin Code is 999999 If the input has been successful, the device will then immediately reboot itself (this will take 30s). During the restart, the device will be restored to the original factory settings. -
Page 11: Delete Public Unlock Code
Delete Public Unlock Code To delete a public unlock code Admin Code 3 Digit Position If successful, the device will sound Beep x 2. Default Admin Code is 999999 Default 001 Public Access Code is 123456 Setup Unlock Code The various unlock modes apply to user cards, each card will have an associated 4 digit code. -
Page 12: Safety Mode Setup
Safety Mode Setup Default Admin Code is 999999 To turn off safety mode Admin Code If successful, the device will sound Beep x 2. To turn on locked mode Admin Code Locked mode means that if a user continues to use the wrong card or code 10 times continuously within a 5 minute period, the device will be locked out for 2 minutes and automatically call a connected monitor if there is one. -
Page 13: Switch Wired/Wireless Mode
Switch Wired/Wireless Mode Default Admin Code is 999999 To change the device to wired mode Admin Code To change the device to wireless mode Admin Code The device will Beep x 2 indicating the successful allocation of wired/wireless mode. Add User Card In standby mode, swipe Add Card Master Card 3 times within 15 seconds. -
Page 14: User Operations
User Operations Every user card has an associated 4 digit passcode that a user may be required to or have the option of inputting to unlock the device. The default user passcode for all user cards is 0000 but this code can only be used to initially modify the user passcode. The default user passcode cannot be used to unlock the device.
