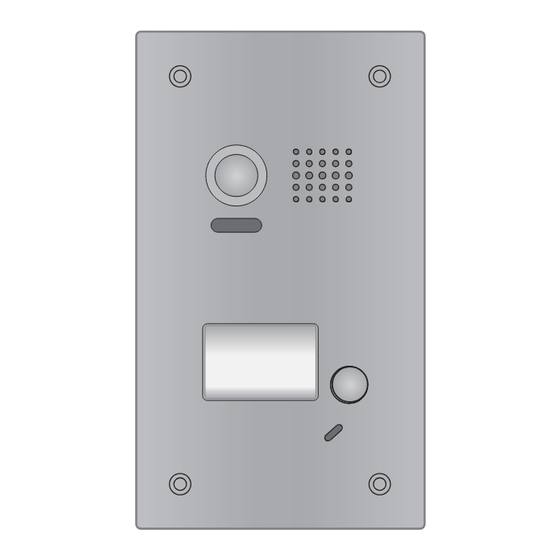

- Page 1 EV-D298F Series User Manual EV-D298F EV-D298F-D Model: EV-D298F(-D)
-
Page 3: Table Of Contents
CONTENTS 1.Parts and Functions..................... 1 2.Terminal Descriptions ..................1 3.Specifications ...................... 2 4.Mounting ......................2 4.1 Mounting ....................... 2 4.2 Placing Name Label ..................3 5.System Wiring and Connections ................. 3 5.1 Basic Connection................... 3 5.2 Electric Lock Connection ................4 5.2.1 Door Lock Controlled with Internal Power .......... -
Page 4: Parts And Functions
1.Parts and Functions Camera Lens Speaker Night Light Nameplate Call Button Microphone 110 mm Side View Mounting box 2.Terminal Descriptions JP/LK P L S + B U S Main Connect Port... -
Page 5: Specifications
• Lock control jumper, to select the lock type(see 5.2.1 , 5.2.2). JP/LK: • To connect the bus line and the electronic locks. Main Connect Port: • BUS: Connect to the bus line, no polarity. • PL: External lock power input, connect to the power positive(power +). •... -
Page 6: Placing Name Label
4.2 Placing Name Label Move the plastic cover away to open the transparent name label cover, insert a name paper, then put the plastic cover back to the panel. Name label. STEP 1 STEP 2 Unscrew the screws. Replace name label. 5.System Wiring and Connections 5.1 Basic Connection monitor... -
Page 7: Electric Lock Connection
5.2 Electric Lock Connection 5.2.1 Door Lock Controlled with Internal Power Note: Electronic lock of Power-on-to-unlock 1 2 3 connect E-magnetic lock, the jumper position in 1-2. type should be used. 1 2 3 The door lock is limited to 12V, and connect Electronic lock, the jumper position in 2-3. -
Page 8: Unlock Parameter Setting(Set On Monitor)
5.2.3 Unlock parameter setting(set on monitor) H/W : a1.3 S/W: V17.11.418.00 Manual Monitor Intercom Multimedia Local addr: Monitor Unlock timing: Video standard: UI-CODE: Close Memory Album User Setup MCM-VER.: Playback Updated: About 09/30/2010 Thu.16:41 1.Touch item on main 2.Touch the screen anywhere menu page. -
Page 9: Multi Monitors Connection
5.4 Multi Monitors Connection 5.4.1 Basic IN-OUT Wiring Mode 3 4 5 6 3 4 5 6 3 4 5 6 3 4 5 6 Code=15, DIP-6=on Code=14, DIP-6=off Code=1, DIP-6=off Code=0, DIP-6=off monitor monitor monitor monitor 100~240VAC BUS(IM) BUS(DS) (Device Address:0) - Page 10 5.4.2 With EV-DBC4A Wiring Mode monitor monitor 3 4 5 6 3 4 5 6 Impedance Code=14, DIP-6=on Code=15, DIP-6=on OFF ON switch monitor monitor 3 4 5 6 3 4 5 6 Code=12, DIP-6=on Code=13, DIP-6=on monitor monitor 3 4 5 6 3 4 5 6 Code=3, DIP-6=on Code=2, DIP-6=on...
-
Page 11: Setup
6. Setup Note:Monitors response button A must set the user code from 0 to 15.and button B set the user code from 16 to 31. The internal structure of the ONE button version and the TWO buttons are the same. Both have the A, and B button. -
Page 12: Id Of Doorstation Settings
6.1 ID of Doorstation Settings The ID of doorstation can be set to ID0/ID1/ID2/ID3.The default is ID0. 1)Power-on within 5 seconds; Press and hold "A" and "B" 2)Press and hold "B" button for 3 button for 3 seconds at the same seconds, it will enter the setting time, it will enter the state of ID state of prepare. -
Page 13: Unlock Time Settings
6.2 Unlock Time Settings The unlock time can be set to 1~30 seconds. The default is 1s. 1)Power-on within 5 seconds; Press and hold "A" button for 3 2)Press and hold "B" button for 3 seconds, it will enter the state of seconds, it will enter the setting unlock time setting. -
Page 14: Ringtone Modes Settings
6.3 Ringtone Modes Settings The system supports three ringtone modes: [A]one ringtone, [B]continuous ringtone, [C]forbid ringtone. The default is one ringtone. 1)Power-on within 5 seconds; Press and hold "B" button for 3 2)Press and hold "B" button for 3 seconds at the same time, it will seconds, it will enter the setting enter the state of ringtone modes state of prepare. -
Page 15: Cables Requirements
7.Cables Requirements The maximum distance of the wiring is limited in the DT system. Using different cables may also affect the maximum distance which the system can reach. The farest monitor monitor with two or four monitors monitor monitor EV-DBC4A 100~240VAC When Monitor quantity <... - Page 16 For service: PH +03 9532 0804 53 Cochranes Road Moorabbin Victoria 3189 Australia...
