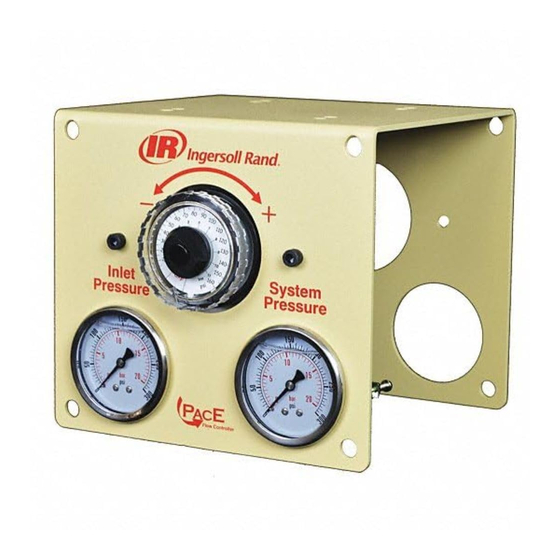

- Page 1 49124589 Revision A August 2015 PacE Flow Controller Installation and User Manual Save These Instructions...
-
Page 2: Table Of Contents
TablE oF ConTEnTS TablE oF ConTEnTS ........... . . 2 InSTallaTIon. -
Page 3: Installation
WARNING FaIlURE oR IMPRoPER SElECTIon oR IMPRoPER USE oF THE PRodUCTS and/oR SySTEMS dESCRIbEd HEREIn oR RElaTEd ITEMS Can CaUSE dEaTH, PERSonal InjURy and PRoPERTy daMagE. This document and other information from the Company, its subsidiaries and authorized distributors provide product and / or system options for further investigation by users having technical expertise. -
Page 4: Adjustment Of Measuring System
adjUSTMEnT oF MEaSURIng SySTEM Units are preadjusted at the factory and should require no determine actual setting. additional calibration at time of installation. In the unlikely event that a unit needs readjustment Front Dial Indicator is for reference only and has no of its measuring system, please follow the following bearing on unit functionality or actual Inlet or System recommendations. -
Page 5: Maintenance
TyPICal InSTallaTIon 90 PSI (6.3 BAR) 85 PSI (5.9 BAR) 60 PSI (4.2 BAR) 105 PSI (7.3 BAR) 91 PSI +/- (6.3 BAR +/-) 110 PSI (7.6 BAR) 115 PSI (8 BAR) MaInTEnanCE IMPoRTanT MaInTEnanCE InSTRUCTIonS FoR PaCE MAINTENANCE SERVICE KITS are available for PacE FloW ConTRollER 0.5”, 1”... -
Page 6: Order Information And Replacement Parts
oRdER InFoRMaTIon and REPlaCEMEnT PaRTS Pace Flow Controller (nPT) description 49124365 PACE, 1/2” NPT, LEFT TO RIGHT FLOW 49124373 PACE, 1” NPT, LEFT TO RIGHT FLOW 49124381 PACE, 2” NPT, LEFT TO RIGHT FLOW 49124399 PACE, 1/2” NPT, RIGHT TO LEFT FLOW 49124407 PACE, 1”... - Page 8 ingersollrandproducts.com © 2015 Ingersoll Rand...
