- Page 1 QUICK START GUIDE Force 4600C...
- Page 2 Cambium recommends reviewing the Cambium Networks website for the latest changes and updates to products. Cambium does not assume any liability arising out of the application or use of any product, software, or circuit described herein;...
-
Page 3: Table Of Contents
IC Interference Statement Attention Note Caring for the environment In EU countries In non-EU countries Product Description Overview of ePMP Purpose – ePMP portfolio Force 4600C Typical installation equipment Wireless operation MIMO Time-division duplexing Adaptive modulation Radar avoidance Encryption Country codes... - Page 4 Software upgrade Further reading on system management System Planning Site planning Site installation Grounding and lightning protection Lightning protection zones Electromagnetic Compatibility (EMC) compliance System Hardware Force 4600C Integrated description Part numbers Mounting bracket Interfaces Specifications Heater Wind loading Installation...
- Page 5 Ethernet standards and cable lengths Outdoor Cat5e cable Surge suppression unit Gigabit Ethernet Surge Suppressor Regulatory Information General wireless specifications Regulatory limits Conforming to the limits Available spectrum Channel bandwidth Electromagnetic Compatibility (EMC) compliance Compliance with safety standards Glossary Cambium Networks Contents...
-
Page 6: About This Guide
For products shipped after October 1 , 2018 Cambium Networks' standard hardware warranty is for three (3) years from the date of shipment from Cambium Networks or a Cambium Networks distributor. Cambium Networks warrants that hardware will conform to the relevant published specifications and will be free from material defects in material and workmanship under normal use and service. -
Page 7: Security Advice
Security advice Cambium Networks’ systems and equipment provide security parameters that can be configured by the operator based on their particular operating environment. Cambium Networks recommends setting and using these parameters following industry-recognized security practices. Security aspects to be considered are protecting the confidentiality, integrity, and availability of information and assets. Assets include the ability to communicate, information about the nature of the communications, and information about the parties involved. -
Page 8: Ic Interference Statement
Caution Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 9: Attention
Warning Operation on oil platforms, automobiles, trains, maritime vessels and aircraft shall be prohibited. L'exploitation sur les plates-formes pétrolières, les automobiles, les trains, les navires maritimes et les aéronefs est interdite. Warning The antenna height shall be determined by the installer or operator of the standard-power access point or fixed client device, or by automatic means. -
Page 10: In Eu Countries
Cambium Networks equipment in the EU countries. Disposal of Cambium Networks equipment European Union (EU) Directive 2002/96/EC Waste Electrical and Electronic Equipment (WEEE). Do not dispose of Cambium Networks equipment in landfill sites. For disposal instructions, see https://support.cambiumnetworks.com Disposal of surplus packaging Do not dispose of surplus packaging in landfill sites. -
Page 11: Product Description

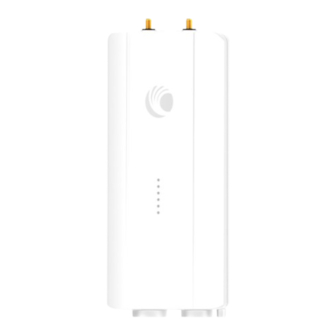

Force 4600C Force 4600C is the fourth-generation 2x2 MIMO connectorized Subscriber Module (SM) that carries on the interference tolerance mechanisms with an emphasis on high-performance in low-density Point-to- Multipoint (PMP) sectors and Point-to-Point (PTP) applications. The Force 4600C provides 2 Gbps capacity in PTP applications meeting the requirements of enterprise, industrial, government, and service... -
Page 12: Typical Installation Equipment
AFC feature. This feature comes with a specific security certificate that enables the radio to connect to Cambium Networks AFC partner, Qualcomm. For the limited lifetime of the product, defined as seven years from the initial activation, there is no additional cost to the network operator to use the AFC interface. -
Page 13: Time-Division Duplexing
(duty cycle). Three fixed Downlink/Uplink frame ratios are available – 75/25, 50/50, and 30/70. Adaptive modulation Force 4600C can transmit a data over the wireless link using several different modulation modes ranging from 4096-QAM to QPSK. For a given channel bandwidth and TDD frame structure, each modulation mode transmits data at a fixed rate. -
Page 14: Country Codes
Country codes Some aspects of the wireless operation are controlled, enforced, or restricted according to a country code. ePMP country codes represent individual countries (for example Denmark) or regulatory regions (for example FCC or ETSI). Country codes affect the following aspects of wireless operation: Maximum transmit power Radar avoidance (upcoming release) Frequency range... -
Page 15: Webserver
The management agent supports fault and performance management utilizing an SNMP interface. The management agent is compatible with SNMP v2c using one Management Information Base (MIB) file which is available for download from the Cambium Networks support site: https://support.cambiumnetworks.com/files/epmp. Network Time Protocol (NTP) The clock supplies accurate date and time information to the system. -
Page 16: Software Upgrade
The Time Zone option is configurable on the Configure > System page and may be used to offset the received NTP time to match the operator’s local time zone. Software upgrade Software upgrades may be issued through the radio web interface (Tools > Software Upgrade) or cnMaestro (cloud.cambiumnetworks.com). -
Page 17: System Planning
System Planning This chapter describes the site planning of an ePMP link. The following topics are described in this chapter: Factors to be considered when planning the proposed network is described under Site planning. Site planning Conduct a site survey to ensure that the proposed sites meet the requirements defined in this section. Site installation An ePMP site typically consists of a high supporting structure such as a mast, tower, or building for the devices. - Page 18 Figure 2: Access Point installation diagram Subscriber / Point-to-Point installation diagram Figure 3: System Planning...
-
Page 19: Lightning Protection Zones
Lightning protection zones Use the rolling sphere method as shown in Figure 4 to determine where it is safe to mount the equipment. An imaginary sphere, typically 50 meters in radius, is rolled over the structure. Where the sphere rests against the ground and a strike termination device (such as a finial or ground bar), all the space under the sphere is considered to be in the zone of protection (Zone B). - Page 20 Table 1: EMC emissions compliance Region Specification (Type Approvals) FCC CFR 47 Part 15 class B Canada RSS-210 RSS-247 Europe ETSI EN 301 489-1 ETSI EN 301 489-17 System Planning...
-
Page 21: System Hardware
System Hardware This chapter describes the hardware components of an ePMP link. The following topics are described in this chapter: The Force 4600C hardware, part numbers, mounting equipment, and specifications are described Force 4600C. The power supply hardware, part numbers, and specifications are described in Power supply. - Page 22 Figure 5: Force 4600C integrated Warning The operation of this device is prohibited on oil platforms, cars, trains, boats, and aircraft. Operation of the transmitters in 5.925 GHz - 7.125 GHz band is prohibited for control of communications with the unmanned aircraft systems.
-
Page 23: Part Numbers
6 GHz 2x2 Dish Antenna 2-pack, priced per unit (optional) C060900D021A Mounting bracket The Force 4600C module is designed to be mounted with a sector antenna or pole-mounted using the mounting bracket provided in the box with the radio. -
Page 24: Interfaces
Ethernet 10 Gigabit cage Optional 10 Gigabit SFP cage for SFP module Specifications The Force 4600C integrated module conforms to the specifications listed inTable 4 Table The integrated module meets the low-level static discharge specifications identified in Electromagnetic compatibility (EMC) compliance and provides internal surge suppression, but does not provide lightning suppression. -
Page 25: Heater
IPx0 Heater At start-up, if the Force 4600C module temperature is at or below 32°F (0°C), an internal heater is activated to ensure that the device can successfully begin operation. The unit’s heater is only activated when the unit is powered on and will not apply heat to the device once the startup is complete. When the unit temperature is greater than 32°F (0°C), the heater is deactivated and the unit continues its start-up... -
Page 26: Installation
Applying these formulae to the ePMP device at different wind speeds, the resulting wind loadings are shown in Table 7 Table Table 7: Force 4600C wind loading (Kg) TypeofePMPdevice Largest surfacearea(squaremeters) Wind speed (meters per second) Force 4600C Integrated 0.03 2.82 Kg... - Page 27 Installing Force 4600C To install Force 4600C, perform the following steps: 1. Place the M8 nuts to antenna and tighten by applying 5.0 Nm torque. 2. Assemble antenna to pole with rear pole bracket and secure it with M8 nut by applying 10.0 Nm torque.
-
Page 28: Software Packages
4. Connect the GPS SMA connector to the GPS antenna puck (included in the box). Software packages Force 4600C devices can be upgraded by downloading new software packages from the Cambium Networks site or by using cnMaestro. The software packages applicable to ePMP integrated radios are named: ePMP-AX-v5.x.x.img (or higher version number) -
Page 29: Power Supply
The SFP port is the longer gland. SFP and SFP+ are supported in this radio. To achieve the full potential of the radio, it is recommended to use 10G transceiver. Table 9 describes the part numbers of SFPs from Cambium Networks that can be ordered as optional: Table 9: SFP part numbers Cambium description Cambium part number 1G SFP MMF SX Transceiver, 850 nm (-40°C to 85°C) -
Page 30: Power Supply Interfaces
Table 10: Power supply part numbers Cambium description Cambium part number Device Compatibility POWER SUPPLY, 30W, 56V – Gbps support N000000L034 ePMP Access Point Attention Each ePMP device must be powered by the corresponding power supply listed Table 10. This product is intended to be supplied by a UL Listed and IEC certified Power Supply Unit marked LPS or PS2 and providing power over the Ethernet (PoE) supply. -
Page 31: Power Supply Specifications
Interface Function Gigabit Data + Power RJ45 socket for connecting Cat5e cable to the radio. Note All RJ45 Ethernet LAN cables used for providing power or are connected to power ports (PoE) must be UL certified with VW-1 markings. Gigabit Data RJ45 socket for connecting Cat5e cable to the network. -
Page 32: Power Supply Location Considerations
Power supply location considerations Find a location for the power supply that meets the following requirements: The power supply is rated for indoor use and can be mounted on a wall or other flat surface. The power supply must be kept dry, with no possibility of condensation, flooding, or rising dampness. -
Page 33: Surge Suppression Unit
50 micro-inch thick 24-carat gold, exceeding TIA-1096 specifications and ensuring the best possible connection and oxidation resistance. Industrial-grade cable by Cambium Networks is well suited for high-quality durable installations of subscriber modules, APs, and enterprise point-to-point links and in tactical non-permanent deployments of infrastructure. ... -
Page 34: Gigabit Ethernet Surge Suppressor
Gigabit Ethernet Surge Suppressor The Gigabit Ethernet surge suppressor is critical for lightning protection to minimize the potential for damage. Gigabit Ethernet Surge Suppressor Figure 8: Table 19: Surge suppressor part numbers Cambium description Cambium part number Device Compatibility Gigabit Surge Suppressor (56V) C000000L033A ePMP Access Points Attention Choose the 56V surge suppressor option based on your installed device power... -
Page 35: Regulatory Information
Regulatory Information This section describes planning of the ePMP links to conform to the regulatory restrictions that apply in the country of operation. Attention The user must ensure the ePMP product operates in accordance with local regulatory limits. Note Contact the applicable radio regulator to check if the registration of the ePMP link is required. -
Page 36: Regulatory Limits
Regulatory limits The local regulator may restrict frequency usage and channel width and may limit the amount of conducted or radiated transmitter power. Many countries impose EIRP limits (allowed EIRP) on products operating in the bands used by the ePMP Series. For example, in the 5 GHz band in Europe, these limits are calculated as follows: In the 5.8 GHz band (5725 MHz to 5875 MHz), the EIRP must not exceed the lesser of 36 dBm or (23 + 10 x Log Channel width in MHz) dBm. -
Page 37: Electromagnetic Compatibility (Emc) Compliance
Electromagnetic Compatibility (EMC) compliance ePMP complies with European EMC Specification EN301 489-1 with testing carried out to the detailed requirements of EN 301 489-17. The EMC specification type approvals that is granted for ePMP are listed under Table Table 22: EMC emissions compliance Region Specification (Type Approvals) FCC CFR 47 Part 15 class B... -
Page 38: Glossary
Glossary Term Definition Advanced Encryption Standard ANSI American National Standards Institute CINR Carrier to Interference plus Noise Ratio Cluster Management Module Dynamic Frequency Selection EIRP Equivalent Isotropically Radiated Power Electromagnetic Compatibility Electromagnetic Discharge Ethernet ETSI European Telecommunications Standards Institute Federal Communications Commission Forward Error Correction Graphical User Interface HTTP... - Page 39 Term Definition Point to Multipoint Point to Point Quadrature Amplitude Modulation QPSK Quadrature Phase Shift Keyed Radio Frequency Return Merchandise Authorization RSSI Received Signal Strength Indication RTTT Road Transport and Traffic Telematics Receive Standard Absorption Rate SNMP Simple Network Management Protocol Software Time Division Duplex TDWR...
-
Page 40: Cambium Networks
Devon, TQ13 7UP United Kingdom www.cambiumnetworks.com Cambium Networks and the stylized circular logo are trademarks of Cambium Networks, Ltd. All other trademarks are the property of their respective owners. © Copyright 2024 Cambium Networks, Ltd. All rights reserved. Cambium Networks...
