- Page 1 QUICK START GUIDE ePMP 4600L...
- Page 2 Cambium recommends reviewing the Cambium Networks website for the latest changes and updates to products. Cambium does not assume any liability arising out of the application or use of any product, software, or circuit described herein;...
-
Page 3: Table Of Contents
IC Interference Statement Attention Note Caring for the environment In EU countries In non-EU countries Product Description Overview of ePMP Purpose – ePMP portfolio ePMP 4600L Typical installation equipment Wireless operation MIMO Time-division duplexing Adaptive modulation Radar avoidance Encryption Country codes... - Page 4 Software upgrade Further reading on system management System Planning Site planning Site installation Grounding and lightning protection Lightning protection zones Electromagnetic Compatibility (EMC) compliance System Hardware ePMP 4600L Access Point Description Part numbers Mounting bracket Interfaces Specifications Heater Wind loading Installation...
- Page 5 Ethernet standards and cable lengths Outdoor Cat5e cable Surge suppression unit Gigabit Ethernet Surge Suppressor Regulatory Information General wireless specifications Regulatory limits Conforming to the limits Available spectrum Channel bandwidth Electromagnetic Compatibility (EMC) compliance Compliance with safety standards Glossary Cambium Networks Contents...
-
Page 6: About This Guide
For products shipped after October 1 , 2018 Cambium Networks' standard hardware warranty is for three (3) years from the date of shipment from Cambium Networks or a Cambium Networks distributor. Cambium Networks warrants that hardware will conform to the relevant published specifications and will be free from material defects in material and workmanship under normal use and service. -
Page 7: Security Advice
Security advice Cambium Networks’ systems and equipment provide security parameters that can be configured by the operator based on their particular operating environment. Cambium Networks recommends setting and using these parameters following industry-recognized security practices. Security aspects to be considered are protecting the confidentiality, integrity, and availability of information and assets. Assets include the ability to communicate, information about the nature of the communications, and information about the parties involved. -
Page 8: Ic Interference Statement
Caution Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 9: Attention
Warning Operation on oil platforms, automobiles, trains, maritime vessels and aircraft shall be prohibited. L'exploitation sur les plates-formes pétrolières, les automobiles, les trains, les navires maritimes et les aéronefs est interdite. Warning The antenna height shall be determined by the installer or operator of the standard-power access point or fixed client device, or by automatic means. -
Page 10: In Eu Countries
Cambium Networks equipment in the EU countries. Disposal of Cambium Networks equipment European Union (EU) Directive 2002/96/EC Waste Electrical and Electronic Equipment (WEEE). Do not dispose of Cambium Networks equipment in landfill sites. For disposal instructions, see https://support.cambiumnetworks.com Disposal of surplus packaging Do not dispose of surplus packaging in landfill sites. -
Page 11: Product Description

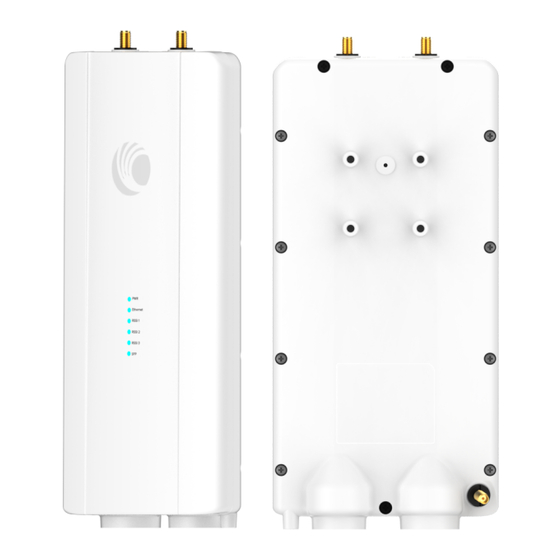

4600L is a 2 x 2 MIMO connectorized AP that can support a wide variety of deployments including 90/120-degree sectors, narrow-sector horns, or even 360-degree omni coverage. The ePMP 4600L system consists of the ePMP 4600L AP and a wide variety of subscriber modules with varying form factors and link budgets. -
Page 12: Typical Installation Equipment
This new license may require a fee at that time. The ePMP 4600L system boasts a high packet per second performance, peak throughput of 2+ Gbps, and supports subscriber modules with up to 2+ Gbps of peak throughput. -
Page 13: Wireless Operation
(duty cycle). Three fixed Downlink/Uplink frame ratios are available – 75/25, 50/50, and 30/70. Adaptive modulation ePMP 4600L can transmit a data over the wireless link using several different modulation modes ranging from 4096-QAM to QPSK. For a given channel bandwidth and TDD frame structure, each modulation mode transmits data at a fixed rate. -
Page 14: Encryption
There is a secondary requirement for bands requiring radar avoidance. Regulators have mandated that products provide a uniform loading of the spectrum across all devices. In general, this prevents operation with fixed frequency allocations as follows: ETSI regulations allow frequency planning of networks (as that has the same effect of spreading the load across the spectrum). -
Page 15: System Management
The configuration parameters of the ePMP devices are described in Using the menu options. System management This section describes the ePMP management system, including the web interfaces, installation, alerts, upgrades, configuration, and management software. Management agent ePMP equipment is managed through an embedded management agent. Management workstations, network management systems, or PCs can be connected to this agent using the module’s Ethernet port, SFP port, over the air (Subscriber Module connection through AP), or by using the device Wi-Fi management interface. -
Page 16: Snmp
The management agent supports fault and performance management utilizing an SNMP interface. The management agent is compatible with SNMP v2c using one Management Information Base (MIB) file which is available for download from the Cambium Networks support site: https://support.cambiumnetworks.com/files/epmp. Network Time Protocol (NTP) The clock supplies accurate date and time information to the system. -
Page 17: System Planning
System Planning This chapter describes the site planning of an ePMP link. The following topics are described in this chapter: Factors to be considered when planning the proposed network is described under Site planning. Site planning Conduct a site survey to ensure that the proposed sites meet the requirements defined in this section. Site installation An ePMP site typically consists of a high supporting structure such as a mast, tower, or building for the devices. - Page 18 Figure 2: Access Point installation diagram Subscriber / Point-to-Point installation diagram Figure 3: System Planning...
-
Page 19: Lightning Protection Zones
Lightning protection zones Use the rolling sphere method as shown in Figure 4 to determine where it is safe to mount the equipment. An imaginary sphere, typically 50 meters in radius, is rolled over the structure. Where the sphere rests against the ground and a strike termination device (such as a finial or ground bar), all the space under the sphere is considered to be in the zone of protection (Zone B). - Page 20 Table 2: EMC emissions compliance Region Specification (Type Approvals) FCC CFR 47 Part 15 class B Canada RSS-210 RSS-247 Europe ETSI EN 301 489-1 ETSI EN 301 489-17 System Planning...
-
Page 21: System Hardware
Software packages Description The ePMP 4600L device is a self-contained transceiver unit that contains both radio and networking electronics. It is available with 2 X 2 MU-MIMO connectorized antenna. The MPE distance for FCC is 371 cm (Dish), 132 cm (Sector), and for IC is 20 cm. - Page 22 Figure 5: ePMP 4600L Access Point Warning The operation of this device is prohibited on oil platforms, cars, trains, boats, and aircraft. Operation of the transmitters in 5.925 GHz - 7.125 GHz band is prohibited for control of communications with the unmanned aircraft systems.
-
Page 23: Part Numbers
External GPS Antenna N000900L030A Mounting bracket The ePMP 4600L AP module is designed to be mounted with a pole-mounted using the mounting bracket provided in the box with the radio. ePMP 4600L AP mounting bracket is shown in Figure 6... -
Page 24: Interfaces
100/1000BASE-T Ethernet Data Optical or Copper Gigabit Management and/or data Ethernet Specifications The ePMP 4600L connectorized module conforms to the specifications listed in Table 5 Table The connectorized module meets the low-level static discharge specifications identified in Electromagnetic compatibility (EMC) compliance and provides internal surge suppression, but does not provide lightning suppression. -
Page 25: Heater
Heater At startup, if the ePMP 4600L AP module temperature is at or below 32°F (0°C), an internal heater is activated to ensure that the device can successfully begin operation. The unit’s heater is only activated when the unit is powered on and does not apply heat to the device after the start-up process is complete. - Page 26 Applying these formulae to the ePMP device at different wind speeds, the resulting wind loadings are shown in Table 8 Table Table 8: ePMP 4600L Access Point wind loading (Kg) Type of ePMP device Largest Wind speed (meters per second)
-
Page 27: Installation
Package contents Installing ePMP 4600L To install ePMP 4600L Access Point, perform the following steps: 1. Place the M8 nuts to antenna and tighten by applying 5.0 Nm torque. 2. Assemble antenna to pole with rear pole bracket and secure it with M8 nut by applying 10.0 Nm torque. - Page 28 3. Connect the RF cables to third party horn or sector antenna. 4. Connect the GPS SMA connector to the GPS antenna puck (included in the box). System Hardware...
-
Page 29: Software Packages
Software packages ePMP 4600L AP devices can be upgraded by downloading new software packages from the Cambium Networks site or by using cnMaestro. The software packages applicable to ePMP integrated radios are named: ePMP-AX-v5.x.x.img (or higher version number) Power supply For details of the ePMP power supply units, see:... -
Page 30: Power Supply Part Numbers
Table 10: SFP part numbers Cambium description Cambium part number 1G SFP MMF SX Transceiver, 850 nm (-40°C to 85°C) SFP-1G-SX 1G SFP SMF LX Transceiver, 1310 nm (-40°C to 85°C) SFP-1G-LX 1000 Base-T (RJ45) SFP Transceiver ( -40°C to 85°C) SFP-1G-Copper 10G SFP+ MMF SR Transceiver, 850 nm ( -40°C to 85°C) SFP-10G-SR... -
Page 31: Power Supply Specifications
Figure 7: Power supply interfaces Table 12: Power supply interface functions Interface Function Power input Mains power input. Power output Gigabit Data + Power RJ45 socket for connecting Cat5e cable to the radio. Note All RJ45 Ethernet LAN cables used for providing power or are connected to power ports (PoE) must be UL certified with VW-1 markings. -
Page 32: Power Supply Location Considerations
Table 16: Power supply environmental specifications Category Specification Ambient Operating Temperature 0°C to +40°C Humidity 20% - 90% Table 17: Power supply electrical specifications Category Specification AC Input 100 to 240 VAC Efficiency Meets Energy Level 6 Over Current Protection Short circuit, with auto-recovery Hold uptime 10 ms minimum at maximum load, 120 VAC Power supply location considerations... -
Page 33: Outdoor Cat5E Cable
50 micro-inch thick 24-carat gold, exceeding TIA-1096 specifications and ensuring the best possible connection and oxidation resistance. Industrial-grade cable by Cambium Networks is well suited for high-quality durable installations of subscriber modules, APs, and enterprise point-to-point links and in tactical non-permanent deployments of infrastructure. ... -
Page 34: Surge Suppression Unit
Surge suppression unit Structures, equipment, and people must be protected against power surges (typically caused by lightning) by conducting the surge current to the ground via a separate preferential solid path. The actual degree of protection required depends on local conditions and applicable local regulations. To adequately protect an ePMP installation, both ground bonding and transient voltage surge suppression are required. -
Page 35: Regulatory Information
Regulatory Information This section describes planning of the ePMP links to conform to the regulatory restrictions that apply in the country of operation. Attention The user must ensure the ePMP product operates in accordance with local regulatory limits. Note Contact the applicable radio regulator to check if the registration of the ePMP link is required. -
Page 36: Regulatory Limits
Regulatory limits The local regulator may restrict frequency usage and channel width and may limit the amount of conducted or radiated transmitter power. Many countries impose EIRP limits (allowed EIRP) on products operating in the bands used by the ePMP Series. For example, in the 5 GHz band in Europe, these limits are calculated as follows: In the 5.8 GHz band (5725 MHz to 5875 MHz), the EIRP must not exceed the lesser of 36 dBm or (23 + 10 x Log Channel width in MHz) dBm. -
Page 37: Electromagnetic Compatibility (Emc) Compliance
Electromagnetic Compatibility (EMC) compliance ePMP complies with European EMC Specification EN301 489-1 with testing carried out to the detailed requirements of EN 301 489-17. The EMC specification type approvals that is granted for ePMP are listed under Table Table 23: EMC emissions compliance Region Specification (Type Approvals) FCC CFR 47 Part 15 class B... -
Page 38: Glossary
Glossary Term Definition Advanced Encryption Standard ANSI American National Standards Institute CINR Carrier to Interference plus Noise Ratio Cluster Management Module Dynamic Frequency Selection EIRP Equivalent Isotropically Radiated Power Electromagnetic Compatibility Electromagnetic Discharge Ethernet ETSI European Telecommunications Standards Institute Federal Communications Commission Forward Error Correction Graphical User Interface HTTP... - Page 39 Term Definition Point to Multipoint Point to Point Quadrature Amplitude Modulation QPSK Quadrature Phase Shift Keyed Radio Frequency Return Merchandise Authorization RSSI Received Signal Strength Indication RTTT Road Transport and Traffic Telematics Receive Standard Absorption Rate SNMP Simple Network Management Protocol Software Time Division Duplex TDWR...
-
Page 40: Cambium Networks
Devon, TQ13 7UP United Kingdom www.cambiumnetworks.com Cambium Networks and the stylized circular logo are trademarks of Cambium Networks, Ltd. All other trademarks are the property of their respective owners. © Copyright 2024 Cambium Networks, Ltd. All rights reserved. Cambium Networks...
