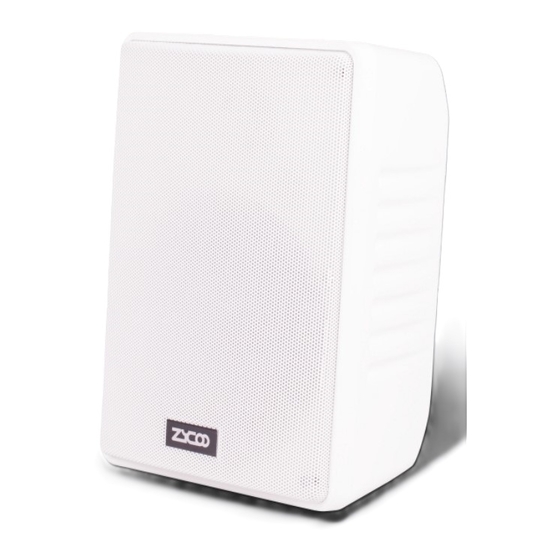

Network cabinet speaker
Hide thumbs Also See for SW15:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SW15 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zycoo SW15

Summary of Contents for Zycoo SW15

  • Page 2: Table Of Contents

    Contents 1. Preface .........................10 1.1 Audience ......................10 1.2 Revision History ....................10 2. Overview ......................11 2.1 Product Overview ....................11 2.2 Product Specifications ..................11 3. Login the Device ....................12 3.1 Accessing the Web GUI .................. 12 3.2 Device Info ...................... 13 4.
  • Page 3 8. Maintenance ......................41 8.1 Diagnostic ....................... 41 8.2 Ethernet Capture .....................41 8.3 Import/Export ....................42 8.4 Auto Provisioning .................... 42 8.5 Test ......................... 43 9. Reports ........................ 45 9.1 Call Logs ......................45 9.2 Operation Logs ....................45...

  • Page 4: Preface

    This manual is intended to provide clear operating instructions for those who will configure and manage the SW15 Network Cabinet Speaker. By carefully reading and consulting this guide, users could solve the setting and deployment issues of the SW15 Network Cabinet Speaker.

  • Page 5: Overview

    2. Overview 2.1 Product Overview SW15 Network Cabinet Speaker is a high-performance SIP enabled cabinet speaker which can be used for SIP paging, notification/tone broadcasting and streamed high definition music playback. The high efficient, full-range drive units will provide you with a uniquely advanced listening experience.

  • Page 6: Login The Device

    3. Login the Device 3.1 Accessing the Web GUI SW15 obtains the IP address through DHCP by default, please ensure that there is an available DHCP server in your LAN (If DHCP fails to obtain an address, it will use a static IP address: 192.168.1.101), or press and hold the reset button for 5 seconds and then release...

  • Page 7: Device Info

    SIP Status SIP Account:  Display the SIP number configured on this device.  SIP Server: Display the SIP server (Such as ZYCOO IP Audio Center or IP PBX) address.  Register Status: Display the SIP number registration status.
  • Page 8 SW15 Network Cabinet Speaker User Guide Device Information Device Model:  Displays the model of the device. Hardware Version:  Displays the hardware version number of the device. Software Version:  Display the system version number of the device. Start Time: ...
  • Page 9 SW15 Network Cabinet Speaker User Guide Primary DNS:  The primary domain name server address used by the device. Alternative DNS:  The secondary domain name server address used by the device.

  • Page 10: Sip Settings

    There are three (3) SIP accounts under the SIP Settings, one (1) primary and two (2) secondary for the use of different SIP accounts to proceed with various tasks. If the current device needs to cooperate with the ZYCOO IP Audio Center, please turn on the ‘Enable Integration with ZYCOO IP Audio Center’ option.
  • Page 11 SW15 Network Cabinet Speaker User Guide Secondary SIP 1 Account Secondary SIP 2 Account SIP Server:  Enter the IP address or domain name of the SIP server.

  • Page 12: P2P Account Settings

    STUN, TURN, and ICE modes are supported.  Enable Integration with ZYCOO IP Audio Center: This option is disabled by default. If you need to connect and use it with ZYCOO IP Audio Center, please enable this option. Only the main SIP account has this option.

  • Page 13: Advance Sip Settings

    SW15 Network Cabinet Speaker User Guide P2P Account  User Authentication: Enable/Disable the P2P authentication. User ID:  The User ID will be displayed as the outgoing number when calling out, or the number that another device needs to dial.
  • Page 14 SW15 Network Cabinet Speaker User Guide SIP Parameter Settings  Local Port: This setting represents the port used to receive SIP packets.  RTP Start Port: This setting represents the starting RTP port that will use for media sessions.  RTP End Port: This setting represents the end RTP port that the system will use for media sessions.

  • Page 15: Sip Function Settings

    SW15 Network Cabinet Speaker User Guide  Adaptive Noise Reduction: After enabling this feature, algorithms can suppress environmental noise collected by microphones.  Automatic Generation Control: After enabling this feature, the voice signal can be automatically enhanced according to the distance and size of the voice source. After optimization through the AGC, the effective pickup distance of our equipment can reach a maximum of more than 10 meters.

  • Page 16: Audio Codecs

     Beep Volume: Set the volume of the beep. 4.3.3 Audio Codecs SW15 supports 4 audio codecs: G.722 (wideband codec), G.711(Ulaw), G.711(Alaw), and Opus. To enable or disable an audio codec/codecs, please go to SIP Settings --> Audio Codecs page.
  • Page 17 SW15 Network Cabinet Speaker User Guide Please keep at least one codec enabled and supported by the SIP server, otherwise, SIP paging will not work.

  • Page 18: Function Settings

    If the user has installed a VMS that supports ONVIF, they can register ZYCOO network devices that support ONVIF on it for operation. Please go to Advanced Settings ---> ONVIF Settings to configure the ONVIF settings. For detailed multi-platform configuration guide, please refer to the ONVIF Feature Guide document on the ZYCOO official website.
  • Page 19 SW15 Network Cabinet Speaker User Guide Multicast  Priority: Priority from highest 9 to lowest 1.  Multicast Address: The multicast address range is 224.0.0.0 – 239.255.255.255.  Multicast Port: The multicast port range is 2000 – 65535.  Name: Customize the name of the multicast address.

  • Page 20: Advanced Settings

    SW15 Network Cabinet Speaker User Guide 6. Advanced Settings 6.1 Volume Settings To set the volume of the SW15, please go to Advanced Settings --> Volume page to configure. You can adjust the main volume as well as individual volume adjustments for each application.
  • Page 21 SW15 Network Cabinet Speaker User Guide App Volume Settings  SIP Volume: Set the specific volume for SIP application.  ONVIF Volume: Set the specific volume for ONVIF application.  Broadcast Volume: Set the specific volume for broadcast application.  Multicast Volume 1: Set the specific volume for multicast 1 application.

  • Page 22: Audio Priority Settings

    SW15 Network Cabinet Speaker User Guide  Multicast Volume 9: Set the specific volume for multicast 9 application. 6.2 Audio Priority Settings The audio priority can be set according to different applications(SIP, ONVIF, MULTICAST, BROADCAST). Priority 1 is the highest. You can drag the arrow on the right side to adjust the priority.

  • Page 23: Api Settings

    SW15 Network Cabinet Speaker User Guide Audio Files 6.4 API Settings This page is used to configure the API interface of the device. Through the API interface, you can realize device linkage, call control, relay control, and play sound by using the changing status of the call and/or relay.
  • Page 24 SW15 Network Cabinet Speaker User Guide Call Event URL Callback & Relay Event URL Callback When the call status changes, it will trigger an HTTP GET request to call a URL address. Within the URL address, you may use variables to identify some current information.

  • Page 25: I/O Settings

    SW15 Network Cabinet Speaker User Guide API Settings Using the API interface to realize features such as device linkage, call control, relay control, and play sound by the systems. Note: Authentication and encryption are not used in the API interface, so please pay attention to the security of the network environment when opening and using these API interfaces.
  • Page 26 SW15 Network Cabinet Speaker User Guide Key Settings Key Action: Choose different event linkage including Outgoing Call, HTTP  Request and Play Audio. Destination: This setting represents the response device’s number when the  external button is pressed. Line: This setting represents the corresponding line for making ...
  • Page 27 SW15 Network Cabinet Speaker User Guide Repeat: Configure the times of audio repetitions triggered by linkage.  Output Trigger Event Settings  Broadcast Music Trigger: Disabled/On/Fast Flashing/Slow Flashing, enable this option will trigger the relay when there is broadcast music on.

  • Page 28: Ptp Settings

    SW15 Network Cabinet Speaker User Guide Output Trigger Action Settings Trigger Type:  This setting represents the responses by the triggers, there are ‘On’, ‘Fast Flashing’, and ‘Slow Flashing’ options to choose from.  Mode: This setting represents the reset mode after the trigger is responded, there are ‘Delay Reset’...
  • Page 29 SW15 Network Cabinet Speaker User Guide PTP Setting...

  • Page 30: System Settings

    7. System Settings 7.1 Network SW15 uses DHCP to dynamically obtain IP addresses by default. To change the IP assignment from DHCP to Static IP, please go to System--> Network page. Turn the DHCP switch button off to show the network parameter settings.

  • Page 31: Time

    Enter an alternative DNS server address, when the primary DNS fails, alternative DNS will be used. 7.2 Time SW15 obtains the time from the network time servers using NTP. To change the NTP settings, please go to System --> Time page. Time Settings ...

  • Page 32: Upgrade

    SW15 Network Cabinet Speaker User Guide Web Password Settings  Old Password: This setting represents the current user password.  New Password: This setting represents the new password user would like to set 7.4 Upgrade To upgrade the device’s firmware, please go to System --> Upgrade page.

  • Page 33: Reboot & Reset

    10 seconds. After the restart is complete, refresh the page to log in again. If you need to restore the factory settings of the SW15, you can reset it through this page or you can press and hold the RST button for more than 10 seconds and release it. After hearing the broadcast voice, the device will enter the state of restoration.
  • Page 34 SW15 Network Cabinet Speaker User Guide Reboot Schedule When the Reboot Schedule feature is Enabled, you can set up the automatic reboot daily, weekly, or monthly at a specified time.

  • Page 35: Maintenance

    SW15 Network Cabinet Speaker User Guide 8. Maintenance 8.1 Diagnostic Ping is a network administration utility or tool used to test connectivity on an IP network. Input other devices' IP addresses and click on the submit button to trace the network route.

  • Page 36: Import/Export

    SW15 Network Cabinet Speaker User Guide 8.3 Import/Export This page is used to import and export the current configuration of the device, and you may use this configuration file to backup and/or recover. Both YAML and JSON formats are supported.

  • Page 37: Test

    SW15 Network Cabinet Speaker User Guide Auto Provisioning 8.5 Test The detection feature provides an option for the user to check whether the speaker, microphone and relay will work functionally before registering it to the server. Please go to Maintenance --> Test page to test whether the component is working properly.
  • Page 38 SW15 Network Cabinet Speaker User Guide Test Settings Speaker Test:  Click on the Start Test button, and the speaker will play a ringtone to test whether the speaker is working. If the speaker is working functionally, you should hear the voice back.

  • Page 39: Reports

    SW15 Network Cabinet Speaker User Guide 9.Reports 9.1 Call Logs Call Logs allows you to check the call related information such as Call Date, Time, Account, Telephone Number, Call Duration, Call Type and Status. Please go to Reports --> Call Logs page to view the logs.
