This manual is intended to provide clear operating instructions for those who will configure and manage the SQ10 Series Network Square Speaker. By carefully reading and consulting this guide, users could solve the setting and deployment issues of the SQ10 Series Network Square Speaker.

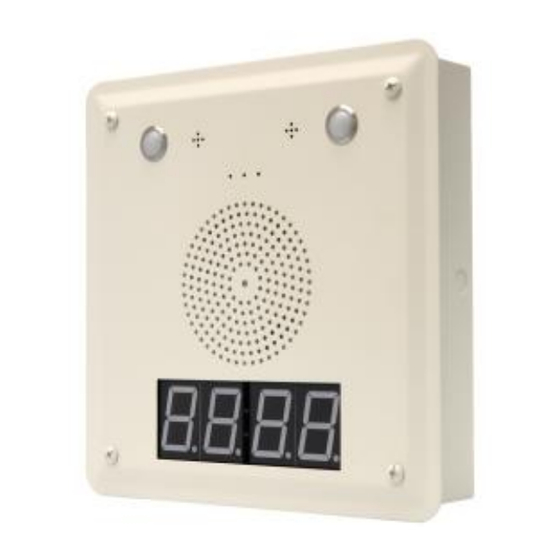

SQ10 Series Network Square Speaker User Guide 2. Overview 2.1 Product Overview SQ10 Network Square Speaker has SQ10-B and SQ10-T two models. Two LED flashers are located on the SQ10-T’s top surface and can be used to alert room occupants of an incoming audio message or emergency notices.
SQ10 Series Network Square Speaker User Guide 3. Login the Device 3.1 Accessing the Web GUI SQ10 obtains the IP address through DHCP by default, please ensure that there is an available DHCP server in your LAN (If DHCP fails to obtain an address, it will use a static IP address: 192.168.1.101), or press and hold the reset button for 3 seconds and then release...
SIP Status SIP Account: Display the SIP number configured on this device. SIP Server: Display the SIP server (Such as ZYCOO IP Audio Center or IP PBX) address. Register Status: Display the SIP number registration status. Device Information ...
Page 8
SQ10 Series Network Square Speaker User Guide Hardware Version: Displays the hardware version number of the device. Software Version: Display the system version number of the device. Start Time: Displays the last time the device was started up.
There are three (3) SIP accounts under the SIP Settings, one (1) primary and two (2) secondary for the use of different SIP accounts to proceed with various tasks. If the current device needs to cooperate with the ZYCOO IP Audio Center, please turn on the ‘Enable Integration with ZYCOO IP Audio Center’ option.
Page 10
SQ10 Series Network Square Speaker User Guide Secondary SIP 1 Account Secondary SIP 2 Account SIP Server: Enter the IP address or domain name of the SIP server.
STUN, TURN, and ICE modes are supported. Enable Integration with ZYCOO IP Audio Center: This option is disabled by default. If you need to connect and use it with ZYCOO IP Audio Center, please enable this option. Only the main SIP account has this option.
Page 12
SQ10 Series Network Square Speaker User Guide P2P Account User ID: The User ID will be displayed as the outgoing number when calling out, or the number that another device needs to dial. Auto Answer: Yes/No/Answer Delay, default in the Yes option.
SQ10 Series Network Square Speaker User Guide 4.3 Audio Codecs SQ10 supports 4 audio codecs: G.722 (wideband codec), G.711(Ulaw), G.711(Alaw), and Opus. To enable or disable an audio codec/codecs, please go to SIP Settings --> Audio Codecs page. Audio Codecs Please keep at least one codec enabled and supported by the SIP server, otherwise, SIP paging will not work.
Page 14
SQ10 Series Network Square Speaker User Guide Advance SIP Settings Local Port: This setting represents the port used to receive SIP packets. RTP Start Port: This setting represents the starting RTP port that will use for media sessions.
SQ10 Series Network Square Speaker User Guide 5. Advanced Settings 5.1 Volume Settings To set the volume of the SQ10, please go to Advanced Settings --> Volume page to configure. Volume Settings Speaker Volume: The default speaker volume is 7, adjustable range is 0 ~ 9.
SQ10 Series Network Square Speaker User Guide AGC Max Volume: This setting represents the maximum value of the automatic gain control. Key Beep: Enable/Disable the beep sound from the key button. Music Auto Resumes: When the device restarts or reconnects to the network, the previous music tasks will be automatically restored.
Page 17
SQ10 Series Network Square Speaker User Guide Event Linkage Event Action: Choose different event linkage including Outgoing Call, HTTP Request and Play Audio. Destination: This setting represents the response device’s number when the external button is pressed. Line: This setting represents the corresponding line for making ...
Page 18
SQ10 Series Network Square Speaker User Guide Relay Control Broadcast music trigger: Disabled/On/Fast Flashing/Slow Flashing, enable this option will trigger the relay when there is broadcast music on. Broadcast alarm trigger: Disabled/On/Fast Flashing/Slow Flashing, enable this option will trigger the relay when there is a broadcast alarm on.
Page 19
SQ10 Series Network Square Speaker User Guide Relay Reset: This setting represents the reset mode after the trigger is responded, there are ‘Delay Reset’ and ‘Hang-up Reset’ options to choose from. Duration (sec): This setting is only available if the reply control mode is on ...
SQ10 Series Network Square Speaker User Guide Trigger by DTMF Signal: Enable/Disable, enable this option when need to use DTMF signal to trigger (only RF2833 supported). DTMF: This setting represents the number to dial to trigger DTMF. ...
Page 21
SQ10 Series Network Square Speaker User Guide Call Event URL Callback & Relay Event URL Callback When the call status changes, it will trigger an HTTP GET request to call a URL address. Within the URL address, you may use variables to identify some current information.
SQ10 Series Network Square Speaker User Guide API Settings Using the API interface to realize features such as device linkage, call control, relay control, and play sound by the systems. Note: Authentication and encryption are not used in the API interface, so please pay attention to the security of the network environment when opening and using these API interfaces.
Page 23
SQ10 Series Network Square Speaker User Guide Multicast Priority: Priority from highest 9 to lowest 1. Multicast Address: The multicast address range is 224.0.0.0 – 239.255.255.255. Multicast Port: The multicast port range is 2000 – 65535. ...
SQ10 Series Network Square Speaker User Guide 5.5 Prompt Language The language of local voice prompts, like IP address announcements. Currently, only Chinese and English are provided. Please go to Advanced Settings ---> Prompt Language page to set a voice prompt language.
If the user has installed a VMS that supports ONVIF, they can register ZYCOO network devices that support ONVIF on it for operation. Please go to Advanced Settings ---> ONVIF Settings to configure the ONVIF settings. For detailed multi-platform configuration guide, please refer to the ONVIF Feature Guide document on the ZYCOO official website.
SQ10 Series Network Square Speaker User Guide 6. System Settings 6.1 Network SQ10 uses DHCP to dynamically obtain IP addresses by default. To change the IP assignment from DHCP to Static IP, please go to System--> Network page. Turn the DHCP switch button off to show the network parameter settings.
SQ10 Series Network Square Speaker User Guide Alternative DNS: Enter an alternative DNS server address, when the primary DNS fails, alternative DNS will be used. 6.2 Time SQ10 obtains the time from the network time servers using NTP. To change the NTP settings, please go to System --> Time page.
SQ10 Series Network Square Speaker User Guide Web Password Settings Old Password: This setting represents the current user password. New Password: This setting represents the new password user would like to set 6.4 Upgrade To upgrade the device’s firmware, please go to System --> Upgrade page.
SQ10 Series Network Square Speaker User Guide Firmware: Click to select the firmware that needs to be used to upgrade the current device. 6.5 Reboot & Reset SQ10 can be rebooted and reset from the web management interface. If you need to reboot or reset the device, please go to System --> Reboot & Reset page.
Page 30
SQ10 Series Network Square Speaker User Guide When the Reboot Schedule feature is Enabled, you can set up the automatic reboot daily, weekly, or monthly at a specified time.
SQ10 Series Network Square Speaker User Guide 7. Maintenance 7.1 Diagnostic Ping is a network administration utility or tool used to test connectivity on an IP network. Input other devices' IP addresses and click on the submit button to trace the network route.
SQ10 Series Network Square Speaker User Guide 7.3 Import/Export This page is used to import and export the current configuration of the device, and you may use this configuration file to backup and/or recover. Both YAML and JSON formats are supported.
Page 33
SQ10 Series Network Square Speaker User Guide Auto Provisioning 7.5 Test The detection feature provides an option for the user to check whether the speaker, microphone and relay will work functionally before registering it to the server. Please go to Maintenance --> Test page to test whether the component is working properly.
Page 34
SQ10 Series Network Square Speaker User Guide Test Settings Speaker Test: Click on the Start Test button, and the speaker will play a ringtone to test whether the speaker is working. If the speaker is working functionally, you should hear the voice back.
