  • Page 2: Table Of Contents

    Contents Overview Product Overview ..................... 1 Product Specifications ....................1 Basic Settings Web Interface Login ....................3 Device Info ....................... 4 SIP Account ......................5 P2P Account ......................7 Audio Codecs ......................8 SIP Advance Settings ....................8 Advanced Settings Volume Control ......................

  • Page 3: Overview Product Overview

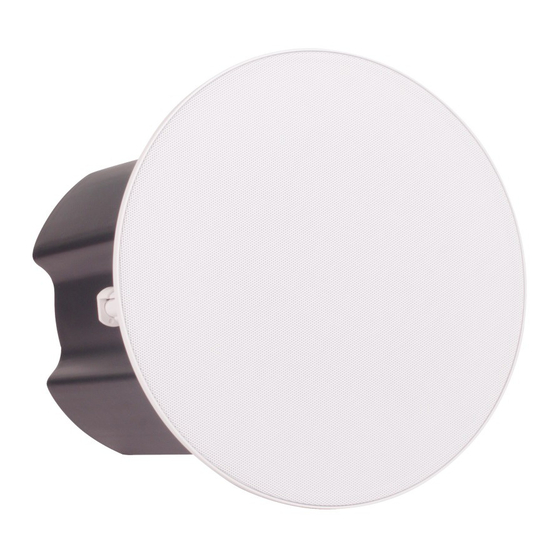

    ZYCOO network speakers are SIP enabled high-performance speaker products which can be used for SIP paging, notification/tone broadcast and streaming media music playback. The SC15 network ceiling speaker and SW15 network cabinet speaker are equipped with dual speaker drive units, the high-efficient, full-range speaker drive units can provide uniquely advanced listening experience, which makes the SC15 and SW15 suitable for high quality music, notification/tone broadcasting in the indoor environment.
  • Page 4 Sensitivity 85dB/1m/1W Max Sound Pressure Level 105dB Amplifier Built-in Class D Amplifier 8Ω 50W Rated Power: Frequency Range: 100Hz~20KHz Coverage Pattern: 135° 50m, max effective distance 70m Acoustics: Mono IP Rating IP65 Network Speaker User Guide | ZYCOO Co., Ltd.

  • Page 5: Basic Settings Web Interface Login

    IP address. Input the IP address in the browser address bar to open the web management interface of the speaker. The login screen is shown as below image, here we take SC15 network ceiling speaker as an example. Use the default login credentials to login to the web management interface.

  • Page 6: Device Info

    After login, you’ll first see the Device Info screen. SIP STATUS • SIP Account: The SIP number configured on this device. • SIP Server: The SIP server (ZYCOO IP Audio Center or other IP PBX) address. • Register Status: The SIP number registration status. DEVICE INFORMATION •...

  • Page 7: Sip Account

    There are three (3) SIP accounts under the SIP Settings, one (1) primary and two (2) secondary for the use of different SIP accounts to proceed various tasks. If the current device needs to cooperate with the ZYCOO IP Audio Center, please turn on the ‘ZYCOO IP Audio Center’ option.
  • Page 8 Secondary SIP 1 Account Secondary SIP 2 Account Network Speaker User Guide | ZYCOO Co., Ltd.

  • Page 9: P2P Account

    • User ID: The User ID will be displayed as the outgoing number when call out, or the number that other device need to dial. • Activate: Enable/Disable the P2P feature Network Speaker User Guide | ZYCOO Co., Ltd.

  • Page 10: Audio Codecs

    Please keep at least one codec enabled and is supported by the SIP server, otherwise SIP paging will not work. SIP Advance Settings Configuration on some more advance SIP protocol settings include the Loud Ringers feature. Please go to SIP Settings -> Advance SIP Settings Network Speaker User Guide | ZYCOO Co., Ltd.
  • Page 11 In this way, when the master phone is ringing, the speaker can play the prompt ringtone at the same time (also, it can achieve linkage with light when cooperating with the configuration of output interface). Network Speaker User Guide | ZYCOO Co., Ltd.

  • Page 12: Advanced Settings

    ⚫ Speaker Volume: The default speaker volume is 7, adjustable range is 0 ~ 9. ( The below setting parameters are only available for version 1.1 or above of SC15 & SW15. ) ⚫ MIC AGC: When this setting is enabled, the system will automatically adjust the microphone volume according to the environment.

  • Page 13: I/O Settings

    I/O Settings I/O settings (available for SC15 and SW15) are used to configure the dry contact relay control options. Please go to the Settings -> I/O Settings page. Press-to-Talk ( This setting is only available for version 1.1 or above of SC15 & SW15. ) •...

  • Page 14: Multicast Settings

    Intercom. It can configure to monitor up to 9 different levels of multicast addresses, the audio streams with a higher priority will interrupt the playback of the lower priority audio streams. Please go to Advance Settings -> Multicast Settings. Network Speaker User Guide | ZYCOO Co., Ltd.

  • Page 15: Language Settings

    Options to choose from are ‘Disabled’, ‘On’, ‘Fast Flashing’, ‘Slow Flashing’ Language Settings The language of local voice prompts, like IP address announcements, can be set on Settings -> Language Settings page. Currently, only Chinese and English are provided. Network Speaker User Guide | ZYCOO Co., Ltd.

  • Page 16: Settings Network Setting

    Settings Network Setting The ZYCOO network speakers use DHCP to dynamically obtain IP addresses by default. To change the IP assignment from DHCP to Static IP, please go to Settings -> Network Settings page. Turn the DHCP switch button off to show the network parameter settings.

  • Page 17: Account

    For resetting the current device’s password, please go to Settings -> Account • Old Password: This setting represents the current using password • New Password: This setting represents the new password user would like to set up. Network Speaker User Guide | ZYCOO Co., Ltd.

  • Page 18: Upgrade

    You’ll first see the current firmware version of the network speaker and the last upgrade time. Upload the .img file provided by ZYCOO to perform the upgrade action. If you wish to reset the network speaker to factory defaults after upgrading, please enable the “Reset Factory Defaults” parameter.

  • Page 19: Maintenance Diagnostic

    Ethernet Capture The purpose of the Ethernet capture tool is to capture ethernet network packets and store then in a standard Wireshard compatible packet capture “.pacp” file for immediate viewing and data analyzing. Network Speaker User Guide | ZYCOO Co., Ltd.
  • Page 20 @ 2020 Zycoo Co., Ltd. All rights reserved. www.zycoo.com ZYCOO, NEEQ Code 839487, is the leading developer and manufacturer of IP telephony devices and related systems, devoting itself over the past years to R&D powerful and scalable voice over IP (VoIP) solutions that...
