  • Page 2: Table Of Contents

    Contents 1. Preface ........................1 1.1 Audience ......................1 1.2 Revision History ....................1 2. Overview ........................2 2.1 Product Overview ....................2 2.2 Product Specifications ..................2 3. Login the Device ....................3 3.1 Accessing the Web GUI ..................3 3.2 Device Info ......................4 4.
  • Page 3 7.4 Auto Provisioning .................... 28 7.5 Test ......................... 29...

  • Page 4: Preface

    This manual is intended to provide clear operating instructions for those who will configure and manage the SL30 Network Column Speaker. By carefully reading and consulting this guide, users could solve the setting and deployment issues of the SL30 Network Column Speaker.

  • Page 5: Overview

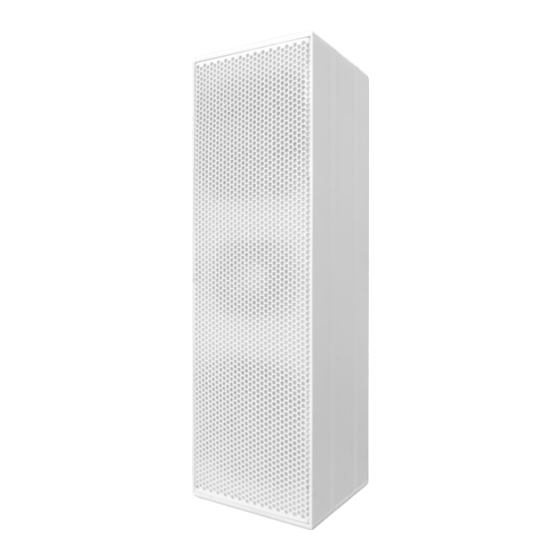

    SL30 Network Column Speaker User Guide 2. Overview 2.1 Product Overview SL30 Network Column Speaker is a high-performance SIP-enabled column speaker for SIP paging, notification broadcasting, and streamed high-definition music playback. SL30 has high sensitivity and capacity, providing clear and rich saturation, whether SIP-based propaganda broadcasting or background music playing.

  • Page 6: Login The Device

    3.1 Accessing the Web GUI SL30 obtains the IP address through DHCP by default, please ensure that there is an available DHCP server in your LAN (If DHCP fails to obtain an address, it will use a static IP address: 192.168.1.101), or press and hold the reset button for 5 seconds and then release it to listen to...

  • Page 7: Device Info

    SIP Status  SIP Account: Display the SIP number configured on this device.  SIP Server: Display the SIP server (Such as ZYCOO IP Audio Center or IP PBX) address.  Register Status: Display the SIP number registration status.
  • Page 8 SL30 Network Column Speaker User Guide Device Information Device Model:  Displays the model of the device. Hardware Version:  Displays the hardware version number of the device.  Software Version: Display the system version number of the device. ...

  • Page 9: Sip Settings

    There are three (3) SIP accounts under the SIP Settings, one (1) primary and two (2) secondary for the use of different SIP accounts to proceed with various tasks. If the current device needs to cooperate with the ZYCOO IP Audio Center, please turn on the ‘Enable Integration with ZYCOO IP Audio Center’ option.
  • Page 10 SL30 Network Column Speaker User Guide Secondary SIP 1 Account Secondary SIP 2 Account  SIP Server: Enter the IP address or domain name of the SIP server.

  • Page 11: P2P Account Settings

    STUN, TURN, and ICE modes are supported.  Enable Integration with ZYCOO IP Audio Center: This option is disabled by default. If you need to connect and use it with ZYCOO IP Audio Center, please enable this option. Only the main SIP account has this option.
  • Page 12 SL30 Network Column Speaker User Guide P2P Account  User ID: The User ID will be displayed as the outgoing number when calling out, or the number that another device needs to dial.  Auto Answer: Yes/No/Answer Delay, default in the Yes option.

  • Page 13: Audio Codecs

    SL30 Network Column Speaker User Guide 4.3 Audio Codecs SL30 supports 4 audio codecs: G.722 (wideband codec), G.711(Ulaw), G.711(Alaw), and Opus. To enable or disable an audio codec/codecs, please go to SIP Settings --> Audio Codecs page. Audio Codecs Please keep at least one codec enabled and supported by the SIP server, otherwise, SIP paging will not work.
  • Page 14 SL30 Network Column Speaker User Guide Advance SIP Settings  Local Port: This setting represents the port used to receive SIP packets.  RTP Start Port: This setting represents the starting RTP port that will use for media sessions.  RTP End Port: This setting represents the end RTP port that the system will use for media sessions.

  • Page 15: Basic Settings

    SL30 Network Column Speaker User Guide 5. Advanced Settings 5.1 Volume Settings To set the volume of the SL30, please go to Advanced Settings --> Volume page to configure. Volume Settings Speaker Volume:  The default speaker volume is 7, adjustable range is 0 ~ 9.

  • Page 16: I/O Settings

     If SL30 is connected with the audio in devices such as the MP3 player, and you can play the audio through SL30’s speaker by enabling this option. 5.2 I/O Settings This page is used to configure configuration parameters related to security linkage, such as: trigger settings, relay settings and other related configurations.
  • Page 17 SL30 Network Column Speaker User Guide Event Linkage Event Linkage Action: Choose different event linkage including Outgoing Call, HTTP  Request and Play Audio. Destination: This setting represents the response device’s number when the  external button is pressed. Line: This setting represents the corresponding line for making ...
  • Page 18 SL30 Network Column Speaker User Guide Trigger Settings Broadcast music trigger: Disabled/On/Fast Flashing/Slow Flashing, enable this option  will trigger the relay when there is broadcast music on.  Broadcast alarm trigger: Disabled/On/Fast Flashing/Slow Flashing, enable this option will trigger the relay when there is a broadcast alarm on.

  • Page 19: Api Settings

    SL30 Network Column Speaker User Guide Relay Control  Trigger Type: This setting represents the responses by the triggers, there are ‘On’, ‘Fast Flashing’, and ‘Slow Flashing’ options to choose from. Mode:  This setting represents the reset mode after the trigger is responded, there are ‘Delay Reset’...
  • Page 20 SL30 Network Column Speaker User Guide Call Event URL Callback & Relay Event URL Callback When the call status changes, it will trigger an HTTP GET request to call a URL address. Within the URL address, you may use variables to identify some current information.

  • Page 21: Multicast

    SL30 Network Column Speaker User Guide API Settings Using the API interface to realize features such as device linkage, call control, relay control, and play sound by the systems. Note: Authentication and encryption are not used in the API interface, so please pay attention to the security of the network environment when opening and using these API interfaces.
  • Page 22 SL30 Network Column Speaker User Guide Multicast  Priority: Priority from highest 9 to lowest 1.  Multicast Address: The multicast address range is 224.0.0.0 – 239.255.255.255.  Multicast Port: The multicast port range is 2000 – 65535.  Name: Customize the name of the multicast address.

  • Page 23: Prompt Language

    SL30 Network Column Speaker User Guide 5.5 Prompt Language The language of local voice prompts, like IP address announcements. Currently, only Chinese and English are provided. Please go to Advanced Settings ---> Prompt Language page to set a voice prompt language.

  • Page 24: Onvif Settings

    If the user has installed a VMS that supports ONVIF, they can register ZYCOO network devices that support ONVIF on it for operation. Please go to Advanced Settings ---> ONVIF Settings to configure the ONVIF settings. For detailed multi-platform configuration guide, please refer to the ONVIF Feature Guide document on the ZYCOO official website.

  • Page 25: System Settings

    6. System Settings 6.1 Network SL30 uses DHCP to dynamically obtain IP addresses by default. To change the IP assignment from DHCP to Static IP, please go to System--> Network page. Turn the DHCP switch button off to show the network parameter settings.

  • Page 26: Time

    Enter an alternative DNS server address, when the primary DNS fails, alternative DNS will be used. 6.2 Time SL30 obtains the time from the network time servers using NTP. To change the NTP settings, please go to System --> Time page. Time Settings ...

  • Page 27: Upgrade

    SL30 Network Column Speaker User Guide Web Password Settings  Old Password: This setting represents the current user password.  New Password: This setting represents the new password user would like to set 6.4 Upgrade To upgrade the device’s firmware, please go to System --> Upgrade page.

  • Page 28: Reboot & Reset

    10 seconds. After the restart is complete, refresh the page to log in again. If you need to restore the factory settings of the SL30, you can reset it through this page or you can press and hold the RST button for more than 10 seconds and release it. After hearing the broadcast voice, the device will enter the state of restoration.
  • Page 29 SL30 Network Column Speaker User Guide When the Reboot Schedule feature is Enabled, you can set up the automatic reboot daily, weekly, or monthly at a specified time.

  • Page 30: Maintenance

    SL30 Network Column Speaker User Guide 7. Maintenance 7.1 Diagnostic Ping is a network administration utility or tool used to test connectivity on an IP network. Input other devices' IP addresses and click on the submit button to trace the network route.

  • Page 31: Import/Export

    SL30 Network Column Speaker User Guide 7.3 Import/Export This page is used to import and export the current configuration of the device, and you may use this configuration file to backup and/or recover. Both YAML and JSON formats are supported.
  • Page 32 SL30 Network Column Speaker User Guide Auto Provisioning 7.5 Test The detection feature provides an option for the user to check whether the speaker, microphone and relay will work functionally before registering it to the server. Please go to Maintenance --> Test page to test whether the component is working properly.
  • Page 33 SL30 Network Column Speaker User Guide Test Settings  Speaker Test: Click on the Start Test button, and the speaker will play a ringtone to test whether the speaker is working. If the speaker is working functionally, you should hear the voice back.
