    Contents Overview ......................1 Product Overview .................... 1 Product Specifications ..................1 Basic Settings ..................... 3 Web Interface Login ..................3 Device Info ...................... 4 SIP Account ..................... 6 P2P Account ....................8 Audio Codecs ....................9 Advance SIP Settings ..................9 Advanced Settings ....................
  • Page 3 Diagnostic ..................... 19 Ethernet Capture ................... 20 Import/Export ....................20 Auto Provisioning ..................21 Test ....................... 22...
  • Page 4: Overview

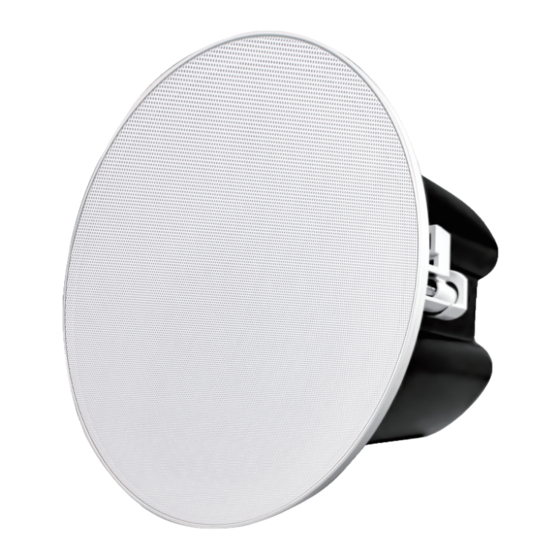

    ZYCOO network speakers are SIP enabled high-performance speaker products that can be used for SIP paging, notification/tone broadcast and streaming media music playback. The SC10, SC15 network ceiling speaker and SW15 network cabinet speaker are equipped with dual speaker drive units, the high-efficient, full-range speaker drive units can provide a uniquely advanced listening experience, which makes the SC10, SC15 and SW15 suitable for high-quality music, notification/tone broadcasting in the indoor environment.
  • Page 5 Amplifier Built-in Class D Amplifier Rated Power 8Ω 15W Frequency Range 70Hz~20KHz Coverage Pattern 90°H 90°V 30 m² Acoustics Mono SW15 Specifications 5.25" woofer unit + 1.5" tweeter Speaker Components: unit Sensitivity: 85dB/1m/1W Max Sound Pressure 100dB Level Amplifier Built-in Class D Amplifier Rated Power 8Ω...
  • Page 6: Basic Settings

    SL30 Specifications 2 * 3.25'' woofer units + 1 * 1'' Speaker Components tweeter unit Sensitivity 82dB/1m/1W Max Sound Pressure 97dB Level Amplifier Built-in Class D Amplifier Rated Power: 4Ω 30W Frequency Range: 100Hz~20KHz Coverage Pattern: 135°, best effective distance 50m Acoustics: Mono SL50 Specifications...
  • Page 7: Device Info

    Use the default login credentials to login to the web management interface. Default username: admin Default password: admin For the safety of the network speakers, it is recommended to change the default password on the first login, please go to Settings -> Change Password page to change the password. Device Info After login, you’ll first see the Device Info screen.
  • Page 8 SIP Status • SIP Account: The SIP number configured on this device. • SIP Server: The SIP server (ZYCOO IP Audio Center or other IP PBX) address. • Register Status: The SIP number registration status. Device Information • Device Model: The speaker model, SC10, SC15, SW15, etc.
  • Page 9: Sip Account

    There are three (3) SIP accounts under the SIP Settings, one (1) primary and two (2) secondary for the use of different SIP accounts to proceed with various tasks. If the current device needs to cooperate with the ZYCOO IP Audio Center, please turn on the ‘ZYCOO IP Audio Center’ option.
  • Page 10 Secondary SIP 1 Account: Secondary SIP 2 Account:...
  • Page 11: P2P Account

    • SIP Server: Enter the IP address or domain name of the SIP server. • SIP Port: Default SIP port is 5060. If the SIP server uses another port number as the SIP port, please modify this setting. • User ID: The SIP account number provided by SIP server.
  • Page 12: Audio Codecs

    Audio Codecs The network speakers support 4 audio codecs: G.722 (wideband codec), G.711(Ulaw), G.711(Alaw), and Opus. To enable or disable an audio codec/codecs, please go to SIP Settings -> Audio Codecs page. Please keep at least one codec enabled and is supported by the SIP server, otherwise, SIP paging will not work.
  • Page 13: Advanced Settings

    • Speaker Volume: The default speaker volume is 7, adjustable range is 0 ~ 9. Note: The below setting parameters are only available for hardware version 1.1 or above of SC10 & SC15 & SW15. • MIC AGC: When this setting is enabled, the system will automatically adjust the microphone volume according to the environment.
  • Page 14: I/O Settings

    I/O Settings I/O settings (available for SC10, SC15, SW15 & SL30) are used to configure the dry contact relay control options. Please go to the Settings -> I/O Settings page.
  • Page 15 Trigger Settings • Broadcast music trigger: Disabled/On/Fast Flashing/Slow Flashing, enable this option will trigger the relay when there is broadcast music on. • Broadcast alarm trigger: Disabled/On/Fast Flashing/Slow Flashing, enable this option will trigger the relay when there is a broadcast alarm on. •...
  • Page 16: Api Settings

    • Duration (sec): This setting is only available if the reply control mode is on Delay Reset, it represents the time duration when the configure interface status changed. API Settings This page is used to configure the API interface of the device. Through the API interface, you can realize device linkage, call control, relay control, and play sound by using the changing status of the call and/or relay.
  • Page 17: Multicast

    • API Settings Using the API interface to realize features such as device linkage, call control, relay control, and play sound by the systems. Note: Authentication and encryption are not used in the API interface, so please pay attention to the security of the network environment when opening and using these API interfaces.
  • Page 18: Prompt Language

    • Priority: Priority from highest 9 to lowest 1. • Multicast Address: The multicast address range is 224.0.0.0 – 239.255.255.255. • Multicast Port: The multicast port range is 2000 – 65535. • Name: Customize the name of the multicast address. •...
  • Page 19: System Settings

    System Settings Network The ZYCOO network speakers use DHCP to dynamically obtain IP addresses by default. To change the IP assignment from DHCP to Static IP, please go to Settings -> Network Settings page.
  • Page 20: Time

    Turn the DHCP switch button off to show the network parameter settings. Network Configuration Parameters • Access Type: Specify the access method of the website, which currently supports HTTP and HTTPS. • IP Address: Enter a vacant IP address within your LAN. •...
  • Page 21: Upgrade

    You’ll first see the current firmware version of the network speaker and the last upgrade time. Upload the .img file provided by ZYCOO to perform the upgrade action. If you wish to reset the network speaker to factory defaults after upgrading, please enable the “Reset Factory Defaults”...
  • Page 22: Reboot & Reset

    Reboot & Reset The network speakers can be rebooted and reset from the web management interface on the Settings -> Reboot & Reset page. Both reboot and reset actions will terminate all broadcasting and SIP calls (paging). And the reset action will erase all configurations of the network speakers. Please reboot or reset the devices when they are not in use.
  • Page 23: Ethernet Capture

    Ethernet Capture The purpose of the Ethernet capture tool is to capture Ethernet network packets and store them in a standard Wireshark-compatible packet capture “.pacp” file for immediate viewing and data analysis. Import/Export This page is used to import and export the current configuration of the device, and you may use this configuration file to backup and/or recovery.
  • Page 24: Auto Provisioning

    Auto Provisioning The system is supporting DHCP Option 066 and static TFTP/HTTP two auto provisioning methods. When the system starts by default and the network mode is in DHCP, it will try to grab option 066 from the DHCP data as the TFTP server address. If the system couldn't get the option information, it will use the below Static Provisioning Server data to obtain the configuration file.
  • Page 25: Test

    Test The detection feature provides an option for the user to check whether the speaker, microphone and relay will work functionally before registering it to the server. Speaker Detection: Click on the Start button, and the speaker will play a ringtone to test whether the speaker is working.
  • Page 26 @ 2023 Zycoo Co., Ltd. All rights reserved. ZYCOO, NEEQ Code 839487, is the leading developer and manufacturer of IP telephony devices and related systems, devoting itself over the past years to R&D powerful and scalable voice over IP (VoIP) solutions that mainly serve the SMEs market and industry filed.
